ラジアルリード多層セラミックコンデンサ | CCBA
特徴
◆ Industry’s widest range- 0.47pF to 10uF, tolerances to 1%
◆ Space-saving radial leaddesign
◆ COG (NPO法人), X7R, Z5U and Y5V temperature coefficients
◆Tape and reel packaging available
◆ Standard industry sizes
◆ High voltage models available
◆ Cut and formed leads available

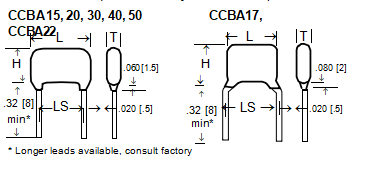

寸法
| Jinpei Type | L Max. | H Max. | T Max. | LS ±.024 [0.6] |
| CCBA15 | .165 [4.2] | .150 [3.81] | .150 [3.81] | .100 [2.5] |
| CCBA17 | .150 [3.81] | .150 [3.81] | .150 [3.81] | .200 [5.0] |
| CCBA20 | .200 [5.08] | .200 [5.08] | .150 [3.81] | .100 [2.5] |
| CCBA22 | .200 [5.08] | .200 [5.08] | .150 [3.81] | .200 [5.0] |
| CCBA30 | .300 [7.62] | .217 [5.5] | .150 [3.80] | .200 [5.0] |
| CCBA40 | .413 [10.5] | .394 [10] | .165 [4.2] | .217 [5.5] |
| * CCBA50 | .492 [12.5] | .433 [11] | .165 [4.2] | .295 [7.5] |
BODY STYLE (additional styles available)
DIELECTRIC CHARACTERISTICS (typical)
| ITEM | (NPO N) | X7R B | Y5V F (Z5U M) 2 |
| キャップ. 範囲, E12 values | 0.47 pF- 0.1μF | 330 pF – 1μF | 1,000 pF -10uF |
| 静電容量耐性 | <10pF: ±.1pF, .25pF, .5pF (std)
³10pF: ±1%, ±2%, ±5%(std), ±10% |
±5%, ±10% (std),
±20% |
±20% (std), +80/- 20% |
| 動作温度範囲 | -55°C to +125°C | -55°C to +125°C | -30°C to +85°C |
| 温度特性 | 0 ± 30ppm/°C 3 | ±15% max over op.temp range | +22%/-82% (+22%/-56%)
max over operating temp range |
| Aging (cap loss/decade hr) | negligible | 2% | 7% |
| Voltage Coef (DC@ max V) | negligible | -50% to+10% typ | -80% to+20% typ |
| 損失係数 (1KHz,25℃) | 0.15% (+25℃ & +125℃)
1.0VRMS, 1MHz for values<1000pF |
2.5% Max., 1VRMS | 4.0% マックス. 0.5 VRMS |
| Insulation Resistance 25°C (MIL-STD-202-METHOD-302) | 100GW or 1000MW-uF whichever is less | 100GW or 1000MW-uF whichever is less | 10GW or 1000MW-uF whichever is less |
| Dielectric Strength | 3x rated VDC | 3x rated VDC | 3x rated VDC |
| 寿命試験 (1000 時間) | 2x rated voltage @+125°C
直流<3% or 0.25pF wig |
2x rated voltage at +125°C
直流<20% |
1.5x rated voltage at +85°C
直流<30% |
静電容量範囲
| Jinpei TYPE | WVDC1 | STANDARD CAPACITANCE RANGE 1 | ||
| (NPO N )
Std. tol. = 5% |
X7R B
Std. tol. = 10% |
Y5V f(Z5U m) 2
Std. tol. = 20% |
||
| CCBA15, CCBA17 | 25
50 100 |
0.47 – 3300pF
0.47 – 2200pF 0.47 – 1000pF |
100pF- 0.22μF
100pF- 0.1μF 100pF- 0.047μF |
.01μF – 1.2μF
.01μF – 1uF 1000pF – 0.1μF |
| CCBA20,
CCBA22 |
25
50 100 |
0.47 – 6800pF
0.47 – 4700pF 0.47 – 3900pF |
100pF- 1μF
100pF- 0.47μF 100pF- 0.1μF |
.01μF – 1.2μF
.01μF – 1μF .01μF – 0.33μF |
|
CCBA30 |
25 | 10 – 10,000pF | 470pF- 1μF | .1μF – 1.5μF |
| 50 | 10 – 6800pF | 470pF – 1μF | .1μF – 1.5μF | |
| 100 | 5 – 4700pF | 100pF – 0.22μF | .1μF – 1.0μF | |
|
CCBA40 |
25 | 10 – 47,000pF | 1000pF – 1μF | .68μF – 4.7μF |
| 50 | 10 -27,000pF | 1000pF – 1μF | .68μF – 3.3μF | |
| 100 | 5 -22,000pF | 100pF – 0.47μF | .68μF – 2.2μF | |
|
CCBA50 |
25 | 1000pF – 0.1μF | .01μF – 2.2μF | 1μF – 10μF |
| 50 | 1000pF- 0.047μF | .01μF – 2.2μF | 1μF – 6.8μF | |
| 100 | 1000pF- 0.033μF | .01μF – 1μF | 1μF – 2.2μF | |
1 Expanded range available, consult factory
2 Y5V is standard, Z5U is avail. (Y5V & Z5U are considered interchangeable)
3 ±60ppm <10pF
導入
High-density multilayer construction enables superior
performance and capacitance range. Proprietary flame retardant
epoxy coating ensures optimum environmental protection and
dielectric strength. 規格外の値, で- creased voltage
ratings, カスタムマーキング, 軍事検査, カット & 形成されたリード,
等, 利用可能です. マッチしたセットやネットワークも利用可能.
