一般的な電解コンデンサ▏85℃2,000〜3,000時間▏CAFB
特徴
85℃, 2000hrs for Dia < 8mm, 3000hrs Dia > 10mm
Standard series for general purpose
Replaces RC, RE & RH Series
85℃, 2000hrs for Dia < 8mm, 3000hrs Dia > 10mm
Standard series for general purpose
Replaces RC, RE & RH Series
仕様
| アイテム | パフォーマンス | |||||||||||||||||||||||||||||
| 動作温度. | -40°C ~ +85°C | |||||||||||||||||||||||||||||
| 静電容量耐性 | ± 20% (120Hz, 20℃) | |||||||||||||||||||||||||||||
|
漏れ電流 (20℃で) |
定格電圧 | < 100v | >100v | |||||||||||||||||||||||||||
| 時間 | 後 2 分 | 後 5 分 | ||||||||||||||||||||||||||||
|
漏れ電流 |
I = 0.01CV または 3 (μA)
どちらか大きい方 |
履歴書 < 1000
I = 0.03CV + 15(μA) |
履歴書 > 1000
I = 0.02CV + 25(μA) |
|||||||||||||||||||||||||||
| Where C = rated capacitance in F. V = rated DC working volatage in V. | ||||||||||||||||||||||||||||||
| 定格電圧 | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 350 | 400 | 450 | ||||||||||||||||
| Dissipation Factor Tanδ
120Hzで, 20℃ |
タンδ (マックス) | 0.23 | 0.20 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | 0.12 | 0.14 | 0.17 | 0.20 | 0.25 | 0.25 | |||||||||||||||
| When the capacitance exceeds 1000μF, 0.02 shall be added for every 1000μF increase. | ||||||||||||||||||||||||||||||
|
低温特性 (120Hzで) |
インピーダンス比は、以下の表に示す値を超えてはなりません. | |||||||||||||||||||||||||||||
| 定格電圧 | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 350 | 400 | 550 | ||||||||||||||||
|
Impedance Radio |
Z(-25℃) | φD<16 | 6 | 4 | 3 | 3 | 2 | 2 | 2 | 2 |
3 |
6 |
8 |
12 |
14 |
16 |
||||||||||||||
| /Z(+20℃) | φD>16 | 8 | 6 | 4 | 4 | 3 | 3 | 3 | 3 | |||||||||||||||||||||
| Z(-40℃) | φD<16 | 10 | 8 | 6 | 6 | 4 | 3 | 3 | 3 | 4 | 8 | 10 | 10 | 10 | 10 | |||||||||||||||
| /Z(+20℃) | φD>16 | 18 | 16 | 12 | 10 | 8 | 8 | 6 | 6 | |||||||||||||||||||||
|
Load Life test at 20°C (after rated voltage is applied at 85°C for 2000 |
試験時間 | 2000時間(3000hrs for φ D > 10mm) |
Shelf Life at 20°C after exposure to 85 のために 1000 hours with |
試験時間 | 1000時間 | |||||||||||||||||||||||||
| 静電容量の変化 | 内で < ±20% of initial value | 静電容量の変化 | 内で < ±20% of initial value | |||||||||||||||||||||||||||
| 損失係数 | 未満 200% of specific value | 損失係数 | 未満 200% of specific value | |||||||||||||||||||||||||||
| / 3000 時間) | 漏れ電流 | 規定値以内 | no voltage | 漏れ電流 | 規定値以内 | |||||||||||||||||||||||||
|
リップル電流 & 周波数逓倍器 |
周波数. (Hz)
キャップ. (μF) |
60
(50) |
120 |
500 |
1k |
10k
上 |
||||||||||||||||||||||||
| 下 100 | 0.70 | 1.00 | 1.30 | 1.40 | 1.50 | |||||||||||||||||||||||||
| 100 に 1000 | 0.75 | 1.00 | 1.20 | 1.30 | 1.35 | |||||||||||||||||||||||||
| 1000 以上 | 0.80 | 1.00 | 1.10 | 1.12 | 1.15 | |||||||||||||||||||||||||
| リップル電流 & 温度乗数 | 温度 (℃) | 下 50 | 70 | 85 | ||||||||||||||||||||||||||
| Mutipliers | 1.78 | 1.4 | 1.00 | |||||||||||||||||||||||||||
| 規格 | JIS Cの特性Wを満足 5141 | |||||||||||||||||||||||||||||
寸法 & 許容リップル電流
リップル電流 :mA/rms at 120Hz, 85℃
| V.DC
µ f コード |
6.3v (オージー) | 10v (1a) | 16v (1c) | 25v (1E) | 35v (1v) | 50v (1h) | 63v (1J) | 100v (2a) | |||||||||
| ΦD x L | Ma | ΦD xL | Ma | ΦD x L | Ma | ΦD x L | Ma | ΦD x L | Ma | ΦD x L | Ma | ΦD x L | Ma | ΦD x L | Ma | ||
| 0.1 | 0R1 | 5 × 11 | 1.5 | 5 × 11 | 3 | 5 × 11 | 3 | ||||||||||
| 0.2 | R22 | 5 × 11 | 3.5 | 5 × 11 | 5 | 5 × 11 | 5.8 | ||||||||||
| 0.3 | R33 | 5 × 11 | 5 | 5 × 11 | 8 | 5 × 11 | 8.8 | ||||||||||
| 0.5 | R47 | 5 × 11 | 7 | 5 × 11 | 10 | 5 × 11 | 12 | ||||||||||
| 1.0 | 10 | 5 × 11 | 15 | 5 × 11 | 17 | 5 × 11 | 22 | ||||||||||
| 2.2 | 2R2 | 5 × 11 | 29 | 5 × 11 | 28 | 5 × 11 | 33 | ||||||||||
| 3.3 | 3R3 | 5 × 11 | 35 | 5 × 11 | 34 | 5 × 11 | 40 | ||||||||||
| 4.7 | 4R7 | 5 × 11 | 31 | 5 × 11 | 40 | 5 × 11 | 42 | 5 × 11 | 45 | 5 × 11 | 48 | ||||||
| 10 | 100 | 5 × 11 | 49 | 5 × 11 | 54 | 5 × 11 | 58 | 5 × 11 | 65 | 5 × 11 | 70 | 5 × 11
6.3 × 11 |
59
80 |
||||
| 22 | 220 | 5 × 11 | 70 | 5 × 11 | 75 | 5 × 11 | 80 | 5 × 11 | 87 | 5 × 11 | 95 | 6.3 × 11 | 115 | 6.3 × 11
8 × 11.5 |
115
135 |
||
| 33 | 330 | 5 × 11 | 72 | 5 × 11 | 84 | 5 × 11 | 90 | 5 × 11 | 97 | 5 × 11
6.3 × 11 |
108
115 |
5 × 11
6.3 × 11 |
136
163 |
6.3 × 11
8 × 11.5 |
140
340 |
8 × 11.5
10 × 16 |
145
195 |
| 47 | 470 | 5 × 11 | 90 | 5 × 11 | 100 | 5 × 11 | 110 | 5 × 11 | 115 | 5 × 11
6.3 × 11 |
130
145 |
6.3 × 11 | 165 | 6.3 × 11
8 × 11.5 |
170
397 |
10 × 13
10 × 16 |
235
255 |
寸法 & 許容リップル電流
リップル電流 :mA/rms at 120Hz, 85℃
* = フラット (非通気) ゴム栓.
Other units are made with raised (通気された) ゴム栓
.
部品番号の例
CAFB 471 m 1c BK 100 125
リード線の間隔と直径
| φD | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 | 22 | 25 |
| P | 2.0 | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 | 10 | 12.5 |
| φd | 0.5 | 0.6 | 0.8 | 1.0 | |||||
| ある | 1.0 | 1.5 | 2.0 | ||||||
| b | 0.5 | ||||||||
HOW TO MAKE a 一部 番号
- シリーズ:CAFB
- キャパシタンス: Rated capacitance in µF is represented by a three digit number. The first two digits are the significant figures of the nominalcapacitance and the third digit indicates the number of zeros following these The decimal point is represented by the capital letter R. Please refer to the following example.
μF 0.1 0.47 1 4.7 10 47 100 470 1000 4700 10000 部品番号 0R1 R47 010 4R7 100 470 101 471 102 472 103 - 許容範囲: (20% ISTypical)
コード k m T w 許容範囲 + 10% + 20% + 50% /-10% + 100% /-10% - 定格電圧: Voltage in volts (v) is represented by a two digit code showing the rated working voltage indicated asfollows:
電圧 (ウェストバージニア州) 6.3 10 16 25 35 40 50 63 80 100 160 200 250 350 400 450 コード 0J 1a 1c 1E 1v 1g 1h 1J 1k 2a 2c 2d 2E 2v 2g 2w - Lead Forming &Package
コード Lead Description 包装 BC Bending Cut Bulk Packing BK Straight Lead Bulk Packing CC Lead Cutting Bulk Packing FC Lead Forming & Cutting Bulk Packing FF Lead Forming Bulk Packing SC スナップイン & Cutting Bulk Packing SD Cathode Lead Beading Bulk Packing SF スナップイン, Forming & Cutting Bulk Packing SA Straight Lead Tape & 弾薬 TA Lead Forming Tape & 弾薬 SR Straight Lead Tape & リール TR Lead Forming Tape & リール
- CanSize
Diameter (mm)x10 & Length (mm)x10. Can Size 063110, represents 6.3mm diameter by 11mm length.
- Wire and SleeveType*
= (Omit) Lead (Pb) Free Wire & PVC Sleeve
`P = Lead (Pb) Free Wire & PET Sleeve
*注記: All standard RFE Aluminum Electrolytic Capacitors are Lead (Pb) free and RoHS compliant. PET sleeve is available for those companies
that also require PVC free product.
LEADED TAPING & PACKAGING SPECIFICATIONS

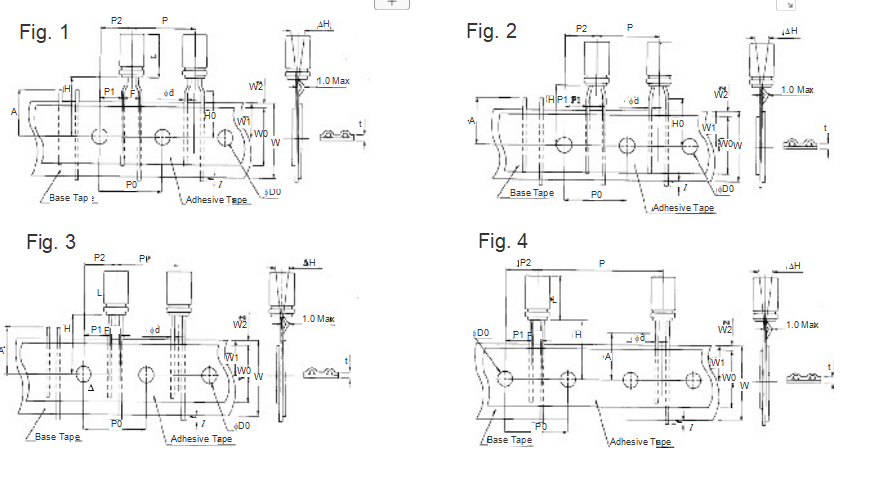

Taping Specification for Radial Lead Type
| パッキング | TA,TR (Fig. 1) | SA, SR (Fig. 2, 3, 4) | ||||||||||||||||||
| l | L ≤ 7mm | L ≥ 7mm | L ≤ 7mm | L ≥ 7mm | ||||||||||||||||
| fD
Symbol |
f 3 |
f 4 |
f 5 |
f6.3 |
f 8 |
f 5 |
f 6.3 |
f 8 |
f 3 |
f 4 |
f 5 |
f 6.3 |
f 8 |
f 5 |
f 6.3 |
f 8 |
トール. |
f 10 |
f 13 |
トール. |
| fd | 0.4 | 0.45 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.6 | 0.4 | 0.45 | 0.45 | 0.45 | 0.45 | 0.5 | 0.5 | 0.6 | ± 0.05 | 0.6 | 0.6 | ± 0.05 |
| f | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 2.5 | 2.5 | 2.5 | 2.5 | 3.5 | 2.5 | 2.5 | 3.5 | -0.2/+0.8 | 5.0 | 5.0 | -0.2/+0.8 |
| P | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | ± 1.0 | 12.7 | 25.4 | ± 1.0 |
| P0 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | ± 0.2 | 12.7 | 12.7 | ± 0.30 |
| P2 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 | ± 1.0 | 6.35 | 6.35 | ± 1.3 |
| P1 | 3.85 | 3.85 | 3.85 | 3.85 | 3.85 | 3.85 | 3.85 | 3.85 | 5.1 | 5.1 | 5.1 | 5.1 | 4.6 | 5.1 | 5.1 | 4.6 | ± 0.5 | 3.85 | 3.85 | ± 0.7 |
| h | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 18.5 | 18.5 | 20.0 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 18.5 | 18.5 | 18.5 | ± 0.75 | 18.5 | 18.5 | ± 0.75 |
| H0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 | — | — | — | — | — | — | — | — | ± 0.5 | — | — | ± 0.5 |
| w | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | 18.0 | ± 0.5 | 18.0 | 18.0 | ± 0.5 |
| W0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 分 | 12.0 | 12.0 | 分. |
| W1 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | ± 0.5 | 9.0 | 9.0 | ± 0.5 |
| W2 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | マックス. | 1.5 | 1.5 | マックス. |
| f D0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | ± 0.2 | 4.0 | 4.0 | ± 0.2 |
| t | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | ± 0.2 | 0.7 | 0.7 | ± 0.2 |
| h | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ± 1.0 | 0 | 0 | ± 1.0 |
| l | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | マックス. | 1.0 | 1.0 | マックス. |
| a | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | マックス. | 11 | 11 | マックス. |
| Fig. いいえ. | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 2 | 3 | 3 | 3 | 3,4 | ||

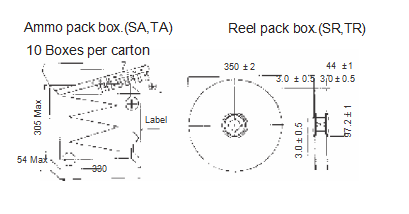

Packaging Quantity
| d | 3 | 4 | 5 | 6.3 | 8 | 10 | 13 |
| TA, SA | 3000 | 2000 | 2000 | 2000 | 1000 | 500 | 250 |
| TR,SR | 3000 | 1500 | 1200 | 1000 | 800 | 500 | 500 |
NOTES:
- The above quantities are typical. Quantities may
- The component will be oriented on the tape so that the positive lead is leading or the negative lead is leading, depending on the customer’srequest
特徴
◆ 2000hrs(3000hrs for φ D > 10mm) assured
◆ スリムタイプ
◆Rohs準拠
