JINPEI CJAF type intelligent integrated low-voltage filtering capacitor is designed for situations where the power grids have certain harmonic content, but the common type power capacitor is failed to run normally, その主な特徴は次のとおりです:
1.高品質タイプの低圧コンデンサ, オイルフリー設計, 高い安全性;
2.ノーサージ切替スイッチの採用, 先進的な技術で, 安定した信頼できるパフォーマンス; 3.特殊な技術とプロセスを採用,高次高調波とサージを効果的に抑制,次数高調波の抑制に明らかな効果がある 3, 5, 7, 9 以上;
4.モジュール構造, 柔軟な組み合わせ, 便利な容量拡張, 簡単な取り付け, メンテナンスに便利;
5.インテリジェントネットワーク, 485 通信インターフェース,バックステージコンピューターで切り替えることができます, 物流の一元管理を行うため;
6.分散制御モードの採用, 200,000 障害のないスイッチングの回数, 高い信頼性を備えた; 7.人間化されたマンマシンインターフェース, 簡単な操作, 便利なメンテナンス, 現場での故障撮影に便利です;
8.内部にSH防爆装置と温度制御装置を搭載, 高調波の厳しい場所での走行信頼性を向上させます。;
9.優れた省エネ効率, 力率を効果的に増加させます, 電力消費量を削減し、電力エネルギーの品質を向上させます。.
ZMZ-J type intelligent integrated low-voltage filtering capacitor is mainly applied to locations where the harmonic current is 40% 下に (周波数変換器など, およびその他の機器), it not only
meets the requirements of reactive compensation and improving power factor, システムへの高次高調波の影響も排除します, 電気の品質を改善します.

Product Function Filtering

It effectively suppresses high-order harmonic and surge, forms low-resistance channel for high-order harmonic. It absorbs and releases the harmonic, eliminates influence of high-order harmonic to the capacitor, protects circuits and capacitors from overload, prevents capacitors from superheating, insulating medium from aging, avoids reduction of self healing performance, or reduction of service life.

No-surge switching

Matched with special capacitor switching switch, no switching surge.

Split-phase compensation

Capacitor of each phase of separate-phase compensation type product can be switched separately, which improves the reactive compensating accuracy, enables the three-phase reactive unbalance to be well compensated.

Measurement

Measurement of distribution voltage, 現在, reactive power, power factor; automatic measurement and correction of CT phase and change; measurement of three-phase current and inside temperature of each capacitor.

Protection

Quick current switching and over-current protection of circuit; over-voltage and under-voltage protection of capacitor; over-temperature, open-phase and three-phase unbalance protection of capacitor, when the temperature of capacitor exceed 65℃, the whole machine of capacitor would exit operation, which improves its service life, and guarantees safety running of system.

Signal

Switching state, over, under and compensation state, over and under-voltage state signals; protection operation type and self-diagnose fault type signals.

Communication

Adoption of RS-485 communication coupling between capacitor and controller, which is convenient for uploading of mass of sampling data as well as information exchanging with external monitor terminal, forms system work.

Online

Functions of wire network communication and radio network communication.

Intelligent network control

It is able to detect and track the reactive variation of system automatically, and switch in capacitor bank automatically. Carry out switching circularly for capacitors with same capacitance, and carry out switching according to the vacancy for capacitors with different capacitance. The capacitor that is switched in earlier should exit first,that exits earlier should be switched in first; capacitor whose running temperature is lower should be switched in first, whose running temperature is higher should exit first; when the compensation situation is stable, the capacitors should be switched in circularly every fifteen minutes, avoid long time running of any one capacitor.

Self-diagnose of faults

Intelligent control element of capacitor will carry out self-diagnose to the running parameters of the body, once there is self-inspection fault, the whole machine responses quickly and exit running.

Main Technical Parameters Ambient conditions

周囲温度: -25～55℃; 相対温度: 40℃, 20～90%; 高度: ≤2000m.

電源供給条件 定格電圧: -220V/～380V; 電圧偏差: ±20%;

電圧波形: 正弦波, 合計歪み率を超えないこと 7%; 定格周波数: 50Hz±5%;

消費電力: ＜2W.

電気的安全性

電気的クリアランス, 沿面距離, 絶縁強度, 安全保護, short-circuit strength, sampling and control circuit protection should all be

in conformity with the corresponding clauses of standard DL/T842-2003 Ordering specification for low- voltage shunt capacitor installation.

測定誤差

電圧: ≤0.5% (定格電圧の80～120％以内); 現在: 1%以下 (定格電流の5%～20%以内), 力率: ±1.5%;

温度: ±1℃. 保護エラー

電圧: ≤0.5%; 現在: 1%以下;

温度: ±1℃. 時間: ±0.01秒.

リアクティブ補償パラメータ

コンデンサのスイッチング間隔: ＞10代(110代〜10代のカスタマイズ);

無効容量: 共通補償≤40kvar, 別途補償≤20kvar;

オンライン数量: ≤120pcs.

信頼性

制御精度: 100%;

許容スイッチング時間: 100,000 回;

コンデンサ容量の走行時間減衰率: ≤1%/年;

コンデンサ容量のスイッチング減衰率: ≤0.1%/1万回; 年間故障率: 1%以下.

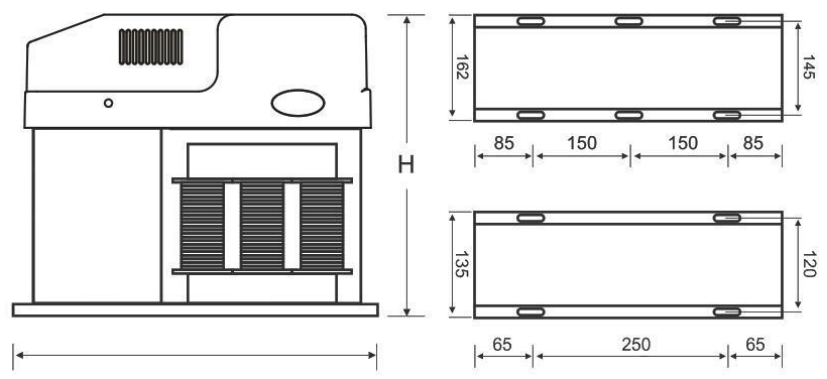

External And Installation Size

導入
JINPEI CJAF type intelligent integrated low-voltage filtering capacitor is designed for situations where the power grids have certain harmonic content, but the common type power capacitor is failed to run normally
