Snap in electrolytic capacitors ▏flame retardant ▏105 ℃ 2,000hrs ▏caxb

Features
Habet frangeretur-in termino, qui potest solidari ad PCB directe
Apta electronic instrumento magno ambitus intentione.
Typis circuit tabulam terminalem snap-in typo et lug terminalis typus praesto.
Meets UL 94V-0 Flammability
Radius obsequium

Datasheet-Nam-Snap-In Electrolytic-Capacitors-▏Flame-Retardant-▏105℃-2000Hrs-CAXB.pdf (4449 download )

Cubits

PRAECIPUUS	Performatio
	BOX							CAXB
Operating temperatus rhoncus	-25° C +85 N ° C							-25 CV ° C ° CV
Capacitance tolerantia	+20% (ad 120hz, 20N ° C)							+20% (ad 120hz,20N ° C)
Leakage Current (ad XX ° C)	1= 3ûCV or 1.5 mA uter sit minor (post 5minutes) Ubi C = aestimavit capacitas inµF V=d æstimáta DC voltátio in V .
Dissipatio factor (Tan at 120Hz, 20N ° C)	Rated voltage (V)					400	450	400	450
	Tan (max)					0.15	0.25	0.25	0.25
Humilis temperatus characteres (ad 120hz)	IMMUSTANTIA RATIO non excedat values dedit in mensa infra.
	Rated voltage (V)					400	450	400	450
	IMMUSTANTIA RATIO	Z(-25N ° C) / Z(+20 N ° C)				8	12	12	12
Lond Vita Test
	Test Tempus		2,000 Hrs
	Capacitance Mutare		Intus +20% de valore
	Dissipatio factor		Minus quam 200% de certa pretii
	Leakage Current		Intra certa valore
	* Specificationes praedictae satisfacient cum capacitores ad XX°C restituuntur post intentionem æstimantis currentis applicari 2,000 hrs ad 85° F/ 105°C.
PLUTEUM Vita Test	Test Tempus		1,000 Hrs
	Capacitance Mutare		Intus +20% de initial valorem
	Dissipatio factor		Minus quam 150% de certa pretii
	Leakage Current		Intra certa valore
	* Quod super specifications erit saturabitur, cum capacitoribus redduntur ad XX ° C post exponendo eos in 1,000 hrs ad * 85 °C/ 105 ° Sine voltage applicata. Ratio aestimata applicabitur capacitoribus ante mensuras (Refer ad JIS C 5102).
Ripple Current & Frequency multiplici	Freq. (HZ) WV	60	120	500	1k	10k up
	400 ~ 450	0.8	1.0	1.05	1.10	1.15
Ripple Current & Temperatus multipliers	Temperamentum (N ° C)	40	60	70	85	105		Temperamentum (N ° C)	40	60	70	85	105
	Multiplicatio	1.8	1.4	1.2	1.0	1.0		Multiplicatio	2.5	2.2	2.0	1.8	1.0
Signa	Jis c 5101-4

IN TERMINAL-TYPE Snap – CAXB

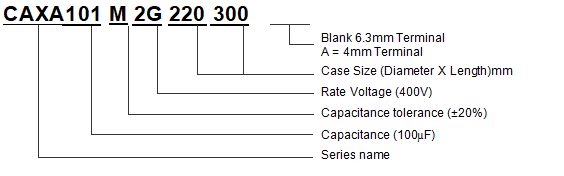

Part Number Exemplum

Dimensiones & Permissable Ripple Current

Dimensio: Dxl (mm); Ripple Current: A/rMS at 120 Hz 85°C (LV) / 105N ° C (LVG)

	V.DC	CAXA Series				CAXB Series
UF		400V (2G)		450V (2W)		400V (2G)		450V (2W)
UF		Magnitudo	MA	Magnitudo	MA	Magnitudo	MA	Magnitudo	MA
47	470							22 X 25	0.42
56	560			20 X 25	0.58			22 X 30	0.51
56	560							25 X 25	0.50
68	680	20 X 25	0.71	20 X 30	0.67	22 X 25	0.34	22 X 35	0.61
68	680			22 X 25	0.68			25 X 30	0.59
82	820	20 X 30	0.78	20 X 35	0.76	22 X 30	0.58	22 X 35	0.67
		22 X 25	0.80	22 X 30	0.82			25 X 30	0.65
								30 X 25	0.62
100	101	20 X 30	0.90	20 X 35	0.84	22 X 30	0.64	22 X 40	0.78
		22 X 30	0.94	22 X 35	0.90	25 X 25	0.64	25 X 35	0.76
				25 X 25	0.92			30 X 25	0.69
120	121	20 X 35	1.02	20 X 40	0.94	22 X 35	0.67	22 X 45	0.9
		22 X 30	1.04	22 X 35	1.02	25 X 30	0.69	25 X 40	0.89
		25 X 25	1.08	25 X 30	1.04	30 X 25	0.76	30 X 30	0.81
				30 X 25	1.07			35 X 25	0.72
150	151	20 X 40	1.16	22 X 45	1.12	22 X 40	0.77	25 X 45	1.04
		22 X 35	1.18	25 X 35	1.19	25 X 35	0.78	30 X 35	0.97
		25 X 30	1.21	30 X 30	1.23	30 X 30	0.76	35 X 30	0.86
180	181	22 X 40	1.34	22 X 50	1.26	22 X 45	0.92	25 X 50	1.20
		25 X 35	1.37	25 X 40	1.33	25 X 40	0.81
		30 X 25	1.45	30 X 30	1.38	30 X 30	0.82
						35 X 25	0.90
220	221	22 X 45	1.50	25 X 45	1.51	25 X 45	0.93	30 X 40	1.12
		25 X 35	1.56	30 X 35	1.69	30 X 35	0.91	30 X 45	1.30
		30 X 30	1.58	35 X 30	1.71	35 X 30	1.08	35 X 35	1.00
				30 X 40	1.72			35 X 35	1.11
270	271	25 X 45	1.70	25 X 50	1.65	25 X 50	1.21	30 X 50	1.51
		30 X 35	1.73	30 X 40	1.80	30 X 40	1.10	35 X 45	1.36
				35 X 35	1.81	35 X 35	1.12
330	331	25 X 50	1.90	30 X 40	1.85	30 X 45	1.39	35 X 50	1.58
		30 X 40	1.97	35 X 35	2.05	35 X 35	1.18
		35 X 30	1.95	30 X 45	2.02
390	391	30 X 40	2.15	30 X 50	2.24	30 X 50	1.55
390	391	35 X 35	2.17			35 X 40	1.27
470	471	30 X 50	2.39	35 X 40	2.27	35 X 45	1.62
470	471	35 X 40	2.42
560	561	35 X 45	2.71	35 X 45	2.55
680	681	35 X 50	2.95	35 X 50	2.60
