SMD Aluminum Electrolytic Capacitors 105℃ Long Life CAJA
Features
105N ° C, 3000 Horas.
Radius obsequium
105N ° C, 3000 Horas.
Radius obsequium
Cubits
| Item | Performatio | ||||||||||
| Operating temp. Range | -40° C + 105N ° C | ||||||||||
| Capacitance tolerantia | ± 20% (120HZ, 20N ° C) | ||||||||||
| Leakage Current (ad XX • c) | I = 0.01CV vel 3µA (Quicquid est maior) post 2 minuta, where C=rated capacitance in µF and V= rated working voltage | ||||||||||
| Dissipatio factor
Tanδ ad 120 HZ, 20N ° C |
Rated voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | ||||
| Tanδ (max) | 0.30 | 0.26 | 0.20 | 0.16 | 0.13 | 0.12 | |||||
|
Humilis temperatus characteres (ad 120hz) |
Rated voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | ||||
| IMMUSTANTIA RATIO
Maximum |
Z(-25N ° C) /Z(+20N ° C) | 4 | 3 | 2 | 2 | 2 | 2 | ||||
| Z(-40N ° C) /Z(+20N ° C) | 10 | 7 | 5 | 3 | 3 | 3 | |||||
|
Vita Test |
Test Tempus |
Load Life Shelf Life | |||||||||
| 3000 Hrs | 1000 Hrs | ||||||||||
| Capacitance Mutare | Within ±30% of initial value | Intus ± 20% de initial valorem | |||||||||
| Dissipatio factor | Minus quam 200% de certa pretii | Minus quam 200% de certa pretii | |||||||||
| Leakage Current | Intra certa valore | Intra certa valore | |||||||||
| Test condiciones | 20N ° C (Post rated voltage applicari 3000 ad horas
105N ° C |
20N ° C (Postquam repono pro 1000 horas ad CV ° C *
absque intentione) |
|||||||||
| Ripple Current & Frequency multilpiers | VDC(V) Freq. (HZ) | 50 | 120 | 1K | 10K usque | ||||||
| 6.3 ~ 50 | 0.70 | 1.00 | 1.36 | 1.50 | |||||||
| Signa | Jis c 5101-1-18 | ||||||||||
Dimensio & Licentiosus Rippele Current
Dimensio: φD x L (mm)
Ripple Current MA / RMS ad 120 HZ, 105N ° C
| VDC
μf Contenta |
6.3 (0J) | 10 (1A) | 16 (1C) | 25V (1E) | 35V (1V) | 50V (1H) | |||||||
| φD x L | MA | φD x L | MA | φD x L | MA | φD x L | MA | φD x L | MA | φD x L | MA | ||
| 0.1 | 0R1 | 4 X 5.7 | 1 | ||||||||||
| 0.22 | R22 | 4 X 5.7 | 2.6 | ||||||||||
| 0.33 | R33 | 4 X 5.7 | 3.2 | ||||||||||
| 0.47 | R47 | 4 X 5.7 | 5 | ||||||||||
| 1 | 010 | 4 X 5.7 | 8 | ||||||||||
| 2.2 | 2R2 | 4 X 5.7 | 12 | ||||||||||
| 3.3 | 3R3 | 4 X 5.7 | 17 | ||||||||||
| 4.7 | 4R7 | 4 X 5.7 | 16 | 5 X 5.7 | 22 | ||||||||
| 10 | 100 | 4 X 5.7 | 18 | 5 X 5.7 | 27 | 5 X 5.7 | 27 | 6.3 X 5.7 | 32 | ||||
| 22 | 220 | 4 X 5.7 | 22 | 5 X 5.7 | 30 | 5 X 5.7 | 30 | 6.3 X 5.7 | 44 | 6.3 X 5.7 | 44 | 6.3 X 7.7 | 58 |
| 33 | 330 | 5 X 5.7 | 35 | 5 X 5.7 | 35 | 6.3 X 5.7 | 48 | 6.3 X 5.7 | 50 | 6.3 X 7.7 | 57 | 8 X 10 | 140 |
| 47 | 470 | 5 X 5.7 | 38 | 6.3 X 5.7 | 50 | 6.3 X 5.7 | 50 | 6.3 X 7.7 | 63 | 8 X 10 | 92 | 8 X 10 | 170 |
| 100 | 101 | 6.3 X 5.7 | 69 | 6.3 X 7.7 | 81 | 6.3 X 7.7 | 81 | 8 X 10 | 116 | 10 X 10 | 151 | 10 X 10 | 310 |
| 220 | 221 | 6.3 X 7.7 | 120 | 8 X 10 | 141 | 10 X 10 | 216 | 10 X 10 | 320 | 10 X 10 | 375 | ||
| 330 | 331 | 8 X 10 | 290 | 10 X 10 | 290 | 10 X 10 | 290 | 10 X 10 | 450 | ||||
| 470 | 471 | 10 X 10 | 320 | 10 X 10 | 320 | 10 X 10 | 320 | ||||||
| 1000 | 102 | 10 X 10 | 410 | ||||||||||

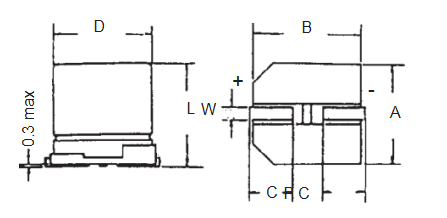

Pad spacing diameter
| ΦD ± 0.5 | L | A ± 0.2 | B ± 0,2 | C ± 0.2 | W | P ± 0,2 |
| 4 | 5.7±0.3 | 4.3 | 4.3 | 2.0 | 0.5 ut 0.8 | 1.0 |
| 5 | 5.7±0.3 | 5.3 | 5.3 | 2.3 | 0.5 ut 0.8 | 1.5 |
| 6.3 | 5.7±0.3 | 6.6 | 6.6 | 2.7 | 0.5 ut 0.8 | 2.0 |
| 6.3 | 7.7±0.3 | 6.6 | 6.6 | 2.7 | 0.5 ut 0.8 | 2.0 |
| 8 | 10±0.5 | 8.4 | 8.4 | 3.0 | 0.7 ut 1.1 | 3.1 |
| 10 | 10±0.5 | 10.4 | 10.4 | 3.3 | 0.7 ut 1.1 | 4.7 |
Part Number Exemplum
CAJA 100 M 1E TRE 050 057
