SMD aluminium electrolytic capacitors ▏105 ℃ ℃ultra humilis ESR ▏CAHC

Features
105N ° C, 2000 ~ 5000 Horas
Ultra Low Impedance Capacitors
Radius obsequium

Datasheet-For-SMD-Aluminum-Electrolytic-Capacitors-▏105℃-▏Ultra-Low-ESR-▏CAHC.pdf (3614 download )

Cubits

PRAECIPUUS	Performatio
Operating temperatus rhoncus	6.3 ~ 63V								80 ~ 100V
	-55CV ° C ° CV								-40CV ° C ° CV
Capacitance tolerantia	+20%
Leakage Current (ad XX ° C)	I = 0,01cv vel 3 (μa) Quicquid est maior (post 2 minuta) Ubi, C= rated capacitance in µ F. V= rated DC working voltage inV.
Dissipatio factor (Tanδ at 120Hz, 20N ° C)	Rated Voltage	6.3	10	16	25	35	50	63	80	100
	Tanδ (max)	0.30	0.26	0.22	0.16	0.13	0.10	0.08	0.08	0.07
Humilis temperatus characteres (ad 120hz)	IMMUSTANTIA RATIO non excedat values dedit in mensa infra.
	Rated voltage				6.3	10	16	25	35	50	63	80	100
	Impedimentum Ratio	Z (-25N ° C)/Z(+20N ° C)			4	3	2	2	2	2	2	2	2
		Z(-40N ° C)/Z(+20N ° C)			8	5	4	3	3	3	3	3	3
Lond Vita Test	Test Tempus		2,000 Hrs for 4 ~ 6.3Φ					3,000 Hrs for 8 ~ 10Φ						5,000 Hrs for 12.5 ~ -16Φ
	Capacitance Mutare		Intus +25% de initial valorem					Intus +30% de initial valorem						Intus +30% de initial valorem
	Dissipatio factor		Minus quam 200% de certa pretii					Minus quam 300% de certa pretii						Minus quam 300% de certa pretii
	Leakage Current		Intra certa valore					Intra certa valore						Intra certa valore
	* Specificationes praedictae satisfiat, cum capaci- tores ad 20°C restituantur post intentionem aestimatam applicatae 2,000 ~ 5,000 HRS at CV ° C
PLUTEUM Vita Test	Test Tempus: 1000 hrs; cetera eadem sunt quae ad onus vitae test
Ripple Current & Frequency multiplici	Freq. (HZ) V.DC (V)	50, 60	120	1k	1k up
	6.3 ~ 100	0.64	0.8	0.93	1.0
Signa	Jis c 5101-1

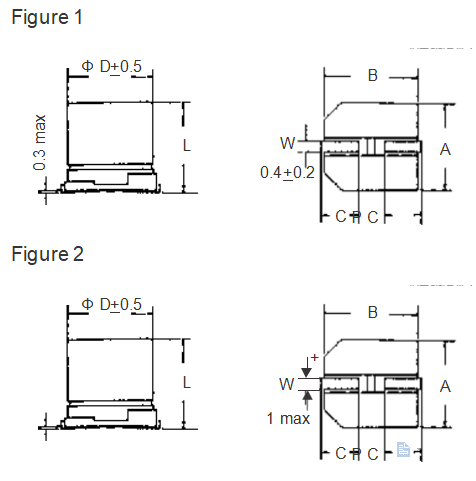

Pad spacing diameter

φd	L	A ±0.2	B ±0.2	C ±0.2	W	P±0.2	Fig. No.
4	5.7 ± 0.3	4.3	4.3	2.0	0.5 ut 0.8	1.0	1
5	5.7 ± 0.3	5.3	5.3	2.3	0.5 ut 0.8	1.5	1
6.3	5.7 ± 3.3	6.3	6.3	2.7	0.5 ut 0.8	2.0	1
6.3	7.7 ± 0.3	6.6	6.6	2.7	0.5 ut 0.8	2.0	1
8	10 ± 0.5	8.4	8.4	3.0	0.7 ut 1.1	3.1	1
10	10 ± 0.5	10.4	10.4	3.3	0.7 ut 1.1	4.7	1
12.5	13.5 ± 0.5	12.8	12.8	4.9	1.1 ut 1.4	4.2	2
12.5	16 ± 0.5	12.8	12.8	4.9	1.1 ut 1.4	4.2	2
16	16.5 ± 0.5	16.3	16.3	5.8	1.8 ut 2.2	6.0	2

Part Number Exemplum

CAHC 101 MI V TRE 080100

Dimensio, IMPEDANCE & LICET CRISPICO current

Dimensio : φD x L(mm)

Ripple Current mA/rms at 100KHz, 105°C Impedance : at 100KHz, 20ºC

V.DC mF Contenta		6.3V (0J)			10V (1A)			16V (1C)			25V (1E)			35V (1V)
V.DC mF Contenta		ΦD x L	MA	Imp.	ΦD x L	MA	Imp.	ΦD x L	MA	Imp.	ΦD x L	MA	Imp.	ΦD x L	MA	Imp.
4.7	4R7													4 X 5.7	80	1.35
10	100							4 X 5.7	80	1.35	4 X 5.7	80	1.35	5 X 5.7	150	0.80
22	220	4 X 5.7	80	1.35	4 X 5.7	80	1.35	5 X 5.7	150	0.80	5 X 5.7	150	0.80	6.3 X 5.7	230	0.44
33	330	4 X 5.7	80	1.35	5 X 5.7	150	0.80	6.3 X 5.7	230	0.44	6.3 X 5.7	230	0.44	6.3 X 5.7	230	0.44
47	470	5 X 5.7	150	0.80	6.3 X 5.7	230	0.44	6.3 X 5.7	230	0.44	6.3 X 5.7	230	0.44	6.3 X 5.7	230	0.44
100	101	6.3 X 5.7	230	0.44	6.3 X 5.7	230	0.44	6.3 X 5.7	230	0.44	6.3 X 7.7	280	0.36	8 X 10	450	0.17
150	151	6.3 X 5.7	230	0.44	6.3 X 5.7	230	0.44	6.3 X 7.7	280	0.36	8 X 10	450	0.17	8 X 10	450	0.17
220	221	6.3 X 7.7	280	0.36	6.3 X 7.7	280	0.36	6.3 X 7.7	280	0.36	8 X 10	450	0.17	10 X 10	670	0.09
330	331	8 X 10	450	0.17	8 X 10	450	0.17	8 X 10	450	0.17	8 X 10	450	0.17	12.5 X 13.5	820	0.07
470	471	8 X 10	450	0.17	8 X 10	450	0.17	8 X 10	450	0.17	10 X 10	670	0.09	12.5 X 16	950	0.06
680	681	8 X 10	450	0.17	10 X 10	670	0.09	10 X 10	670	0.09	12.5 X 13.5	820	0.07	12.5 X 16	950	0.06
1,000	102	8 X 10	450	0.17	10 X 10	670	0.09	12.5 X 13.5	820	0.07	12.5 X 16	950	0.06	16 X 16.5	1,260	0.054
1,500	152	10 X 10	670	0.09	13 X 13.5	820	0.07	12.5 X 16	950	0.06	16 X 16.5	1,260	0.054
2,200	222	12.5 X 14	820	0.07	13 X 16	950	0.06	16 X 16.5	1,260	0.054	16 X 16.5	1,260	0.054
3,300	332	12.5 X 16	950	0.06	16 X 16.5	1,260	0.054	16 X 16.5	1,260	0.054
4,700	472	16 X 17	1,260	0.054	16 X 16.5	1,260	0.054

V.DC mF Contenta		50V (1H)			63V (1J)			80V (1K)			100V (2A)
V.DC mF Contenta		Φ D xL	MA	Imp.	Φ D x L	MA	Imp.	ΦD x L	MA	Imp.	ΦD x L	MA	Imp.
1	010	4 X 5.7	60	2.9
2.2	2R2	4 X 5.7	60	2.9
3.3	3R3	4 X 5.7	60	2.9
4.7	4R7	5 X 5.7	85	1.52	5 X 5.7	85	1.52
10	100	6.3 X 5.7	165	0.88	6.3 X 5.7	165	0.88
22	220	6.3 X 5.7	165	0.88	6.3 X 7.7	185	0.68
33	330	6.3 X 7.7	185	0.68	8 X 10	369	0.34
47	470	6.3 X 7.7	185	0.68	8 X 10	369	0.34				10 X 10	200	0.7
68	680	8 X 10	369	0.34	10 X 10	553	0.18	10 X 10	200	0.7	12.5 X 13.5	450	0.32
100	101	8 X 10	369	0.34	10 X 10	553	0.18	12.5 X 13.5	450	0.32	12.5 X 16	550	0.26
150	151	10 X 10	553	0.18	12.5 X 13.5	650	0.12	12.5 X 13.5	450	0.32	16 X 16.5	650	0.17
220	221	10 X 10	553	0.18	12.5 X 13.5	650	0.12	12.5 X 16	550	0.26
330	331	12.5 X 13.5	650	0.12	16 X 16.5	900	0.082	16 X 16.5	650	0.17
470	471	16 X 16.5	900	0.082	16 X 16.5	900	0.082
680	681	16 X 16.5	900	0.082

Features

◆ CV ° C, 2000 ~ 5000 Horas
◆ Ultra Low Impedance Capacitors
◆ Rads obsequium
