Metallized Polypropylene film Capacitor | Duplex | CdbBBBB

Features

Maximum humorem resistentia
Rated voltage : 250~2000Vdc(180~700Vac)
Facultate range : 0.00022 ~3.9uF
Flamma retardans epoxy resinae (Obsequium UL 94V-0)
RoHS facilis et plumbi freeterminations
Pro summo dv/dt application

Part Number Exemplum

CARACTERES

PRAECIPUUS	Performatio
Operans intentione dolor	250Vdc ~ 2,000Vdc
Rated temperatus	-40CV ° C ° CV (Derates super LXXXV ° C at 1.25% per ° C *)
Genus climatic	40 / 105 / 56
Capacitance range	0.00022 µF ~ 3.9µF
Capacitance tolerantia	± V% (J), ± X% (K), alia tolerantiae ad petitionem
Dissipatio factor (tan fi		C ≤0.1µF	0.1µF < C ≤ 1.0µF	C > 1.0µF
	1Khz, 20N ° C	0.0003	0.0003	0.0003
	1Khz, 20N ° C	0.0004	0.0006	—
	100Khz, 20N ° C	0.0015	—	—
Nulla resistitur		Mensurata XX° C*, 100Vdc for 1 minute
	Minimum valorem Inter Terminals Cr ≤ 0.33 µF ET ≥ 100,000 MΩ Cr > 0.33 µF ET ≥ 30,000 MΩ • µF Minimum valorem Inter Terminals et Case ET ≥ 30,000 MΩ

RATINGS & Dimensiones (mm)

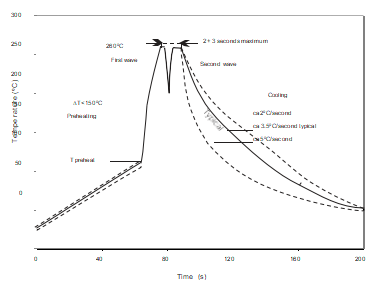

Undo Soldering Commendatione

(μf)	* g Workin Voltage	250Vdc (2E)						400Vdc (2G)						630Vdc (2J)
		180Vac						250Vac						400Vac
	Codex	W	H	T	P	mori	dv/dt	W	H	T	P	mori	dv/dt	W	H	T	P	mori	dv/dt
0.01	103													13.0	11.0	5.0	10.0	0.6	3,000
0.012	123													13.0	11.0	5.0	10.0	0.6	3,000
0.015	153													13.0	12.0	6.0	10.0	0.6	3,000
0.018	183													18.0	11.0	5.0	15.0	0.8	2,500
0.022	223													18.0	11.0	5.0	15.0	0.8	2,500
0.027	273							13.0	11.0	5.0	10.0	0.6	1,400	18.0	11.0	5.0	15.0	0.8	2,500
0.033	333							13.0	11.0	5.0	10.0	0.6	1,400	18.0	12.0	6.0	15.0	0.8	2,500
0.039	393							13.0	12.0	6.0	10.0	0.6	1,400	18.0	12.0	6.0	15.0	0.8	2,500
0.047	473	13.0	11.0	5.0	10.0	0.6	1,000	18.0	11.0	5.0	15.0	0.8	1,000	18.0	12.0	6.0	15.0	0.8	2,500
0.056	563	13.0	11.0	5.0	10.0	0.6	1,000	18.0	11.0	5.0	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.068	683	13.0	12.0	6.0	10.0	0.6	1,000	18.0	12.0	6.0	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.082	823	18.0	11.0	5.0	15.0	0.8	600	18.0	12.0	6.0	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.1	104	18.0	11.0	5.0	15.0	0.8	600	18.0	13.5	7.5	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.12	124	18.0	12.0	6.0	15.0	0.8	600	18.0	13.5	7.5	15.0	0.8	1,000	26.5	16.0	7.0	22.5	0.8	1,800
0.15	154	18.0	12.0	6.0	15.0	0.8	600	26.5	15.0	6.0	22.5	0.8	600	26.5	17.0	8.5	22.5	0.8	1,800
0.18	184	18.0	13.5	7.5	15.0	0.8	600	26.5	15.0	6.0	22.5	0.8	600	32.0	18.0	9.0	27.5	0.8	1,100
0.22	224	18.0	13.5	7.5	15.0	0.8	600	26.5	16.0	7.0	22.5	0.8	600	32.0	18.0	9.0	27.5	0.8	1,100
0.27	274	18.0	14.5	8.5	15.0	0.8	600	26.5	17.0	8.5	22.5	0.8	600	32.0	18.0	9.0	27.5	0.8	1,100
0.33	334	18.0	16.0	10.0	15.0	0.8	600	26.5	17.0	8.5	22.5	0.8	600	32.0	20.0	11.0	27.5	0.8	1,100
0.39	394	26.5	16.0	7.0	22.5	0.8	400	26.5	18.5	10.0	22.5	0.8	600	32.0	20.0	11.0	27.5	0.8	1,100
0.47	474	26.5	16.0	7.0	22.5	0.8	400	32.0	18.0	9.0	27.5	0.8	500	32.0	22.0	13.0	27.5	0.8	1,100
0.56	564	26.5	17.0	8.5	22.5	0.8	400	32.0	20.0	11.0	27.5	0.8	500	32.0	22.0	13.0	27.5	0.8	1,100
0.68	684	26.5	18.5	10.0	22.5	0.8	400	32.0	20.0	11.0	27.5	0.8	500	32.0	24.5	15.0	27.5	0.8	1,100
0.82	824	26.5	18.5	10.0	22.5	0.8	400	32.0	22.0	13.0	27.5	0.8	500	32.0	28.0	14.0	27.5	0.8	1,100
1	105	32.0	20.0	11.0	27.5	0.8	300	32.0	24.5	15.0	27.5	0.8	500	32.0	33.0	18.0	27.5	0.8	1,100
1.2	125	32.0	20.0	11.0	27.5	0.8	300	32.0	24.5	15.0	27.5	0.8	500	32.0	33.0	18.0	27.5	0.8	1,100
1.5	155	32.0	22.0	13.0	27.5	0.8	300	32.0	33.0	18.0	27.5	0.8	500	continue ……
1.8	185	32.0	24.5	15.0	27.5	0.8	300	32.0	33.0	18.0	27.5	0.8	500
2.2	225	32.0	24.5	15.0	27.5	0.8	300
2.7	275	32.0	33.0	18.0	27.5	0.8	300
3.3	335	32.0	33.0	18.0	27.5	0.8	300
3.9	395	32.0	33.0	18.0	27.5	0.8	300

RATINGS & Dimensiones (mm)

( F)	* g Workin Voltage	1000VDC(3A)						1600Vdc (3C)						2000Vdc (3D)
		600Vac						650Vac						700Vac
	Codex	W	H	T	P	mori	dv/dt	W	H	T	P	mori	dv/dt	W	H	T	P	mori	dv/dt
0.00022	221													18.0	11.0	5.0	15.0	0.8	10,000
0.00027	271													18.0	11.0	5.0	15.0	0.8	10,000
0.00033	331													18.0	11.0	5.0	15.0	0.8	10,000
0.00047	471													18.0	11.0	5.0	15.0	0.8	10,000
0.00056	561													18.0	11.0	5.0	15.0	0.8	10,000
0.00068	681							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.00082	821							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.001	102							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0012	122							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0015	152							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0018	182							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0022	222							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0027	272							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0033	332							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0039	392	13.0	11.0	5.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0047	472	13.0	11.0	5.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0056	562	13.0	12.0	6.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	13.5	7.5	15.0	0.8	10,000
0.0068	682	13.0	12.0	6.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	13.5	7.5	15.0	0.8	10,000
0.0082	822	18.0	11.0	5.0	15.0	0.8	3,300	18.0	12.0	6.0	15.0	0.8	6,000	26.5	15.0	6.0	22.5	0.8	5,000
0.01	103	18.0	11.0	5.0	15.0	0.8	3,300	18.0	12.0	6.0	15.0	0.8	6,000	26.5	15.0	6.0	22.5	0.8	5,000
0.012	123	18.0	11.0	5.0	15.0	0.8	3,300	18.0	13.5	7.5	15.0	0.8	6,000	26.5	15.0	6.0	22.5	0.8	5,000
0.015	153	18.0	11.0	5.0	15.0	0.8	3,300	18.0	13.5	7.5	15.0	0.8	6,000	26.5	16.0	7.0	22.5	0.8	5,000
0.018	183	18.0	13.5	7.5	15.0	0.8	3,300	18.0	14.5	8.5	15.0	0.8	6,000	26.5	16.0	7.0	22.5	0.8	5,000
0.022	223	18.0	13.5	7.5	15.0	0.8	3,300	18.0	14.5	8.5	15.0	0.8	6,000	26.5	17.0	8.5	22.5	0.8	5,000
0.027	273	18.0	14.5	8.5	15.0	0.8	3,300	26.5	15.0	6.0	22.5	0.8	3,000	26.5	18.5	10.0	22.5	0.8	5,000
0.033	333	26.5	15.0	6.0	22.5	0.8	2,100	26.5	16.0	7.0	22.5	0.8	3,000	26.5	18.5	10.0	22.5	0.8	5,000
0.039	393	26.5	15.0	6.0	22.5	0.8	2,100	26.5	17.0	8.5	22.5	0.8	3,000	26.5	22.0	12.0	22.5	0.8	5,000
0.047	473	26.5	16.0	7.0	22.5	0.8	2,100	26.5	18.5	10.0	22.5	0.8	3,000	32.0	20.0	11.0	27.5	0.8	2,200
0.056	563	26.5	16.0	7.0	22.5	0.8	2,100	26.5	18.5	10.0	22.5	0.8	3,000	32.0	22.0	13.0	27.5	0.8	2,200
0.068	683	26.5	17.0	8.5	22.5	0.8	2,100	26.5	22.0	12.0	22.5	0.8	3,000	32.0	22.0	13.0	27.5	0.8	2,200
0.082	823	26.5	18.5	10.0	22.5	0.8	2,100	32.0	20.0	11.0	27.5	0.8	2,000	32.0	24.5	15.0	27.5	0.8	2,200
0.1	104	26.5	18.5	10.0	22.5	0.8	2,100	32.0	20.0	11.0	27.5	0.8	2,000	32.0	28.0	14.0	27.5	0.8	2,200
0.12	124	32.0	20.0	11.0	27.5	0.8	1,300	32.0	22.0	13.0	27.5	0.8	2,000	32.0	33.0	18.0	27.5	0.8	2,200
0.15	154	32.0	20.0	11.0	27.5	0.8	1,300	32.0	24.5	15.0	27.5	0.8	2,000	32.0	33.0	18.0	27.5	0.8	2,200
0.18	184	32.0	22.0	13.0	27.5	0.8	1,300	32.0	24.5	15.0	27.5	0.8	2,000
0.22	224	32.0	22.0	13.0	27.5	0.8	1,300	32.0	33.0	18.0	27.5	0.8	2,000
0.27	274	32.0	24.5	15.0	27.5	0.8	1,300	32.0	33.0	18.0	27.5	0.8	2,000
0.33	334	32.0	28.0	14.0	27.5	0.8	1,300	32.0	33.0	18.0	27.5	0.8	2,000
0.39	394	32.0	33.0	18.0	27.5	0.8	1,300
0.47	474	32.0	33.0	18.0	27.5	0.8	1,300

Vrms vs. Frequentia, proprium valorem

RADIAL TAPING CODEX DIAGRAM

Fig. 4 Arca vel Expoxy Coated

F=10 = Ammo Only

F = XV omne aliud spatium exsultaverunt quod

de Maiore corpore – Ammo Tantum

(RT3 vel RT4)

Descriptio	Epistula	Dimensio (mm)
		RT4	Tol.
Filum plumbum Diameter	d	0.6 / 0.8	± 0.05
Tape Pix	P	25.4	± 1
Pasce foramen Pitch	PO	12.7	± 0.2
Centrum plumbi filum	P1	5.2	± 0.7
Centrum corporis	P2	12.7	± 1.3
Duc Spacing (Pix)	F	15	+ 0.6; -0.1
Pars Gratia diei et noctis	h	0	± 2
Summa Componenet ex Tape Center	H	18.5	± 0.5
Portitorem Tape Latitudo	W	18	+ 1; -0.5
Deprimatis Tape Latitudo	WO	10	Min
Foraminis Position	W1	9	± 0.5
Deprimatis Tape Position	W2	3	Max
Pasce foramen Diameter	Do	4	± 0.2
Tape Crassitudo	t	0.5	± 0.2
Figura	ficus	4

Adnotatio: *Allocacio exaggeratus in picem summa minus quam 1mm 20 vocum.

*Continua inanis pars minus 3 continuos pieces.

*Totum inane turbabuntur minus 1%.

Introductio
CDBB Series specialiter construuntur ad Factorem Correctionis (PFC) applications. Pellicula selecta et metalisation speciatim applicata ad altas dv/dt applicationes
