Metallized Polypropylene film Capacitor |Humilis DF| CDBC

Features

◆ Low dissipation factor at high frequency
◆ High capacitance and dissipation factor stability
Non inductiva constructione
◆ Self-healing
◆ Flame retardant epoxy resin coating (compliant to UL 94V-0)

Cubits

PRAECIPUUS	Performatio
Operans intentione dolor	100Vdc, 250Vdc, 400Vdc, 630Vdc
Rated temperatus	-40 ˚C ~ +85ºC
Utibile superiorem Categoriam Temperature	+105ºC (Derating ratio of rated voltage over +85˚C ~ +110º C: 1.5% per ºC of RatedVoltage)
Capacitance range	0.01 μF ~ 10 µF
Capacitance tolerantia	+3% (H), +5% (J), +10% (K)
Dissipatio factor	Khz	C < 0.1 µF	0.1 < C < 1.0 µF	1.0 < C < 3.0 µF	3.0 < C < 5.0 µF	5.0 < C < 10 µF
	1	< 0.10%
	100	< 0.40%	< 0.70%	< 1.20%	< 1.80%	< 2.80%
Nulla Repugnantia Terminatio ad Terminal	Praecipe intentione: 100Vdc x 1min (at 20˚C + 5˚C) > 30,000MΩ for C < 0.33µF > 10,000MΩ x µF for C > 0.33µF
sustinere intentione	Terminatio ad Terminal: (at 20˚C + 5˚C)
Rated intentione Pulsus Clivo dV/dt (V/μs)	Pix VR		7.5mm	10mm	15mm	22.5mm	27.5mm
	100Vdc		130	110	100	70	50
	250Vdc		240	220	200	130	100
	400Vdc		—	350	300	200	150
	630Vdc		—	420	400	250	180



RELIABILITY TEST

Item	Test Methodi	Requisita
Resistance to Soldering Heat IEC 60068-2-20	Solder Bath: 260ºC + 5ºC Immersion Time: 10sec + 1sec	Capacitance Change ІΔ C/C : <1% DF Change Δ tan δ : 0.1% at 1KHz IR: > terminus pretii
Resistance to Vibration IEC 60068-2-6	Frequentia Range: 10Hz ad 55Hz Amplitude: 1.5mm Duratio: 6 horulus	Non erit damnum visibile, No Intermittent Contact, Non Open aut Short Circuit
umidus calor, Steady State IEC 60068-2-3	Temperamentum: 40ºC + 2ºC Relative Humidity: 90% ut 95% Duratio: 1,000 horulus	Capacitance Change ІΔC/C І< : 3% DF Change Δ tan δ: 0.1% ad 1KHz IR: > 50% terminus pretii
Electrical Endurance IEC 60384-17	Temperamentum: 85ºC + 2ºC Voltage Applied: 1.25 x VR(DC) Duratio: 2,000 horulus	Capacitance Change ІΔC/CІ< : 3% DF Change Δ tan δ : 0.1% at 1KHz IR: > 50% terminus pretii



MAXIMA DIMENSIONES

	W.V.	100VDC (2A)					250VDC (2E)					400VDC (2G)					630VDC (2J)
(µF)	Codex	W	H	T	P	d	W	H	T	P	d	W	H	T	P	d	W	H	T	P	d
0.010	103											10.5	7.5	4.0	7.5	0.6	10.5	9.0	5.5	7.5	0.6
0.012	123											10.5	8.5	4.0	7.5	0.6	10.5	9.5	6.0	7.5	0.6
0.015	153											10.5	9.0	4.5	7.5	0.6	10.5	10.5	6.0	7.5	0.6
0.018	183											10.5	9.5	4.5	7.5	0.6	10.5	11.0	6.5	7.5	0.6
0.022	223						10.5	7.5	4.0	7.5	0.6	10.5	10.0	5.0	7.5	0.6	13.0	10.0	6.0	10.0	0.6
0.027	273						10.5	8.0	4.0	7.5	0.6	10.5	10.5	5.5	7.5	0.6	13.0	11.0	6.5	10.0	0.6
0.033	333						10.5	8.5	4.5	7.5	0.6	10.5	11.0	6.0	7.5	0.6	13.0	11.5	7.0	10.0	0.6
0.039	393						10.5	9.0	4.5	7.5	0.6	13.0	11.0	5.5	10.0	0.6	13.0	12.0	8.0	10.0	0.6
0.047	473	10.5	7.5	4.0	7.5	0.6	10.5	10.0	4.5	7.5	0.6	13.0	11.0	5.5	10.0	0.6	13.0	13.0	8.0	10.0	0.6
0.056	563	10.5	8.0	4.0	7.5	0.6	10.5	10.5	5.0	7.5	0.6	13.0	11.5	6.0	10.0	0.6	13.0	14.0	9.0	10.0	0.6
0.068	683	10.5	9.0	4.5	7.5	0.6	10.5	11.0	5.5	7.5	0.6	13.0	12.5	6.5	10.0	0.6	18.0	12.5	7.0	15.0	0.8
0.082	823	10.5	9.5	4.5	7.5	0.6	10.5	11.5	6.0	7.5	0.6	13.0	13.0	7.0	10.0	0.6	18.0	13.0	7.5	15.0	0.8
0.10	104	10.5	10.0	5.0	7.5	0.6	10.5	12.0	6.5	7.5	0.6	13.0	13.5	8.0	10.0	0.6	18.0	14.0	8.0	15.0	0.8
0.12	124	10.5	10.0	5.5	7.5	0.6	13.0	11.5	6.0	10.0	0.6	18.0	12.0	6.0	15.0	0.8	18.0	15.5	8.0	15.0	0.8
0.15	154	10.5	11.0	6.0	7.5	0.6	13.0	12.0	6.5	10.0	0.6	18.0	12.5	7.0	15.0	0.8	18.0	16.5	9.0	15.0	0.8
0.18	184	10.5	11.5	6.5	7.5	0.6	13.0	12.5	7.0	10.0	0.6	18.0	13.5	8.5	15.0	0.8	18.0	17.5	10.0	15.0	0.8
0.22	224	13.0	11.5	6.0	10.0	0.6	13.0	13.0	7.5	10.0	0.6	18.0	15.0	8.0	15.0	0.8	18.0	18.5	11.5	15.0	0.8
0.27	274	13.0	12.0	6.5	10.0	0.6	18.0	13.0	6.0	15.0	0.8	18.0	16.0	8.5	15.0	0.8	25.5	18.0	9.0	22.5	0.8
0.33	334	13.0	13.0	7.0	10.0	0.6	18.0	14.0	6.5	15.0	0.8	18.0	17.0	9.5	15.0	0.8	25.5	19.0	10.0	22.5	0.8
0.39	394	13.0	13.5	7.5	10.0	0.6	18.0	14.5	7.0	15.0	0.8	18.0	18.0	10.5	15.0	0.8	25.5	20.0	11.0	22.5	0.8
0.47	474	13.0	14.0	8.5	10.0	0.6	18.0	15.0	8.0	15.0	0.8	25.5	16.0	9.0	22.5	0.8	20.5	20.5	12.0	17.5	0.8
																	25.5	21.0	12.0	22.5	0.8
0.56	564	18.0	14.0	7.0	15.0	0.8	18.0	16.0	8.5	15.0	0.8	25.5	17.0	10.0	22.5	0.8	25.5	22.5	13.5	22.5	0.8
0.68	684	18.0	15.0	7.5	15.0	0.8	18.0	17.0	9.5	15.0	0.8	25.5	18.0	11.0	22.5	0.8	25.5	24.0	15.0	22.5	0.8
0.82	824	18.0	15.5	8.0	15.0	0.8	18.0	18.5	10.0	15.0	0.8	25.5	20.0	11.0	22.5	0.8	25.5	25.5	16.5	22.5	0.8
1.00	105	18.0	16.5	9.0	15.0	0.8	18.0	20.0	11.0	15.0	0.8	25.5	21.5	12.5	22.5	0.8	26.0	16.5	12.0	22.5	0.8
																	31.5	25.0	16.0	27.5	0.8
1.20	125	18.0	17.5	10.0	15.0	0.8	25.5	18.0	9.0	22.5	0.8	25.5	23.0	14.0	22.5	0.8	31.5	27.0	18.0	27.5	0.8
1.50	155	18.0	18.5	11.5	15.0	0.8	25.5	19.5	10.5	22.5	0.8	25.5	24.5	15.5	22.5	0.8
1.80	185	25.5	18.0	9.0	22.5	0.8	25.5	20.5	11.5	22.5	0.8
2.20	225	25.5	19.0	10.0	22.5	0.8	25.5	22.0	13.0	22.5	0.8
2.70	275	25.5	20.0	11.5	22.5	0.8	25.5	23.5	14.5	22.5	0.8
3.30	335	25.5	24.5	15.5	22.5	0.8	25.5	25.5	16.0	22.5	0.8



Part Number Exemplum – BULK

Part Number Exemplum – RADIAL TAPED

CAPACITAS

µF	0.01	0.047	0.1	0.47	1.0	3.3
pf	10,000	47,000	100,000	470,000	–	–
Codex	103	473	104	474	105	335



TOLERATIO CODEX

Codex	Tolerantia
J	+ 5%
K	+ 10%
M	+ 20%



RATED VOLTAGE

W.V.	100	250	400	630
Codex	2A	2E	2G	2J



TAPE CODEX (See Diagrams)

Spacing	7.5mm	10mm	15mm
stipare	A vel R *	A	A
Codex	RT2	RT3	RT4



PRAEDUCO STYLE EXAMPLES

RADIUS PLUMBUM eros

* Leadspace est rectum plumbum non formatae originale leadspace.

mm	7.5	10	15	22.5	27.5
Codex	075	100	150	225	275



Longitudo a sedebis PLANICIUS (if bulk pack)

mm	5	10	15	20	25
Codex	050	100	150	200	250



PACKAGING

Meth	o*d	Bulk	Ammo	Reel
Codex		B	A	R



PLUMBUM STYLE

Codex	Style
S	Rectus
K	Kink-In (Sta off)
F	Ex forma
I	Forma in

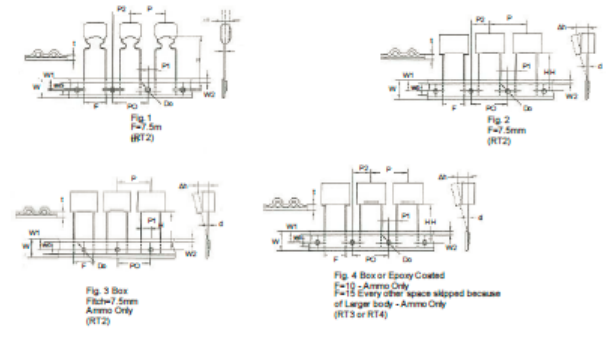

RADIAL TAPING CODEX DIAGRAM

Cubits

Descriptio	Epistula	Dimensio (mm)					Descriptio	Epistula	Dimensio (mm)
		RT1	RT2	RT3	RT4	Tol.			RT1	RT2	RT3	RT4	Tol.
Filum plumbum Diameter	d	0.5 / 0.6	0.5 / 0.6	0.6	0.6 / 0.8	+ 0.05	Portitorem Tape Latitudo	W	18	18	18	18	+ 1;-0.5
Tape Pix	P	12.7	12.7	12.7	25.4	+ 1	Deprimatis Tape Latitudo	WO	6	6	9	10	Min
Pasce foramen Pitch	PO	12.7	12.87	12.7	12.7	+ 0.2	Foraminis Position	W1	9	9	9	9	+ 0.5
Centrum plumbi filum	P1	3.85	2.6 / 3.75	7.7	5.2	+ 0.7	Deprimatis Tape Position	W2	3	3	3	3	Max
Centrum corporis	P2	6.35	6.35	12.7	12.7	+ 1.3	Pasce foramen Diameter	Do	4	4	4	4	+ 0.2
Duc Spacing (Pix)	F	5	7.5	10	15	+ 0.6;-0.1	Tape Crassitudo	t	0.7	0.7	0.7	0.07	+ 0.2
Pars Gratia diei et noctis	h	0	0	0	0	+ 2	Figura	ficus	1 or * 2	1.2 or * 3	4	4
Summa Componenet ex Tape Center	H	18.5	18.5	18.5	18.5	+ 0.5

Adnotatio: *Allocacio exaggeratus in picem summa minus quam 1mm 20 vocum.

*Continua inanis pars minus 3 continuos pieces.

*Totum inane turbabuntur minus 1%.

Introductio
CDBC series are constructed with metalized polypropylene film dielectric, copperply lead and flame retardant epoxy resin coating. Suitable blocking, by- pass, copulatio, decoupling, eliquare, timing, tuning, temperature compensation and ideal for use in ballasts, switching power supplies, telecommunication equipment, industrial instruments, systemata automataria et alia genera electronic instrumenti.
