SMD Aluminum Electrolytic Capacitors ▏125℃ High Temperature ▏CAMA
Features
High Temperature Range up to +125°C
For automobile modules and other high temperature applications
Radius obsequium
High Temperature Range up to +125°C
For automobile modules and other high temperature applications
Radius obsequium
Cubits
| PRAECIPUUS | Performatio | |||||||||
| Operating temperatus rhoncus | 10 ~ 50V | |||||||||
| 40 ° C +125 N ° C | ||||||||||
| Capacitance tolerantia | +20% | |||||||||
| Leakage Current (at 20 N ° C) | I = 0.03CV or 4 (μa) Quicquid est maior (post 1 minute) Where C
= rated capacitance in µF. V = rated DC opus voltage in V. |
|||||||||
| Dissipatio factor (Tan δ at 120Hz, 20 N ° C) | Rated
Voltage |
10 | 16 | 25 | 35 | 50 | ||||
| Tan δ (max) | 0.32 | 0.24 | 0.21 | 0.18 | 0.18 | |||||
|
Humilis temperatus characteres (ad 120hz) |
IMMUSTANTIA RATIO non excedat values dedit in mensa infra. | |||||||||
| Rated voltage | 10 | 16 | 25 | 35 | 50 | |||||
| Impedimentum
Ratio |
Z (-40 N ° C)/Z(+20 N ° C) | 5 | 4 | 3 | 3 | 3 | ||||
|
Lond Vita Test |
Test Tempus | 1,000 Hrs | ||||||||
| Capacitance Mutare | Intus +30% de initial valorem | |||||||||
| Dissipatio factor | Minus quam 300% de certa pretii | |||||||||
| Leakage Current | Intra certa valore | |||||||||
| * - Satisfiat praescriptis specificationibus in capaces redditis 20 °C after the rated
voltage applied for 1,000 hrs ad * 125 N ° C |
||||||||||
| PLUTEUM Vita Test | Test Tempus: 1,000 hrs; cetera eadem sunt quae ad onus vitae test. | |||||||||
| Alia signa | Jis c 5101-1, -18 | |||||||||
Dimensio & LICET CRISPICO current
Dimensio: φD x L(mm)
Ripple Current mA/rms at 120KHz, 125N ° C
| V.DC | 10V (1A) | 16V (1C) | 25V (1E) | 35V (1V) | 50V (1H) | ||||||
| µF | Contenta | D x L | MA | D x L | MA | D x L | MA | D x L | MA | D x L | MA |
| 33 | 330 | 6.3 X 5.7 | 50 | 6.3 X 5.7 | 50 | 6.3 X 7.7 | 70 | 8 X 10 | 130 | ||
| 47 | 470 | 6.3 X 5.7 | 70 | 6.3 X 7.7 | 70 | 8 X 6.5 | 75 | 8 X 10 | 130 | ||
| 100 | 101 | 8.0 X 6.5 | 78 | 8 X 6.5 | 75 | 8 X 10 | 134 | 10 X 10 | 182 | 12.5 X 13.5 | 357 |
| 220 | 221 | 8.0 X 10 | 131 | 10 X 10 | 181 | 10 X 10 | 181 | 12.5 X 13.5 | 357 | 12.5 X 16 | 401 |
| 330 | 331 | 8.0 X 10 | 131 | 12.5 X 13.5 | 480 | 12.5 X 13.5 | 480 | 16 X 16.5 | 650 | 16 X 16.5 | 652 |
| 470 | 471 | 12.5 X 13.5 | 480 | 12.5 X 13.5 | 480 | 12.5 X 13.5 | 480 | 16 X 16.5 | 650 | ||
| 680 | 681 | 12.5 X 13.5 | 480 | 12.5 X 13.5 | 480 | 12.5 X 16 | 585 | 16 X 16.5 | 650 | ||
| 1,000 | 102 | 12.5 X 16 | 585 | 12.5 X 16 | 589 | 16 X 16.5 | 650 | 18 X 16.5 | 855 | ||

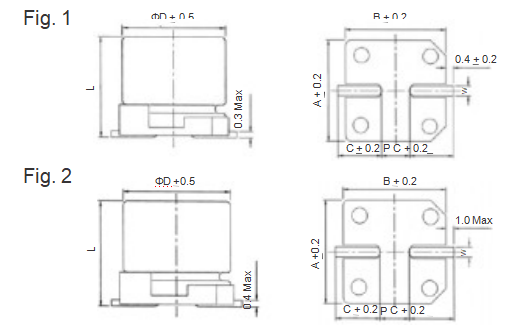

Pad spacing diameter
| Φd | L | A | B | C | W | P±0.2 | Fig.
No. |
| 8 | 10.0 + 0.5 | 8.4 | 8.4 | 3.0 | 0.7 ut 1.1 | 3.1 | 1 |
| 10 | 10.0 + 0.5 | 10.4 | 10.4 | 3.3 | 0.7 ut 1.1 | 4.7 | 1 |
| 12.5 | 13.0 + 0.5 | 12.8 | 12.8 | 4.9 | 1.1 ut 1.4 | 4.2 | 2 |
| 12.5 | 16.0 + 0.5 | 12.8 | 12.8 | 4.9 | 1.1 ut 1.4 | 4.2 | 2 |
| 16 | 16.5 + 0.5 | 16.3 | 16.3 | 5.8 | 1.1 ut 1.4 | 6.0 | 2 |
Part Number Exemplum
CAMA 221 M 1A TR 080 100
Features
◆ High Temperature Range up to +125°C
◆ For automobile modules and other high temperature applications
◆ Rads obsequium
