Axial plumbum infectum Tantalum Capacitors ▏Half Signatum |CBDA
CBDA Series half-sealed tubular wet tantalum electrolytic capacitors
With polar axial leads are characterized in small size, humilis DC lacus, firmum et optimum spectacula, princeps fidem et vitam longam. CBDA
Series meets the requirements of Chinese Electronic industry standard SJ/T10030-91,
late usus est in apparatu electronic ad applicationes militares et civiles sicut telecommunicationis, Aerospace et Aviation.
Characteres generales
Operating temperatus rhoncus: -55X3 ~+125<0(>85<0 cum rated voltage deating)
Capacitance range: 1 uF~3300uF
Capacitance tolerantia: ± XX%, ± X%
Voltage: 6.3V~ 125V
DC Leakage: at +20c*C, 10^0.001 CRVR or * 1 卩 A(Whichever is greater);
at +85P and +125P, I0W0.0080 CRVRor * 8 卩 A(Whichever is greater)

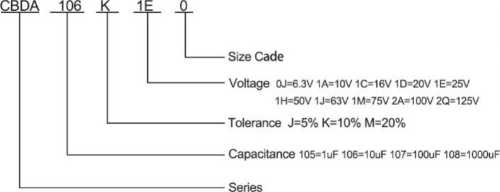

Part Number Exemplum

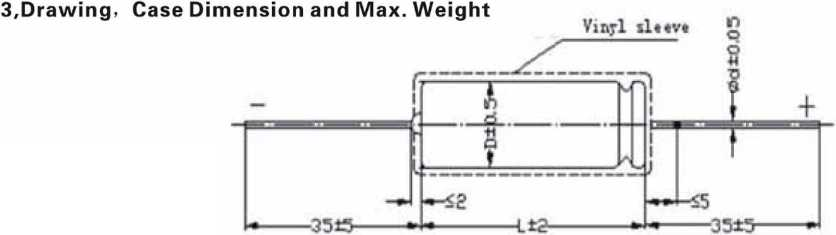

| Codex | Max. pondus(g) | D±0.5 ( mm ) | L±2 ( mm ) |
| 0 | 3 | 5 | 10 |
| 1 | 4 | 5 | 14 |
| 2 | 5 | 6 | 16 |
| 3 | 7 | 8 | 16 |
| 4 | 10 | 8 | 22 |
| 5 | 14 | 10 | 22 |
| 6 | 17 | 10 | 25 |
| 7 | 20 | 10 | 30 |
| 8 | 23 | 10 | 33 |
Nominal Capacitance, Rated voltage. Voltage Derating,Case size and General Characteristics
| Rated voltage | Voltage Derating | Case size | Capacitas (mF*) | DF(%)Max 25C85C125幻 | lmpedance( Q) -55P 100HZ |
| 6.3 | 4 | 0 | 1.0 | 6 | 1800 |
| 0 | 1.5 | 6 | 1400 | ||
| 0 | 2.2 | 6 | 1100 | ||
| 0 | 3.3 | 6 | 700 | ||
| 0 | 4.7 | 6 | 500 | ||
| 0 | 6.8 | 8 | 350 | ||
| 0 | 10 | 8 | 260 | ||
| 0 | 15 | 10 | 200 | ||
| 0 | 22 | 10 | 180 |
Features
CBDA Series half-sealed tubular wet tantalum electrolytic capacitors
With polar axial leads are characterized in small size,
humilis DC lacus, firmum et optimum spectacula, princeps fidem et vitam longam.
CBDA Series requisitis Sinensium Electronic industria vexillum SJ/T10030-91 occurrit, late usus est in apparatu electronic ad applicationes militares et civiles sicut telecommunicationis, Aerospace et Aviation.
Radius obsequium
