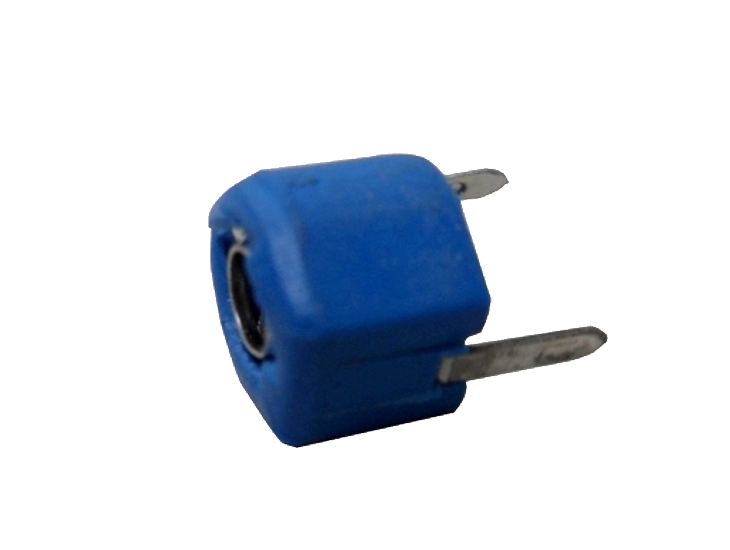

Ceramic Trimmer Capacitor | 6Mm | Egestas
Features
OPERATINGTEMPERATURE TRACTUS: -25ad +85℃
RATED EXERCITUS VOLTAGE: 100VDC
SINE VOLTAGE: 110VDC 220VDC
SOLDERING TEMPERATURA: 250 ± 5℃
Applications
Hae determinationes adhibentur Capacitores Ceramic Trimmer cum dielectrico ceramico, quae pro electricis et electronicis instrumentis ac instrumentis communicationis adhibentur.
Pars Number
Numerus ex parte est genus, dimensio , temperatus notis ac maxime exprimens
Capacitas：
Egestas 3R0 2A R
( a ) ( b ) 3 ( c* )
(a) Series
(b) Maximum nominale capacitatem : PF unitas in 3 numeri (The1st and 2nd figures
significant figuras indicant, sed 3 nihilum numerum indicat.)
( c* ) Adjusting types : R (Reverse Type) aut Blank (Normalis Type)
- Rated voltage : 100VDC
- Temperatus range : -25to +85℃
- Testcircumstance :Test fieri in 20℃ cum humiditate relativa 65%. tamen, subiecta speciali postulationem,idealis range debet esse intra ± 5℃ et humiditas ab 45℃to 85℃
Electrical Characteristic
- CapacitanceDrift Post De revolutionibus
Rotatione pro 5 circuitus ad CLXXX ° ad rate of * 20 r/mm, capacitance pretii differentia statim invenitur d. Olim harundo sistitur ad positionem maximi capacitatis- sumendo valorem post 24 horas post. Specificatio range debet esse in 5pF, 10pF± 1.5% et 30pF± 2%.
- TemperatureCharacteristics
Cum metiri facultatem ad 1MHz ± X%, attigit caloris temperamentum ad utrumque mutatum
.+20to -25 ad LXXX% ~ XC% ad maximam capacitance, capacitas mutatio fundatur in capacitate ad + 20℃ 2nF, scaena mutantur temperatus ut supra.
- Q(Qualitas factor)
Cum metiri in 20℃, 0.5V ad 5V ., 1MHz et maximam facultatem , in Q valores l isted in attachiatus speciem.
- InsulationResistance
Cum applicantur 100VDC inter terminales for 1 momento ad maximam facultatem, Nulla resistentia erit plus quam 10,000M.
- WithstandingVoltage
Nulla deprauatio post applicata 220VDC . (1dic quam 5mA) enim 5 seconds inter terminals.
Structura et notae mechanicae
- Configurationand Dimensiones
Placere referri ad adnexis tractus.
- virtus Terminals
Quando applicata potentia ad terminales ad quamcunque partem lente retinetur 0.5 kg for 10 seconds, terminales non solvi aut fracti mechanice.
- Torque
Torquecus examen fieri debet saltem pro l rotundo incedit ab 35gf.cm ad 100gf.cm pro Type normali, aut 15gf *. cm ad 100gf.cm in inversa Type . Quaeso nota quod torques contra incrementum rotationis decrescere posset.
- Solderability
Cum detritum est terminales in ollam solidam in 255℃±5℃ pro 2±0. 5 seconds. Est fere 75% totius superficiei detritae novo solido obductae sunt.( cautio: Serva solidatorium conditionibus ut supra. Si solidatorium conditiones non sunt idoneae ( nimia T ime, nimia temperie et etc.), i t's perficiendi serio deviabitur.
Color Code
Quaeso ad colorem codice in adnexis specificationibus.
6mm Ceramic Trimmer Capacitors
| Pars No. | Capacitas(pf) | Q(1Mhz, Cmax) | Temp.Coeff ppm/℃ | Rated voltage | Non obstante intentione |
Color Code |
||
| Min | Max | |||||||
| CHCA3R02A(R) | 1.3max | 3 | +50%-0% |
500 min |
NPO±200 | 100Vdc | 220Vdc | Blue |
| CHCA5R02A(R) | 1.5max | 5 | +50%-0% | NPO±250 | 100Vdc | 220Vdc | Blue | |
| CHCA7R02A(R) | 2.0max | 7 | +50%-0% | NPO±250 | 100Vdc | 220Vdc | Blue | |
| CHCA1002A(R) | 3.0max | 10 | +50%-0% | N 450±300 | 100Vdc | 220Vdc | White | |
| CHCA2002A(R) | 5.0max | 20 | +50%-0% | N 750±300 | 100Vdc | 220Vdc | Red | |
| CHCA3002A(R) | 6.0max | 30 | +50%-0% | N 1000±D | 100Vdc | 220Vdc | Viridis | |
| CHCA4002A(R) | 7.0max | 40 | +50%-0% | 300 min | N 1200±500 | 100Vdc | 220Vdc | flavum |
| CHCA5002A(R) | 10.0max | 50 | +50%-0% |
200 min |
N 1200±500 | 100Vdc | 220Vdc | Brown |
| CHCA6002A(R) | 12.0max | 60 | +50%-0% | N 1200±800 | 100Vdc | 220Vdc | Brown | |
| CHCA7002A(R) | 14.0max | 70 | +50%-0% | N 2200±800 | 50Vdc | 110Vdc | Brown | |
| CHCA9002A(R) | 25.0max | 90 | +50%-0% | N 2200±800 | 50Vdc | 110Vdc | Brown | |
| CHCA1212A(R) | 35.0max | 120 | +50%-0% | N 2200±800 | 50Vdc | 110Vdc | Brown | |
Introductio
Haec specificatio applicatur capacitori ceramico putator cum dieletricorum ceramico ,quae pro electricis et electronicis instrumentis ac instrumentis communicationis adhibentur.
