Low Leakge Electrolytic Capacitors LXXXV ℃ ▏cabb
Features
85℃
Standard low lacus current series
Cubits
| Item | Performatio | |||||||||||||
| CABB | CABB | |||||||||||||
| Vita | In 85°C 1000 Hrs | In 85°C 2000 Hrs | ||||||||||||
| Operating temperatus | -40°C ~ +85°C | |||||||||||||
| Capacitance tolerantia | ± 20% (120HZ, 20N ° C) | |||||||||||||
| Leakage Current (ad XX ° C) | I = 0.002CV or 0.4 ( A) Quicquid est maior
(post 2 minuta) Ubi, C = capacitas aestimata in μF. V = rated DC opus voltage in V. |
|||||||||||||
| Dissipaton factor | Rated voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | |||||
| Sic δat 120 HZ, 20N ° C | Tan δ (max) | 0.24 | 0.21 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | |||||
| Cum capacitance 1000 μf 0.02 et addidit omnis 1000 μf | ||||||||||||||
| IMMUSTANTIA RATIO non excedat values dedit in mensa infra | ||||||||||||||
| Humilis temperatus | Rated voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | |||||
| Characteres (ad 120hz) | IMMUSTANTIA RATIO | Z(-25N ° C)
/Z(+20N ° C) |
5 | 4 | 2 | 2 | 2 | 2 | 2 | 2 | ||||
| Z(-40N ° C)
/Z(+20N ° C) |
10 | 8 | 6 | 4 | 4 | 3 | 3 | 3 | ||||||
|
Lond Vita Test |
Test Tempus | 1000 / 2000 Hrs | PLUTEUM Vita Test | Test Tempus | 1000 Hrs | |||||||||
| Capacitance Mutare | ≤± 20% | Capacitance Mutare | ≤± 20% | |||||||||||
| Dissipatio factor | Minus quam 200% de certa pretii | Dissipatio factor | Minus quam 200% de certa pretii | |||||||||||
| Leakage Current | Intra certa valore | Leakage Current | Intra certa valore | |||||||||||
| Specificatio satiabitur, cum capacitores sunt 10K sursum
restituta XX ° C post rated voltage applicari 1000/2000 hrs.at 85°C. |
Specificatio satiabitur cum capaci- tores restituuntur ad 20°C, postquam eas exponentes 1000
hrs ad LXXXV ° C sine voltage applicata. |
|||||||||||||
|
Ripple Current & Frequency multilpiers |
Freq. (HZ) |
120 |
500 |
1K |
Riple current & | Temperamentum (N ° C) | Sub 50 | 70 | 85 | |||||
| Pileum. ( F) | Temperatus multipliers | Multipliers | 1.75 | 1.58 | 1.00 | |||||||||
| Sub 100 | 0.70 | 1.00 | 1.35 | 1.55 | 2.00 | |||||||||
| 220 ut 1000 | 0.83 | 1.00 | 1.23 | 1.32 | 1.50 | |||||||||
| 2200 sursum supra | 0.90 | 1.00 | 1.12 | 1.10 | 1.15 | |||||||||
| Signa | Satis proprium w de jis c 5141 | |||||||||||||
Dimensiones et permissable Ripple Current
Dimensio: Φ £ l(mm) Ripple Current: MA / RMS ad 120Hz LXXXV ° C
| VDC
μf Codex |
6.3V(0J) |
10V(1A) |
16V(1C) |
25V(1E) |
35V(1V) |
50V(1H) |
63V(1J) |
100V(2A) |
|||||||||
| DXL | MA | DXL | MA | DXL | MA | DXL | MA | DXL | MA | DXL | MA | DXL | MA | DXL | MA | ||
| 0.1 | 0R1 | 5 X 11 | 1.3 | 5 X 11 | 2.6 | ||||||||||||
| 0.22 | R22 | 5 X 11 | 2.9 | 5 X 11 | 5.8 | ||||||||||||
| 0.33 | R33 | 5 X 11 | 4.4 | 5 X 11 | 8.8 | ||||||||||||
| 0.47 | R47 | 5 X 11 | 7 | 5 X 11 | 12 | ||||||||||||
| 1 | 010 | 5 X 11 | 13 | 5 X 11 | 22 | ||||||||||||
| 2.2 | 2R2 | 5 X 11 | 29 | 5 X 11 | 33 | ||||||||||||
| 3.3 | 3R3 | 5 X 11 | 35 | 5 X 11 | 40 | ||||||||||||
| 4.7 | 4R7 | 5 X 11 | 31 | 5 X 11 | 40 | 5 X 11 | 42 | 5 X 11 | 45 | 5 X 11 | 48 | ||||||
| 10 | 100 | 5 X 11 | 44 | 5 X 11 | 54 | 5 X 11 | 58 | 5 X 11 | 65 | 5 X 11 | 70 | 6.3 X 11 | 80 | ||||
| 22 | 220 | 5 X 11 | 59 | 5 X 11 | 75 | 5 X 11 | 80 | 5 X 11 | 87 | 5 X 11 | 95 | 6.3 X 11 | 115 | 8 X 11.5 | 135 | ||
| 33 | 330 | 5 X 11 | 55 | 5 X 11 | 84 | 5 X 11 | 90 | 5 X 11 | 97 | 5 X 11 | 105 | 6.3 X 11 | 125 | 6.3 X 11 | 140 | 10 X 12.5 | 195 |
| 47 | 470 | 5 X 11 | 79 | 5 X 11 | 100 | 5 X 11 | 110 | 5 X 11 | 115 | 6.3 X 11 | 145 | 6.3 X 11 | 150 | 8 X 11.5 | 190 | 10 X 16 | 255 |
| 100 | 101 | 5 X 11 | 130 | 5 X 11 | 145 | 6.3 X 11 | 180 | 6.3 X 11 | 190 | 8 X 11.5 | 240 | 8 X 11.5 | 255 | 10 X 12.5 | 320 | 13 X 20 | 450 |
| 220 | 221 | 6.3 X 11 | 230 | 6.3 X 11 | 250 | 8 X 11.5 | 300 | 8 X 11.5 | 320 | 10 X 12.5 | 420 | 10 X 16 | 490 | 10 X 20 | 565 | 16 X 25 | 810 |
| 330 | 331 | 6.3 X 11 | 280 | 8 X 11.5 | 350 | 8 X 11.5 | 370 | 10 X 12.5 | 470 | 10 X 16 | 570 | 10 X 20 | 650 | 13 X 20 | 765 | 16 X 25 | 990 |
| 470 | 471 | 8 X 11.5 | 380 | 8 X 11.5 | 415 | 10 X 12.5 | 520 | 10 X 16 | 620 | 10 X 20 | 740 | 13 X 20 | 860 | 13 X 25 | 990 | 16 X 31.5 | 1250 |
| 1000 | 102 | 10 X 12.5 | 650 | 10 X 16 | 790 | 10 X 20 | 910 | 13 X 20 | 1090 | 13 X 25 | 1300 | 16 X 25 | 1530 | 16 X 31.5 | 1700 | ||
| 2200 | 222 | 13 X 20 | 1150 | 13 X 20 | 1240 | 13 X 25 | 1420 | 16 X 25 | 1660 | 16 X 31.5 | 1890 | 18 X 35.5 | 2160 | ||||
| 3300 | 332 | 13 X 20 | 1380 | 13 X 25 | 1590 | 16 X 25 | 1840 | 16 X 31.5 | 2070 | 18 X 35.5 | 2340 | ||||||
| 4700 | 472 | 16 X 25 | 1880 | 16 X 25 | 1980 | 16 X 31.5 | 2260 | 18 X 35.5 | 2520 | 18 X 40 | 2690 | ||||||
Part Number Exemplum
CABB 220 M 1C BK 050 110

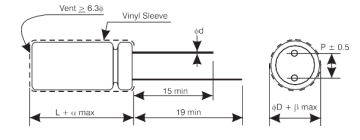

Ducere spacing diameter
| φd | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 |
| P | 2.0 | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 |
| φd | 0.5 | 0.6 | 0.8 | ||||
| a | 1.0 | 1.5 | |||||
| b | 0.5 | ||||||
Features
85℃ 1,000Hrs 2,000Hrs
Minimum ultrices current.
Usei nhigh temperatus industriae apparatu.
◆ Rads obsequium
