Snap in electrolytic capacitors ▏85 ℃ 3,000hrs ▏caia
Has a snap-in terminal which can solder directly to a PCB
Suitable for electronic equipment with medium-high voltage circuits
Typis circuit tabulam terminalem snap-in typo et lug terminalis typus praesto
Cubits
| PRAECIPUUS | Performatio | |||||||||||||||||
| Operating temperatus rhoncus | -40 ° C +85 N ° C | |||||||||||||||||
| Capacitance tolerantia | +20% (ad 120hz, 20 N ° C) | |||||||||||||||||
| Leakage Current (at 20 N ° C) | I = 0.02CV or1.5 mA whichever is smaller (post 5 minuta)
Ubi, C= rated capacitance in µF.V= rated DC working voltage in V. |
|||||||||||||||||
| Dissipatio factor
(Tanδ at 120Hz, 20N ° C) |
Rated voltage | 16 | 25 | 35 | 50 | 63 | 80 | 100 | 160 | 200 | 250 | 350 | 400 | 420 | 450 | 500 | ||
| Tanδ (max) | 0.50 | 0.45 | 0.40 | 0.35 | 0.30 | 0.25 | 0.20 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | |||
|
Humilis temperatus characteres (ad 120hz) |
IMMUSTANTIA RATIO non excedat values dedit in mensa infra. | |||||||||||||||||
| Rated voltage | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 350 | 400 | 420 | 450 | 500 | ||||
| Impedimentum
Ratio |
Z (-25 N ° C)/Z(+20 N ° C) | 4 | 3 | 3 | 2 | 2 | 4 | 4 | 4 | 4 | 8 | 8 | 8 | 8 | 8 | |||
| Z(-40 N ° C)/Z(+20 N ° C) | 15 | 10 | 8 | 6 | 5 | 4 | 8 | 10 | 10 | 16 | 18 | 18 | 20 | 20 | ||||
|
Lond Vita Test |
Test Tempus | 3,000 Hrs |
* The specifications shall be satisfied when the capacitors are restored to 20 °C after the rated voltage applied for 3,000 hrs ad * 85 N ° C |
|||||||||||||||
| Capacitance Mutare | < + 20% | |||||||||||||||||
| Dissipatio factor | Minus quam 200% de certa pretii | |||||||||||||||||
| Leakage Current | Intra certa valore | |||||||||||||||||
|
PLUTEUM Vita Test |
Test Tempus | 1,000 Hrs |
* The specification shall be staisfied when the capacitors are restored to 20 ° C cum exponeret 1,000 hrs ad * 85 N ° C |
|||||||||||||||
| Capacitance Mutare | < + 20% | |||||||||||||||||
| Dissipatio factor | Minus quam 200% de certa pretii | |||||||||||||||||
| Leakage Current | Intra certa valore | |||||||||||||||||
|
Ripple Current & Frequency multiplici |
Freq. |
60 |
120 |
500 |
1k |
10k up |
||||||||||||
| (HZ)
W. V. (V) |
||||||||||||||||||
| Sub 100 | 0.92 | 1.0 | 1.13 | 1.19 | 1.20 | |||||||||||||
| 160 and Up | 0.81 | 1.0 | 1.32 | 1.45 | 1.50 | |||||||||||||
| 350 and Up | 0.77 | 1.0 | 1.30 | 1.41 | 1.43 | |||||||||||||
| Ripple Current &
Temperatus multipliers |
Temperamentum
( N ° C) |
40 | 55 | 70 | 85 | |||||||||||||
| Multiplicatio | 2.1 | 1.8 | 1.5 | 1.0 | ||||||||||||||
| Alia signa | Satisfies Characteristic W fo JIS C 5141 | |||||||||||||||||

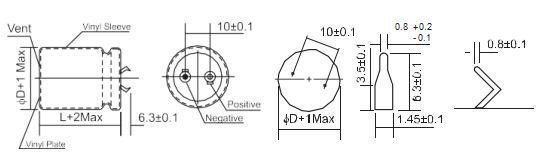

SNAP-IN TERMINAL EXEMPLUM (2 TERMINAL)

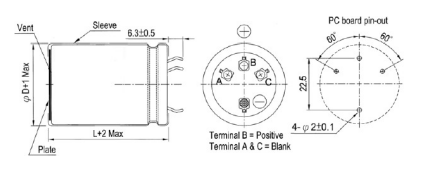

SNAP-IN TERMINAL (4 TERMINAL)
Part Number Exemplum
Features
◆Snap-In Terminal Types (2 Terminal & 4 Treminal)
◆ Has a snap-in terminal which can solder directly to a PCB
Apta electronic instrumento cum media alta intentione circuitus
◆ Printed circuit board terminal snap-in type and lug terminal type available
