High Temperature Micha Capacitor | 175℃| CGBB
JINPEI CGBB series micas pcapacitores aptae sunt ad altum frequentiam,alta voltage,caliditas,magnus current circuitu. Sicut princeps frequentia feedback circuitu,alta frequentia resonans circuitio et pulsus circuitione etc.
Late utuntur in satellite,aerospace,navis,medicinae apparatu,oleum in-foraminis apparatu, glutino machina,metallicus armorum etc.
Feature
Uti optimum charta speculares 511 sicut materia,tingens caliditas epoxy resinae.
Sicut princeps insulatas resistentia,humilis coefficientis,bonum excelsum frequency perficientur.
Valde humilis dissipatio factor <5×10-3 (min 1×10-4).
Ipsum firmum in caliditas, tolerantia parva capacitas.
Post repono 15years, facultatem mutare non super ± I%.
Applicatio
JINPEI CGBB series micas pcapacitores aptae sunt ad altum frequentiam,alta voltage,caliditas,magnus current circuitu. Sicut princeps frequentia feedback circuitu,alta frequentia resonans circuitio et pulsus circuitione etc.
Late utuntur in satellite,aerospace,navis,medicinae apparatu,oleum in-foraminis apparatu, glutino machina,metallicus armorum etc.
General Characteres
Temperature range: -55+175℃
Capacitance tolerantia: ±3%,±5%,±10%
Relativum Umor: ad +40℃ potest esse 95~98%
Atmosphaerae pressura: 4x104Pa
Vibratio: frequentia 20~200Hz, acceleratio: 2.7~4.5g
voltage opus: 2500V
DC test voltage: Post custodiunt 1 hora + 150℃,loading 1.5times operantes voltage 1 minute,non naufragii et flashover.
Nulla resistitur(R): normalis clima
Capacitance C ≥ 0.1μF R≥1000MΩ
Facultas C＜ 0.1μF R＞5000MΩ
Temperamentum proprietates
Post custodiam in + 175℃ 1 hora,facultatem mutare non super ± X%, Nulla resistentia R＞500MΩ,Dissipatio factor: tgδ≤5×10-3(1Khz), transi D.C. test rated voltage.
Post custodiam in -55℃ 1 hora,facultatem mutare non supra ± VII%, Nulla resistentia R＞500MΩ, Dissipatio factor: tgδ≤5×10-3(1Khz), transi D.C. test rated voltage.
Post custodiam in +40℃, relative Umor XCV ~ XCVIII% 48 horulus, facultatem mutare non super ± V%, Nulla resistentia R＞500MΩ,Dissipatio factor: tgδ≤5×10-3(1Khz), transi D.C. test rated voltage.
Post custodias in +95℃~+200℃ 96 horulus, facultatem mutare non super ± X%, Nulla resistentia R＞500MΩ,Dissipatio factor: tgδ≤6×10-3(1Khz), transi D.C. test rated voltage.
Post tremor test, facultatem mutare non super ± V%

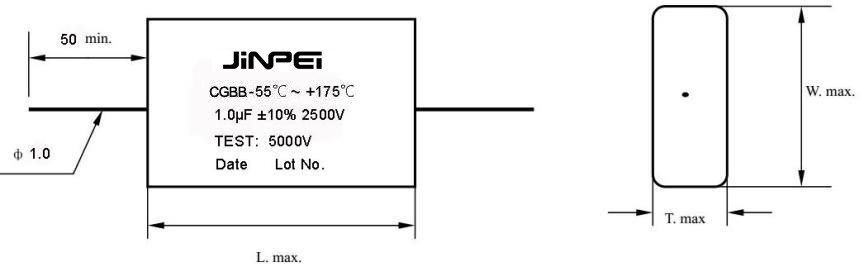

Dimensiones: unitas:
PARS NUMBER EXEMPLUM
Introductio
◆JINPEI CGBB series micas pcapacitores aptae sunt ad altam frequentiam,alta voltage,caliditas,magnus current circuitu. Sicut princeps frequentia feedback circuitu,alta frequentia resonans circuitio et pulsus circuitione etc.
Late uti in satellite,aerospace,navis,medicinae apparatu,oleum in-foraminis apparatu,
glutino machina,metallicus armorum etc.
