Metallized polyester film capacitor |Altum humorem resistentia | CDAC

Features

Operating Temp. Range :-40°C~105°C (V R Derates 1.25% per °C over85°C)
Capacitance Range:0.1~10uF
Capacitance Tolerantia: J=5% K=10% M=20%
Rated Voltage V R 85°C: 100V 250V 400V 630V
Dissipatio Factor: 1% MAX @1KHZ 25℃

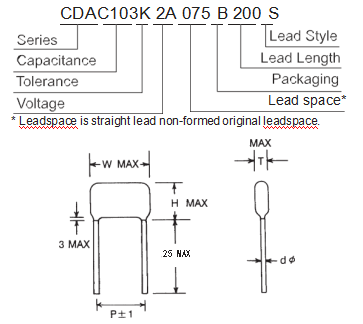

Part Number Exemplum

CAPACITAS CODEX

F	0.01	0.047	0.1	0.47	1.0	4.7	10
pf	10000	47000	100000	470000	–	–	–
Codex	103	473	104	474	105	475	106

RATED VOLTAGE

WV	100	250	400	630
Codex	2A	2E	2G	2J

Meth	d	Bulk	Ammo	Reel
Codex		B	A	R

Spac	g	7.5mm	10mm	15mm
stipare		A vel R *	A	A
Codex		RT2	RT3	RT4

RADIUS PLUMBUM eros

* Leadspace est rectum plumbum non formatae originale leadspace.

mm		7.5	10	15	20	27.5	32.5	37.5	42.5
Codex		075	100	150	200	275	325	375	425

Longitudo a sedebis PLANICIUS

mm	5	10	15	20	25
Codex	050	100	150	200	250



PLUMBUM STYLE

Codex	Style
S	Rectus
K	Kink-In (Sta off)
F	Ex forma
I	Forma in

MAXIMA DIMENSIONES (mm)

(µF)	Codex	W	H	T	P	d F *	W	H	T	P	dΦ	W	H	T	P	dΦ	W	H	T	P	dΦ
0.01	103	10.5	9.0	5.5	7.5	0.6	10.5	9.0	5.5	7.5	0.6	10.5	9.0	5.5	7.5	0.6	13.0	10.0	6.0	10.0	0.6
0.015	153	10.5	9.5	6.0	7.5	0.6	10.5	9.5	6.0	7.5	0.6	10.5	9.5	6.0	7.5	0.6	13.0	10.5	6.5	10.0	0.6
0.022	223	10.5	9.5	6.0	7.5	0.6	10.5	9.5	6.0	7.5	0.6	13.0	9.5	6.0	10.0	0.6	13.0	12.5	7.5	10.0	0.6
0.033	333	10.5	9.5	6.0	7.5	0.6	10.5	9.5	6.0	7.5	0.6	13.0	10.0	6.5	10.0	0.6	18.5	12.0	6.5	15.0	0.6
0.047	473	10.5	9.5	6.0	7.5	0.6	10.5	9.5	6.0	7.5	0.6	13.0	12.0	7.0	10.0	0.6	18.5	12.5	7.5	15.0	0.6
0.068	683	10.5	9.5	6.0	7.5	0.6	10.5	10.0	6.5	7.5	0.6	13.0	13.0	8.0	10.0	0.6	18.5	14.0	8.5	15.0	0.8
0.1	104	10.5	9.5	6.0	7.5	0.6	13.0	10.0	6.5	10.0	0.6	18.0	12.5	7.0	15.0	0.8	18.5	14.5	10.0	15.0	0.8
0.15	154	13.0	9.0	5.5	10.0	0.6	18.5	11.0	6.0	15.0	0.6	18.5	13.5	8.0	15.0	0.8	23.0	15.0	9.5	20.0	0.8
0.22	224	13.0	10.0	6.5	10.0	0.6	18.5	11.5	6.5	15.0	0.6	22.5	14.5	8.0	20.0	0.8	23.0	15.5	10.0	20.0	0.8
0.33	334	13.0	11.5	8.0	10.0	0.6	18.5	12.0	7.0	15.0	0.8	22.5	15.0	9.0	20.0	0.8	32.0	19.0	12.0	27.5	0.8
0.47	474	18.5	11.0	6.0	15.0	0.6	22.5	12.5	7.5	20.0	0.8	22.5	18.5	11.5	20.0	0.8	32.0	22.0	13.5	27.5	0.8
0.68	684	18.5	12.5	7.5	15.0	0.6	22.5	13.5	8.5	20.0	0.8	32.0	19.0	12.0	27.5	0.8	36.0	22.5	14.5	32.5	0.8
1	105	18.5	13.5	8.5	15.0	0.8	22.5	15.0	10.0	20.0	0.8	32.0	21.5	13.5	27.5	0.8	36.0	29.0	16.0	32.5	0.8
1.5	155	22.5	14.5	8.0	20.0	0.8	32.0	17.5	9.5	27.5	0.8	36.0	23.5	14.0	32.5	0.8	42.0	29.5	18.5	37.5	1.0
2.2	225	22.5	16.5	10.0	20.0	0.8	32.0	19.0	10.5	27.5	0.8	36.0	27.5	18.5	32.5	0.8	46.0	32.5	20.5	42.5	1.0
3.3	335	22.5	20.0	12.0	20.0	0.8	32.0	23.0	13.5	27.5	0.8	42.0	30.5	18.5	37.5	1.0
4.7	475	22.5	21.5	14.0	20.0	0.8	36.0	24.0	14.0	32.5	0.8	46.0	34.0	22.0	42.5	1.0
6.8	685	32.0	23.5	14.5	27.5	0.8	42.0	27.0	16.0	37.5	1.0
10	106	32.0	29.0	18.0	27.5	0.8	42.0	35.0	19.0	37.5	1.0

THEATRUM

Item	Metallized Polyester
Facultas Drift	Revolvitur per operating temperatus range 2%
Umor Test	Probationem R.H. 95% in 40° Cfor 1000hrs. C < 5% DF < 1.2% ET' > 10000M
Onus Test	Testis intentione ad resistet 140% of W.V. nam 1000hrs at * 85 N ° C. C< 5% DF < 1.2% ET' > 5000M
Plumbum excute Test	Non sustinebit viverra de 1.5Kg applicatae axially for 10 seconds
Duc Bend Test	Duos cyclos sustinebit sine fractione, cum onere 0.5Kg ad finem plumbi applicando et tunc capacitorem 90°C circumagens a directione exitus plumbi.. Deinde CLXXX ° in oppositum. Inde ad principium.
Solderability	Irruimus in conflatilem solidatorium 230 + 0.5sec. Post tentationem, de vulnere plumbi et hiatu vulneris plumbi veletur et impletur. Difficile erit digito solvere.
Dieelectrica Fortitudo	Et sustinebit 200% or * 160% de rated voltage ad XXV ° C for 1 momento current limitandi resistentia 1 / V



SOLIDING

Area curva est commendatae solidandi tempus & temp. ad materiae ostensum est.

Introductio
CDAC Series construuntur cum polyester pelliculis metallicis dielectric', cupro plumbum et epoxy resinae efficiens. Apta consequat, copulatio, decoupling, eliquare, bypass leo circuitu et apta usus in notitia / apparatu telecomm, instrumentum industriae, latae potestates systemata electronicarum aliarumque generalium applicationis.
