Electrolytic capacitors ▏10,000hrs ▏cadb altum Rippel

Features
105℃, 10,000 Horas
Minoris magnitudinis cum magnis licet tremor current
gracili Type

Cubits

PRAECIPUUS	Performatio
Vita	at 105 N ° C 10,000 Horulus
Operating temp	400V				420 ~ 450V
	-40 ° C +105 N ° C				-25 ° C +105 N ° C
Capacitance tolerantia	+20% (ad 120hz, 20 N ° C)
Leakage Current (at 20 N ° C)	Tempus		post 5 minuta
	Leakage Current		CV ≤ 1,000 I = 0.01CV + 15(μa)			CV > 1,000 I = 0.02CV+25 (μa)
	Ubi C = capacitas aestimata in µF. V = rated DC opus voltage in V
Dissipatio factor (Tan δ at 120Hz, 20N ° C)	Rated voltage		400	420	450
	Tan δ (max)		0.24	0.24	0.24
Humilis temperatus Characteres (ad 120hz)	IMMUSTANTIA RATIO non excedat values dedit in mensa infra
	Rated voltage			400	420	450
	Impedimentum	Z (-25N ° C) / Z (+20 N ° C)		5	6	6
	Ratio	Z (-40N ° C) / Z (+20N ° C)		6	—	—
Lond Vita Test	Test Tempus		10,000 hrs
	Capacitance Mutare		Intus + 20% de initial valorem
	Dissipatio factor		Minus quam 200% de certa pretii
	Leakage Current		Intra certa valore
	* - Satisfiat praescriptis specificationibus in capaces redditis 20 ° C post rated voltage applicari cum rated tremor current for 10,000 hrs ad * 105 N ° C
	Test Tempus		1,000 horulus
PLUTEUM Vita Test	Capacitance Mutare		Intus + 20% de initial valorem
	Dissipatio factor		Minus quam 200% de certa pretii
	Leakage Current		Intra certa valore
	* - Satisfiat praescriptis specificationibus in capaces redditis 20 ° C cum exponeret 1,000 hrs ad * 105 ° C sine voltage applicata. In intentione aestimata applicabitur capacitoribus ante mensuras. (Refer ad JIS C 5101-4 4.1)
Ripple Current & Frequency multiplici	Freq. (HZ)		60	120	500	1k	10k up
	Multipliers		0.80	1.00	1.25	1.40	1.50
Alia signa	Jis c 5101-4

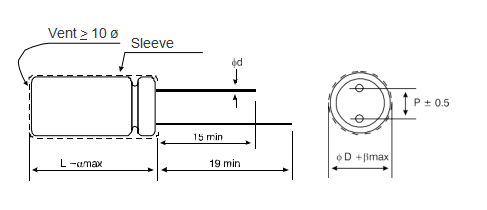

Dimensiones Unitas: mm

φd	10	12.5	16	18
P	5.0	5.0	7.5	7.5
φd	0.6		0.8
a	2.0
b	0.5

Dimensiones & LICET CRISPICO current

Dimensio: φ Dx L(mm)

Ripple Current: mA/rms at 100Hz, 105N ° C

V. DC	Pileum. (µF)	10f*			12.5f*			16f*			18f*
		φ D x L	Ripple Current		φ D x L	Ripple Current		φ D x L	Ripple Current		φ D x L	Ripple Current
		φ D x L	120 HZ	100k Hz	φ D x L	120 HZ	100k Hz	φ D x L	120 HZ	100k Hz	φ D x L	120 HZ	100k Hz
400V (2G)	33	10 X 40	315	475
	39	10 X 45	360	545
	47	10 X 50	420	630	13 X 30	440	660
	56				13 X 35	500	750
	68				13 X 40	580	870	16 X 32	530	795
	82				13 X 50	625	935	16 X 35.5	615	920
	100							16 X 40	715	1,070
	120							16 X 40	800	1,200	18 X 35.5 18 X 40	790 870	1,185 1,305
	150							16 X 45	915	1,375	18 X 45	985	1,475
	180										18 X 50	1,120	1,685
420V (2P)	33	10 X 40	370	555
	39	10 X 45	410	615	12.5 X 30	390	585
	47	10 X 50	465	700	12.5 X 35	450	675
	56				12.5 X 40	520	780	16 X 31.5	500	750
	68				12.5 X 45	580	870	16 X 35.5	580	870
	82				12.5 X 50	660	990	16 X 35.5 16 X 40	730 675	1,095
	82				12.5 X 50	660	990	16 X 35.5 16 X 40	730 675	1,010
	100							16 X 40 16 X 45	750 755	1,125 1,130	18 X 36	725	1,085
	120										18 X 40 18 X 45	835 880	1,250 1,320
	150										18 X 50	1,030	1,550
450V (2W )	33	10 X 45	330	495	12.5 X 30	370	555
	39	10 X 50	380	570	12.5 X 35	420	630
	47				12.5 X 40	480	720
	53				12.5 X 45	500	750
	56				12.5 X 45	530	795	16 X 31.5	510	765
	68				12.5 X 50	620	930	16 X 35.5	590	885
	82							16 X 40	615	920	18 X 35.5	645	965
	100							16 X 45	715	1,070	18 X 40	750	1,125
	120										18 X 45	835	1,250
	150										18 X 50	975	1,465

Part Number Exemplum

ADB 101 M 2P BK 160 400
