SMD Organic PROMMIX Polymer Electrolytic capacitors ▏105 ℃ ▏CAYB
•105°C, 2000 hoursassured.
• Ultra Minimum ESR, solidum capacitorsof SMD genus
• RoHSCompliance
Cubits
| PRAECIPUUS | Performatio |
| Operating temperatus rhoncus | -55C ~ +105°C |
| Capacitance tolerantia | +20% (ad 120hz, 20N ° C) |
| Leakage Current (at 20 C) | Vena ultrices non plus 0.2 CV (μa, post 2 minuta) Ubi, C = in facultatem rated
F. V = rated DC opus voltage in V. |
| Dissipatio factor (Tan ä apud 120Hz, 20N ° C) | Vide dimensionem & Licet Ripple Current |
| Esr (apud 100K ~ 300K Hz, 20N ° C) | Vide dimensionem & Licet Ripple Current |
|
Lond Vita Test |
Test Tempus 2,000 Hrs Facultatem Mutare Within +20% initialis valorem Dissipation Factor Minus quam 150% de certa pretii ESR Minus quam 150% de certa valorem lacus Current Within certum valorem * Specificationes praedictae satisfiat, cum capaci- tores ad 20°C restituantur post intentionem aestimatam applicatae 2,000 HRS at CV ° C. |
|
umor Resistentia |
Condite in LX°C, 90 ut 95% R.H. Test tempus: 1,000 hrs, cetera eadem sunt quae ad onus vitae test.
Test Tempus 1,000 Hrs Facultatem Mutare Within +20% initialis valorem Dissipation Factor Minus quam 150% de certa valorem lacus Current Within certum valorem * Lacus vena temptari debet post curationem voltage. |
| Signa | Jis c 5101-1 |
Dimensio & LICET CRISPICO current
| W.V. (V) | Capacitas
(mF) |
Magnitudo
Dxl(mm) |
Tan
(120HZ, 20°C) |
L.c..
(mAm ) |
E.S.R.
(m¿•/ad 100K ~ 300K Hz, 20°C MAX) |
R.C Ratum.
(mA/rms at 100KHz, 105°C) |
|
2.5V (0E) |
220 | 6.3 X 6 | 0.12 | 110 | 25 | 2,500 |
| 560 | 8 X 7 | 0.12 | 280 | 23 | 3,100 | |
| 680 | 8 X 12 | 0.18 | 340 | 12 | 4,770 | |
| 1,000 | 10 X 8 | 0.12 | 500 | 19 | 4,240 | |
| 1,200 | 10 X 10 | 0.18 | 750 | 13 | 5,200 | |
| 1,500 | 10 X 13 | 0.18 | 500 | 10 | 5,500 | |
|
4V (0G) |
150 | 6.3 X 6 | 0.12 | 120 | 26 | 2,450 |
| 220 | 8 X 7 | 0.12 | 176 | 25 | 3,020 | |
| 330 | 8 X 7 | 0.12 | 264 | 25 | 3,020 | |
| 470 | 10 X 8 | 0.12 | 376 | 20 | 4,130 | |
| 560 | 8 X 12 | 0.18 | 448 | 12 | 4,770 | |
| 680 | 10 X 8 | 0.12 | 544 | 20 | 4,130 | |
| 820 | 10 X 10 | 0.18 | 656 | 13 | 5,200 | |
| 1,200 | 10 X 13 | 0.18 | 960 | 10 | 5,500 | |
|
6.3V (0J) |
82 | 6.3 X 6 | 0.12 | 103 | 27 | 2,400 |
| 100 | 6.3 X 6 | 0.12 | 126 | 27 | 2,400 | |
| 120 | 6.3 X 7 | 0.12 | 151 | 30 | 2,010 | |
| 150 | 6.3 X 7 | 0.12 | 189 | 30 | 2,250 | |
| 8 X 7 | 0.12 | 189 | 25 | 3,020 | ||
| 220 | 6.3 X 7 | 0.12 | 277 | 45 | 2,320 | |
| 8 X 7 | 0.12 | 277 | 25 | 3,020 | ||
| 330 | 10 X 8 | 0.12 | 416 | 20 | 4,130 | |
| 470 | 8 X 12 | 0.15 | 592 | 12 | 4,770 | |
| 10 X 8 | 0.12 | 592 | 20 | 4,130 | ||
| 560 | 10 X 10 | 0.15 | 706 | 16 | 4,700 | |
| 820 | 10 X 13 | 0.15 | 1,033 | 10 | 5,500 |
Dimensio & LICENTIOSUS CRISPUS current Cont'd
| W.V. (V) | Capacitas
(µF) |
Magnitudo
Dxl(mm) |
Tan
(120HZ, 20°C) |
L.c..
(mmA) |
E.S.R.
(m¿•/ad 100K ~ 300K Hz, 20°C MAX) |
R.C Ratum.
(mA/rms at 100KHz, 105°C) |
|
10V (1A) |
56 | 6.3 X 6 | 0.10 | 112 | 31 | 2,250 |
| 150 | 8 X 7 | 0.10 | 300 | 27 | 2,800 | |
| 330 | 10 X 8 | 0.10 | 660 | 24 | 3,770 | |
| 330 | 8 X 12 | 0.15 | 660 | 14 | 4,420 | |
| 470 | 10 X 10 | 0.15 | 940 | 18 | 4,400 | |
| 560 | 10 X 13 | 0.15 | 1,120 | 12 | 5,300 | |
|
16V (1C) |
47 | 6.3 X 6 | 0.10 | 150 | 50 | 1,650 |
| 82 | 8 X 7 | 0.10 | 262 | 30 | 2,700 | |
| 180 | 8 X 12 | 0.15 | 576 | 16 | 4,360 | |
| 10 X 8 | 0.10 | 576 | 26 | 3,430 | ||
| 220 | 10 X 10 | 0.15 | 704 | 20 | 4,200 | |
| 330 | 10 X 13 | 0.15 | 1,056 | 14 | 5,050 | |
|
20V (1D) |
22 | 6.3 X 6 | 0.10 | 88 | 50 | 1,650 |
| 47 | 8 X 7 | 0.10 | 188 | 45 | 2,000 | |
| 82 | 10 X 8 | 0.10 | 328 | 40 | 2,500 | |
| 100 | 8 X 12 | 0.15 | 400 | 24 | 3,320 | |
| 10 X 10 | 0.15 | 400 | 25 | 3,700 | ||
| 150 | 10 X 13 | 0.15 | 608 | 20 | 4,320 | |
|
25V (1E) |
7 | 6.3 X 6 | 0.10 | 170 | 80 | 1,200 |
| 33 | 8 X 12 | 0.12 | 413 | 30 | 2,980 | |
| 56 | 10 X 13 | 0.12 | 700 | 28 | 3,800 |

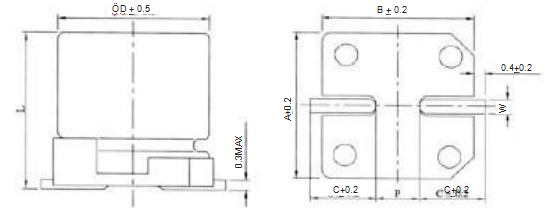

Pad spacing diameter
| O.D | L | A | B | C | W | P+0.2 |
| 6.3 | 6.0 + 0.2 | 6.6 | 6.6 | 2.7 | 0.5 ut 0.8 | 2.0 |
| 6.3 | 7.0 + 0.2 | 6.6 | 6.6 | 2.7 | 0.5 ut 0.8 | 2.0 |
| 8 | 7.0 + 0.2 | 8.4 | 8.4 | 3.0 | 0.7 ut 1.1 | 2.3 |
| 8 | 11.8 + 0.5 | 8.4 | 8.4 | 3.0 | 0.7 ut 1.1 | 3.1 |
| 10 | 8.0 + 0.2 | 10.4 | 10.4 | 3.3 | 0.7 ut 1.1 | 4.7 |
| 10 | 10.0 + 0.5 | 10.4 | 10.4 | 3.3 | 0.7 ut 1.1 | 4.7 |
| 10 | 12.7 + 0.5 | 10.4 | 10.4 | 3.3 | 0.7 ut 1.1 | 4.7 |
Features
◆ CV ° C,2000 Horas.
Ultra Minimum ESR,solidum capacitorsof SMD genus
◆ Rohs obsequio
