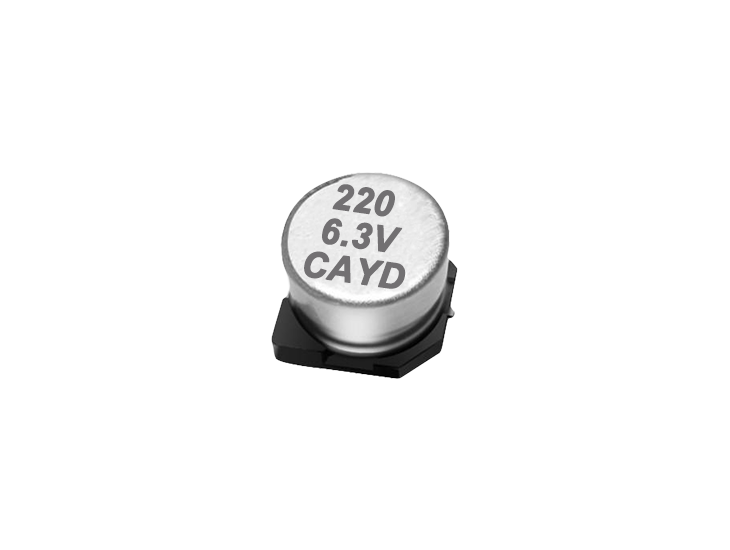

Smd organesch veruerteegt Polymer elektrolytic Maditors ▏125 ℃ ℃Cayd
FONTassementer
•125°C,2,000 Stonnen geséchert.
• Ultra LowESR
•RoHSCompliance
•125°C,2,000 Stonnen geséchert.
• Ultra LowESR
•RoHSCompliance
DIMENSIOUN & PERMISEBEL RIPPLE AKTUELL
| W.V.(VR) | Kapazitéit
(μF) |
Gréisst
DxL (mm) |
Tan
(120Hz,20 |
C) |
L.C..
(µA) |
(m¿/op |
E.S.
100k~300k |
R.
Hz, |
20° C |
MAX) |
Bewäert R.C.
(mA/rms bei 100KHz,125° C) |
||
| 680 | 8 | x | 12 | 0.18 | 340 | 13 | 1,430 | ||||||
| 2.5VR(0E) | 1000 | 10 | x | 10 | 0.18 | 500 | 13 | 1,645 | |||||
| 1500 | 10 | x | 13 | 0.18 | 750 | 13 | 1,721 | ||||||
| 560 | 8 | x | 12 | 0.18 | 448 | 13 | 1,430 | ||||||
| 4VR(0G) | 820 | 10 | x | 10 | 0.18 | 656 | 13 | 1,645 | |||||
| 1200 | 10 | x | 13 | 0.18 | 960 | 12 | 1,721 | ||||||
| 470 | 8 | x | 12 | 0.15 | 592 | 15 | 1,332 | ||||||
| 6.3VR(0Jin) | 560 | 10 | x | 10 | 0.15 | 706 | 16 | 1,487 | |||||
| 820 | 10 | x | 13 | 0.15 | 1,033 | 12 | 1,721 | ||||||
| 330 | 8 | x | 12 | 0.15 | 660 | 17 | 1,250 | ||||||
| 10VR(1A K)) | 470 | 10 | x | 10 | 0.15 | 940 | 18 | 1,392 | |||||
| 560 | 10 | x | 13 | 0.15 | 1,360 | 13 | 1,655 | ||||||
| 180 | 8 | x | 12 | 0.15 | 576 | 20 | 1,151 | ||||||
| 16VR(1C) | 220 | 10 | x | 10 | 0.15 | 704 | 20 | 1,400 | |||||
| 330 | 10 | x | 13 | 0.15 | 1,056 | 16 | 1,493 | ||||||

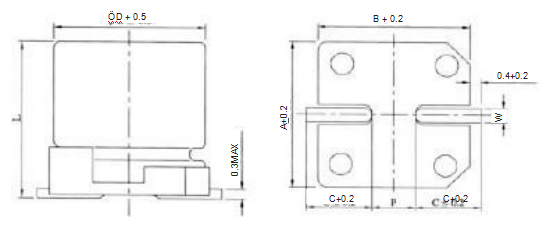

PAD SPACING AN DIAMETER
| D | L | A K) | Elz | C | W-W | P+0,2 |
| 8 | 11.8 + 0.5 | 8.4 | 8.4 | 3.0 | 0.7 zu 1.1 | 3.1 |
| 10 | 10.0 + 0.5 | 10.4 | 10.4 | 3.3 | 0.7 zu 1.1 | 4.7 |
| 10 | 12.7 + 0.5 | 10.4 | 10.4 | 3.3 | 0.7 zu 1.1 | 4.7 |
FONTassementer
◆ 125°C,2,000Stonnen assuréiert.
◆ Ultra Low ESR
◆ RoHS Konformitéit
