Metalliséiert polyester Filmveruertung |Héich Fiichtegkeet Resistenz | Cdac
CDAC Serie si mat metalliséiertem Polyesterfilm-Dielektrik gebaut, Kupferbläi an Epoxyharzbeschichtung. Si si gëeegent fir ze blockéieren, Kopplung, découpling, feicher, Contournement Timing Circuit an ideal fir benotzen an Daten / Telekommunikatioun Equipement, industriell Instrument, automatesch Kontrollsystemer an aner allgemeng elektronesch Applikatioun.
FONTassementer
◆ Operatioun Temp. Range :-40°C~105°C (V R Derates 1.25% pro °C iwwer 85 °C)
◆ Kapazitéit Range:0.1~10 uF
◆ Kapazitéit Toleranz: J=5% K=10% M=20%
◆ Nominell Volt V R 85 ° C: 100V 250V 400V 630V
◆ Dissipatioun Faktor: 1% MAX @1KHZ 25℃

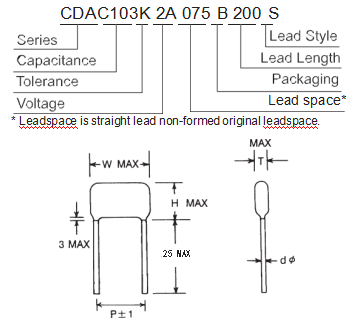

Deel Zuel Beispill
Trimitik Code
| F an | 0.01 | 0.047 | 0.1 | 0.47 | 1.0 | 4.7 | 10 |
| pf | 10000 | 47000 | 100000 | 470000 | – | – | – |
| CODE CODEN | 103 | 473 | 104 | 474 | 105 | 475 | 106 |
Bewäerten Voltage
| WV | 100 | 250 | 400 | 630 |
| CODE CODEN | 2A K) | 2E | 2G | 2Jin |
| Meth | d | Bulk | Munitioun | Reel |
| CODE CODEN | Elz | A K) | R | |
| Spac | g | 7.5mm | 10mm | 15mm |
| Verpakung | A oder R | A K) | A K) | |
| CODE CODEN | RT2 | Rt3 | RT 4 | |
Radial Lead Spacing
* Leadspace ass riicht falen net geformt Original Leadspace.
| mm | 7.5 | 10 | 15 | 20 | 27.5 | 32.5 | 37.5 | 42.5 | |
| CODE CODEN | 075 | 100 | 150 | 200 | 275 | 325 | 375 | 425 | |
Lead Längt vum Sëtzfliger
| mm | 5 | 10 | 15 | 20 | 25 |
| CODE CODEN | 050 | 100 | 150 | 200 | 250 |
LEAD STYLE
| CODE CODEN | Stil |
| S | Riichtaus |
| K St | Kink-In (Stand Off) |
| F an | Form eraus |
| ech | Form an |
MAXIMUM Dimensiounen (mm)
| (μF) |
CODE CODEN |
W-W | H H H | T | P | d F | W-W | H H H | T | P | dΦ | W-W | H H H | T | P | dΦ | W-W | H H H | T | P | dΦ |
| 0.01 | 103 | 10.5 | 9.0 | 5.5 | 7.5 | 0.6 | 10.5 | 9.0 | 5.5 | 7.5 | 0.6 | 10.5 | 9.0 | 5.5 | 7.5 | 0.6 | 13.0 | 10.0 | 6.0 | 10.0 | 0.6 |
| 0.015 | 153 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 10.5 | 6.5 | 10.0 | 0.6 |
| 0.022 | 223 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 9.5 | 6.0 | 10.0 | 0.6 | 13.0 | 12.5 | 7.5 | 10.0 | 0.6 |
| 0.033 | 333 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 10.0 | 6.5 | 10.0 | 0.6 | 18.5 | 12.0 | 6.5 | 15.0 | 0.6 |
| 0.047 | 473 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 12.0 | 7.0 | 10.0 | 0.6 | 18.5 | 12.5 | 7.5 | 15.0 | 0.6 |
| 0.068 | 683 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 10.0 | 6.5 | 7.5 | 0.6 | 13.0 | 13.0 | 8.0 | 10.0 | 0.6 | 18.5 | 14.0 | 8.5 | 15.0 | 0.8 |
| 0.1 | 104 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 10.0 | 6.5 | 10.0 | 0.6 | 18.0 | 12.5 | 7.0 | 15.0 | 0.8 | 18.5 | 14.5 | 10.0 | 15.0 | 0.8 |
| 0.15 | 154 | 13.0 | 9.0 | 5.5 | 10.0 | 0.6 | 18.5 | 11.0 | 6.0 | 15.0 | 0.6 | 18.5 | 13.5 | 8.0 | 15.0 | 0.8 | 23.0 | 15.0 | 9.5 | 20.0 | 0.8 |
| 0.22 | 224 | 13.0 | 10.0 | 6.5 | 10.0 | 0.6 | 18.5 | 11.5 | 6.5 | 15.0 | 0.6 | 22.5 | 14.5 | 8.0 | 20.0 | 0.8 | 23.0 | 15.5 | 10.0 | 20.0 | 0.8 |
| 0.33 | 334 | 13.0 | 11.5 | 8.0 | 10.0 | 0.6 | 18.5 | 12.0 | 7.0 | 15.0 | 0.8 | 22.5 | 15.0 | 9.0 | 20.0 | 0.8 | 32.0 | 19.0 | 12.0 | 27.5 | 0.8 |
| 0.47 | 474 | 18.5 | 11.0 | 6.0 | 15.0 | 0.6 | 22.5 | 12.5 | 7.5 | 20.0 | 0.8 | 22.5 | 18.5 | 11.5 | 20.0 | 0.8 | 32.0 | 22.0 | 13.5 | 27.5 | 0.8 |
| 0.68 | 684 | 18.5 | 12.5 | 7.5 | 15.0 | 0.6 | 22.5 | 13.5 | 8.5 | 20.0 | 0.8 | 32.0 | 19.0 | 12.0 | 27.5 | 0.8 | 36.0 | 22.5 | 14.5 | 32.5 | 0.8 |
| 1 | 105 | 18.5 | 13.5 | 8.5 | 15.0 | 0.8 | 22.5 | 15.0 | 10.0 | 20.0 | 0.8 | 32.0 | 21.5 | 13.5 | 27.5 | 0.8 | 36.0 | 29.0 | 16.0 | 32.5 | 0.8 |
| 1.5 | 155 | 22.5 | 14.5 | 8.0 | 20.0 | 0.8 | 32.0 | 17.5 | 9.5 | 27.5 | 0.8 | 36.0 | 23.5 | 14.0 | 32.5 | 0.8 | 42.0 | 29.5 | 18.5 | 37.5 | 1.0 |
| 2.2 | 225 | 22.5 | 16.5 | 10.0 | 20.0 | 0.8 | 32.0 | 19.0 | 10.5 | 27.5 | 0.8 | 36.0 | 27.5 | 18.5 | 32.5 | 0.8 | 46.0 | 32.5 | 20.5 | 42.5 | 1.0 |
| 3.3 | 335 | 22.5 | 20.0 | 12.0 | 20.0 | 0.8 | 32.0 | 23.0 | 13.5 | 27.5 | 0.8 | 42.0 | 30.5 | 18.5 | 37.5 | 1.0 | |||||
| 4.7 | 475 | 22.5 | 21.5 | 14.0 | 20.0 | 0.8 | 36.0 | 24.0 | 14.0 | 32.5 | 0.8 | 46.0 | 34.0 | 22.0 | 42.5 | 1.0 | |||||
| 6.8 | 685 | 32.0 | 23.5 | 14.5 | 27.5 | 0.8 | 42.0 | 27.0 | 16.0 | 37.5 | 1.0 | ||||||||||
| 10 | 106 | 32.0 | 29.0 | 18.0 | 27.5 | 0.8 | 42.0 | 35.0 | 19.0 | 37.5 | 1.0 |
Performech
| Artikel iwwert d'Säit | Metalliséiert Polyester |
| Kapazitéit Drift | Zyklus duerch d'Betribstemperaturberäich 2% |
| Fiichtegkeet Test | Wäert den Test vun R.H. 95% bei 40°C fir 1000 Stonnen. C < 5% DF < 1.2% AN > 10000M |
| Laascht Test | Wäert engem Test Volt widderstoen um 140% vum W.V. fir 1000 Stonnen um 85 ° C. C< 5% DF < 1.2% AN > 5000M |
| Lead Pull Test | Wäert e Pull vun 1,5Kg axial applizéiert widderstoen fir 10 Sekonnen |
|
Lead Bend Test |
Will sustain two cycles without breaking when attaching a load of 0.5Kg to the end of the lead and then rotating the capacitor 90°C from the direction of lead egress. Then 180°C in opposite direction. Then back to the starting point. |
| Solderability | Immersed in molten solder 230 + 0.5sec. After testing, the wound lead and gap in the wound lead will be covered and filled by solder. Will be difficult to unwind by finger. |
| Dielektresch Kraaft | Shall withstand 200% oder 160% of rated voltage at 25°C for 1 minute with current limiting resistance of 1 / VR |
Schlofden
D'Gebitt ënner der Kurve ass déi recommandéiert SOLDING TIDERS & temp. Fir d'Materialien gewisen.
Aféierung
CDAC Serie si mat metalliséiertem Polyesterfilm-Dielektrik gebaut, Kupferbläi an Epoxyharzbeschichtung. Si si gëeegent fir ze blockéieren, Kopplung, découpling, feicher, Contournement Timing Circuit an ideal fir benotzen an Daten / Telekommunikatioun Equipement, industriell Instrument, automatesch Kontrollsystemer an aner allgemeng elektronesch Applikatioun.
