SMD Aluminium Elektrolytesch Kondensatoren ▏125℃ Héichtemperatur ▏CAMA
FONTassementer
High Temperature Range up to +125°C
For automobile modules and other high temperature applications
RoHS konform
High Temperature Range up to +125°C
For automobile modules and other high temperature applications
RoHS konform
Spezifikatioune
| Artikelen | Performech | |||||||||
| Operatioun Temperatur Beräich | 10 ~ 50V | |||||||||
| 40 °C ~ +125 ° C | ||||||||||
| Trimitatanz Toleranz | +20% | |||||||||
| Leckaktuell (op 20 ° C) | I = 0.03CV or 4 (µA) wat och ëmmer méi grouss ass (no 1 Minutt) Where C
= rated capacitance in µF. V = Bewäert DC Aarbechtsspannung a V. |
|||||||||
| Dissipization Faktor (Tan δ bei 120Hz, 20 ° C) | Bewäert
Spannung |
10 | 16 | 25 | 35 | 50 | ||||
| Tan δ (max) | 0.32 | 0.24 | 0.21 | 0.18 | 0.18 | |||||
|
Niddereg Temperatur Charakteristiken (an 120 Hz) |
Impedanzverhältnis däerf d'Wäerter net iwwerschreiden, déi an der Tabell hei ënnen uginn. | |||||||||
| Bewäert Spannung | 10 | 16 | 25 | 35 | 50 | |||||
| Impedanz
Verhältnis |
Z (-40 ° C)/Z(+20 ° C) | 5 | 4 | 3 | 3 | 3 | ||||
|
Lued Liewen Test |
Test Zäit | 1,000 Hrs | ||||||||
| Kapazitéit änneren | Bannen +30% vun initial Wäert | |||||||||
| Dissipization Faktor | Manner wéi 300% vum spezifizéierte Wäert | |||||||||
| Leckaktuell | Bannent spezifizéierte Wäert | |||||||||
| * Déi uewe genannte Spezifikatioune sinn zefridden wann d'Kondensatore restauréiert ginn 20 °C after the rated
voltage applied for 1,000 h kl 125 ° C |
||||||||||
| Regal Liewen Test | Test Zäit: 1,000 hrs; aner Elementer sinn déi selwecht wéi déi fir d'Laascht Liewen Test. | |||||||||
| Aner Standarden | JIS C 5101-1, -18 | |||||||||
DIMENSIOUN & PERMISEBEL RIPPLE AKTUELL
Dimensioun: φD x L(mm)
Ripple Current mA/rms at 120KHz, 125° C
| V.DC | 10VR (1A K)) | 16VR (1C) | 25VR (1E) | 35VR (1VR) | 50VR (1H H H) | ||||||
| μF | Inhalter | D x L | mA | D x L | mA | D x L | mA | D x L | mA | D x L | mA |
| 33 | 330 | 6.3 x 5.7 | 50 | 6.3 x 5.7 | 50 | 6.3 x 7.7 | 70 | 8 x 10 | 130 | ||
| 47 | 470 | 6.3 x 5.7 | 70 | 6.3 x 7.7 | 70 | 8 x 6.5 | 75 | 8 x 10 | 130 | ||
| 100 | 101 | 8.0 x 6.5 | 78 | 8 x 6.5 | 75 | 8 x 10 | 134 | 10 x 10 | 182 | 12.5 x 13.5 | 357 |
| 220 | 221 | 8.0 x 10 | 131 | 10 x 10 | 181 | 10 x 10 | 181 | 12.5 x 13.5 | 357 | 12.5 x 16 | 401 |
| 330 | 331 | 8.0 x 10 | 131 | 12.5 x 13.5 | 480 | 12.5 x 13.5 | 480 | 16 x 16.5 | 650 | 16 x 16.5 | 652 |
| 470 | 471 | 12.5 x 13.5 | 480 | 12.5 x 13.5 | 480 | 12.5 x 13.5 | 480 | 16 x 16.5 | 650 | ||
| 680 | 681 | 12.5 x 13.5 | 480 | 12.5 x 13.5 | 480 | 12.5 x 16 | 585 | 16 x 16.5 | 650 | ||
| 1,000 | 102 | 12.5 x 16 | 585 | 12.5 x 16 | 589 | 16 x 16.5 | 650 | 18 x 16.5 | 855 | ||

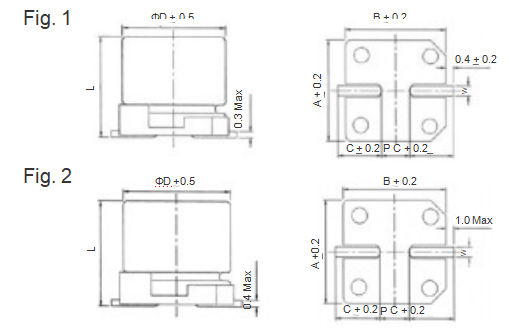

PAD SPACING AN DIAMETER
| ΦD | L | A K) | Elz | C | W-W | P±0.2 | Fig.
Nee. |
| 8 | 10.0 + 0.5 | 8.4 | 8.4 | 3.0 | 0.7 zu 1.1 | 3.1 | 1 |
| 10 | 10.0 + 0.5 | 10.4 | 10.4 | 3.3 | 0.7 zu 1.1 | 4.7 | 1 |
| 12.5 | 13.0 + 0.5 | 12.8 | 12.8 | 4.9 | 1.1 zu 1.4 | 4.2 | 2 |
| 12.5 | 16.0 + 0.5 | 12.8 | 12.8 | 4.9 | 1.1 zu 1.4 | 4.2 | 2 |
| 16 | 16.5 + 0.5 | 16.3 | 16.3 | 5.8 | 1.1 zu 1.4 | 6.0 | 2 |
Deel Zuel Beispill
CAMA 221 M 1A TR 080 100
