Super Capacitors Safon Safon ▏edlc ▏ceaaa
Nodweddion
•Cynnyrch safonol
•Tâl cyflym & gollyngiad
•Cydymffurfio â RoHS
•Cyfrifiadur & perifferolion
•Modemau DSL & llwybryddion
• Darllenydd mesurydd yn awtomatig
•Cynnyrch safonol
•Tâl cyflym & gollyngiad
•Cydymffurfio â RoHS
•Cyfrifiadur & perifferolion
•Modemau DSL & llwybryddion
• Darllenydd mesurydd yn awtomatig
Dimensiynau
Safonol Graddfeydd canys CEAA Cyfresi
| UR
(Foltedd Ymchwydd) Codiff |
Wedi'i raddio Cap. 25℃, |
ESRAC (1KHz) |
Gollyngiad Cyfredol (72awr) |
Maint | P/N | |||||||
| D | h | P |
H1 |
H2 |
B | C | E | |||||
| (v) | (F) | (O) | (mA) | (mm) | – | |||||||
|

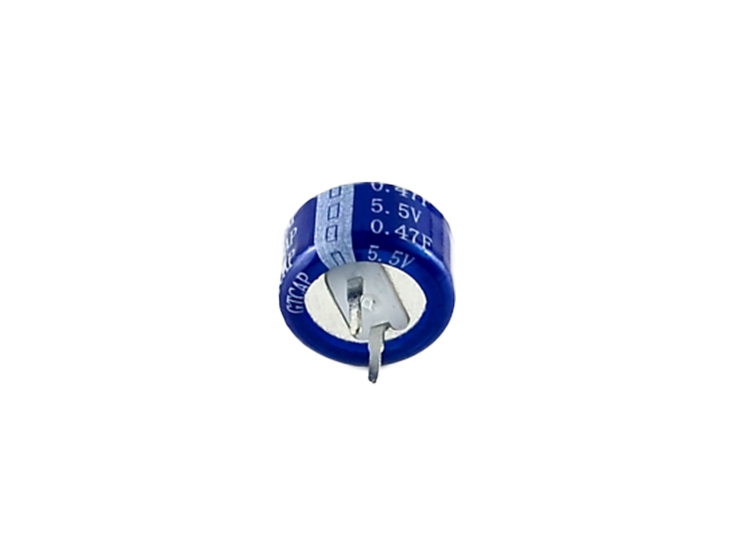

5.5 (6) 5R5
C-MATH |
0.1 | 75 | 0.003 | 13.5 | 7.0 | 5.0 | 12.5 | 13.5 | 0.4 | 0.8 | 1.2 | CEAA5R5104ZC135070 |
| 0.22 | 75 | 0.003 | 13.5 | 7.0 | 5.0 | 12.5 | 13.5 | 0.4 | 0.8 | 1.2 | CEAA5R5224ZC135070 | |
| 0.33 | 50 | 0.005 | 13.5 | 7.0 | 5.0 | 12.5 | 13.5 | 0.4 | 0.8 | 1.2 | CEAA5R5334ZC135070 | |
| 0.47 | 50 | 0.005 | 13.5 | 7.0 | 5.0 | 12.5 | 13.5 | 0.4 | 0.8 | 1.2 | CEAA5R5474ZC135070 | |
| 1.0 | 30 | 0.008 | 20.5 | 7.5 | 5.0 | 12.0 | 12.5 | 0.4 | 0.8 | 1.2 | CEAA5R5105ZC205075 | |
| 1.5 | 30 | 0.008 | 20.5 | 7.5 | 5.0 | 12.0 | 12.5 | 0.4 | 0.8 | 1.2 | CEAA5R5155ZC205075 | |
| UR
(Foltedd Ymchwydd) Codiff |
Wedi'i raddio Cap. 25℃, |
ESRAC (1KHz) |
Gollyngiad Cyfredol (72awr) |
Maint | P/N | |||||||
| D | h | P |
H1 |
H2 |
A | B | C | |||||
| (v) | (F) | (O) | (mA) | (mm) | – | |||||||
|

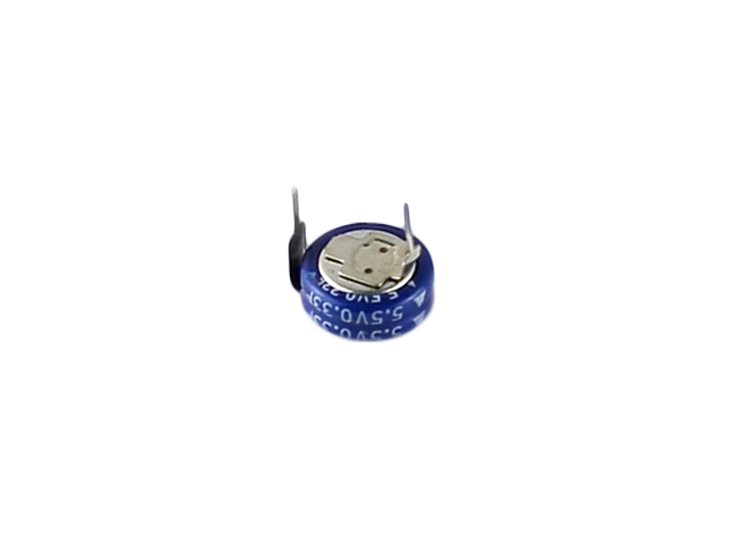

5.5 (6) 5R5
H-MATH |
0.1 | 75 | 0.003 | 11.5 | 4.5 | 10 | 6 | 9 | 12.5 | 0.2 | 0.8 | CEAA5R5104ZH115045 |
| 0.22 | 75 | 0.003 | 11.5 | 4.5 | 10 | 6 | 9 | 12.5 | 0.2 | 0.8 | CEAA5R5224ZH115045 | |
| 0.33 | 50 | 0.005 | 11.5 | 4.5 | 10 | 6 | 9 | 12.5 | 0.2 | 0.8 | CEAA5R5334ZH115045 | |
| 0.47 | 50 | 0.005 | 11.5 | 4.5 | 10 | 6 | 9 | 12.5 | 0.2 | 0.8 | CEAA5R5474ZH115045 | |
| 1.0 | 30 | 0.008 | 19 | 4.5 | 20 | 7 | 9.5 | 20 | 0.2 | 1.0 | CEAA5R5105ZH190045 | |
| 1.5 | 30 | 0.008 | 19 | 4.5 | 20 | 7 | 9.5 | 20 | 0.2 | 1.0 | CEAA5R5155ZH190045 | |
| UR
(Foltedd Ymchwydd) Codiff |
Wedi'i raddio Cap. 25℃, |
ESRAC (1KHz) |
Gollyngiad Cyfredol (72awr) |
Maint | P/N | |||||||
| D | h | P |
H1 |
H2 |
B | C | ||||||
| (v) | (F) | (O) | (mA) | (mm) | – | |||||||
|

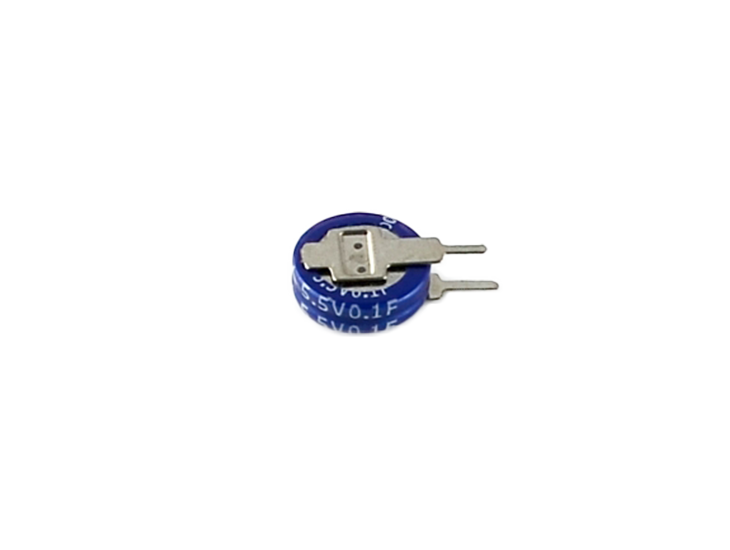

5.5 (6) 5R5
V-MATH |
0.1 | 75 | 0.003 | 11.5 | 4.5 | 5 | 13 | 16.5 | 0.2 | 0.8 | CEAA5R5104ZV115045 | |
| 0.22 | 75 | 0.003 | 11.5 | 4.5 | 5 | 13 | 16.5 | 0.2 | 0.8 | CEAA5R5224ZV115045 | ||
| 0.33 | 50 | 0.005 | 11.5 | 4.5 | 5 | 13 | 16.5 | 0.2 | 0.8 | CEAA5R5334ZV115045 | ||
| 0.47 | 50 | 0.005 | 11.5 | 4.5 | 5 | 13 | 16.5 | 0.2 | 0.8 | CEAA5R5474ZV115045 | ||
| 1.0 | 30 | 0.008 | 19 | 4.5 | 5 | 20.5 | 25.5 | 0.2 | 0.8 | CEAA5R5105ZV190045 | ||
| 1.5 | 30 | 0.008 | 19 | 4.5 | 5 | 20.5 | 25.5 | 0.2 | 0.8 | CEAA5R5155ZV190045 | ||
RHAN RHIF ENGHRAIFFT
CEAA 5R5 104 Z V 115004 E
NODWEDDION
⚫ Cynnyrch safonol
⚫ Tâl cyflym & gollyngiad
⚫ Cyfrifiadur &perifferolion
⚫ modemau DSL & llwybryddion
⚫ Darllenydd mesurydd awtomatig
⚫ Rohs yn Cydymffurfio
