Cynhwysydd cerameg amlhaenog arweiniol echelinol | CCCA
NODWEDDION
◆ Conformal coated, miniature sizes, 0.3pf – 2.2uF
◆ Wide range of capacitance, goddefgarwch, TC, and voltage
◆ C0G (NP0), X7r, Cyfernodau tymheredd Z5U a Y5V
◆ Popular values available from stock
MANYLION
| Jinpei
Math |
WVDC1 |
YSTOD CAPACITANCE |
L (Body Length, Max) |
D (Body Diameter, Max) |
d (Lead Dia) |
||
| C0G (NPO) | X7r | Z5U/Y5V 2 | |||||
|
CCCA05 |
25
50 100 |
0.3 – 1000pf
0.3 – 1000pf 0.5 – 820pf |
100pf – 0.15uF
100pf- 0.10uF 100pf- 0.01uF |
1000pf – 1.0uF
1000pf – 0.47uF 1000pf- 0.068uF |
0.150
[3.8] |
.100
[2.54] |
018 ±.003
[0.45 ±.08] |
|
CCCA10 |
25
50 100 |
0.5 – 2700pf
0.5 – 2200pf 0.5 – 1000pf |
100pf – 0.22uF
100pf- 0.10uF 100pf- 0.033uF |
1000pf – 1.2uF
1000pf – 1.0uF 1000pf- 0.10uF |
0.170
[4.32] |
.100
[2.54] |
.018 ±.003
[0.45 ±.08] |
|
CCCA12 |
25
50 100 |
0.5 – 5600pf
0.5 – 4700pf 0.5 – 3300pf |
100pf – 1.0uF
100pf- 0.47uF 100pf- 0.10uF |
1000pf – 2.2uF
1000pf – 1.0uF 1000pf- 0.10uF |
0.200
[5.1] |
.118
[3.0] |
.018 ± .003
[0.45 ± .08] |
DIELECTRIC CHARACTERISTICS (nodweddiadol)
| EITEM | COG (NPO) | X7r | Y5V (Z5U) 2 |
| Cap. Amrediad, gwerthoedd E12 | 0.3 pf- 5,600 pf | 100 pf – 1uF | 1,000 pf – 2.2uF |
| Goddefgarwch Capacitance | <10pf: ±.1pF, .25pf, .5pf (std)
10pf: ± 1%, ± 2%, ± 5%(std),± 10% |
± 5%, ± 10% (std),
± 20% |
± 20% (std), +80/- 20% |
| Amrediad Tymheredd Gweithredu | -55° C i +125 ° C. | -55° C i +125 ° C. | -30°C i +85°C |
| Nodweddion Tymheredd | 0 ± 30ppm/°C 3 | ±15% ar y mwyaf dros ystod op.temp | +22%/-82%(+22%/-56%)
uchafswm dros ystod y tymheredd gweithredu |
| Heneiddio (colli cap/degawd awr) | dibwys | 2% | 7% |
| Foltedd Coef ( C@ max V) | dibwys | -50% i+10% teip | -80% i+20% teip |
| Ffactor Afradu (1KHz) | 0.15% (+25°C & +125°C)
1.0VRMS, 1MHz ar gyfer gwerthoedd<1000pf |
2.5% Max., 1VRMS | 4.0% Max. 0.5 VRMS |
| Gwrthiant Inswleiddio 25°C
(MIL-STD-202-DULL-302) |
100G or 1000M -uF
pa un bynnag sydd leiaf |
100G or 1000M -uF
pa un bynnag sydd leiaf |
10G or 1000M -uF
pa un bynnag sydd leiaf |
| Cryfder Dielectric | 2.5x VDC â sgôr | 2.5x VDC â sgôr | 2.5x VDC â sgôr |
| Prawf Bywyd (1000 oriau) | 2x foltedd graddedig @+125°C
C<3% neu wig 0.25pF |
2x foltedd graddedig ar +125°C
C<20% |
1.5x foltedd graddedig ar +85°C
C<30% |
Cyflwyniad
High-density multi-layer construction enabling an expanded
range of values. Bodies are insulated with a proprietary
flame retardant epoxy coating for superior environmental
protection and dielectric strength. Gwerthoedd ansafonol,

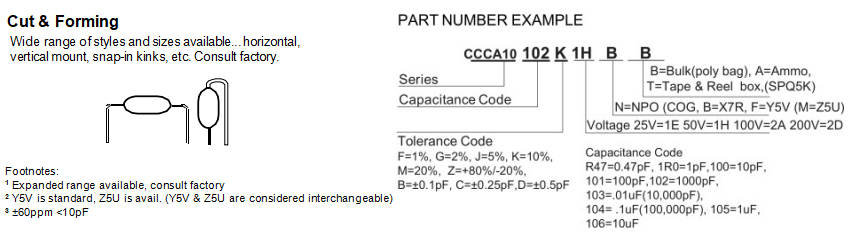

increased voltage ratings, marcio arferiad, sgrinio milwrol,
torri & ffurfio arweinwyr, etc., ar gael. Matched sets and
networks also available.
