Chip Tantalum Cynwysyddion SMD ▏General & ESR isel ▏cbaa CBAB
Epocsi wedi'i fowldio, UL94V-0 Gwrth Fflam
Perfformiad lleithder ac ymchwydd rhagorol
Cerrynt gollyngiadau isel
-55Amrediad tymheredd gweithredu ° i +125 ° C
Ystod cynhwysedd estynedig a dyluniadau proffil isel ar gael
Mae Jinpei yn darparu perfformiad uwch ac ystod cynhwysedd eang o ganlyniad i wlithen solet o bowdrau tantalwm enillion uchel wedi'u sintro o dan wactod. Mae'r mowldio epocsi gwrth-fflam yn sicrhau'r amddiffyniad amgylcheddol gorau posibl a chryfder dielectrig. Gwerthoedd ansafonol, pecynnau proffil isel, marcio arferiad, sgrinio milwrol, ffiwsadwy, etc., ar gael.

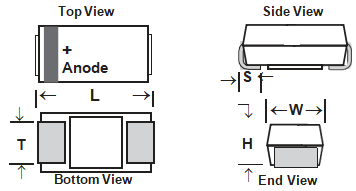

DIMENSIYNAU (fersiwn proffil isel ar gael hefyd)
| MAINT ACHOS | L | W | H | T | S |
| S (0805)
[2012] |
.079±.008
[2 ±0.2] |
.049±.008
[1.25±0.2] |
.047±.008
[1.2±0.2] |
.043±.008
[1.1±0.2] |
.020±.012
[.5±0.3] |
| A (1206)
[3216] |
.126±.008
[3.2±0.2] |
.063±.008
[1.6±0.2] |
063±.008
[1.6±0.2] |
.047±.008
[1.2±0.2] |
.031±.012
[0.8±0.3] |
| B (1411)
[3528] |
.138±.008
[3.5±0.2] |
.110±.008
[2.8±0.2] |
.075±.008
[1.9±0.2] |
.087±.008
[2.2±0.2] |
.031±.012
[0.8±0.3] |
| C (2412)
[6032] |
.236±.012
[6.0±0.3] |
.126±.012
[3.2±0.3] |
.098±.012
[2.5±0.3] |
.087±.008
[2.2±0.2] |
.051±.012
[1.3±0.3] |
| D (2917)
[7343] |
.287±.012
[7.3±0.3] |
.169±.012
[4.3±0.3] |
.110±.012
[2.8±0.3] |
.094±.008
[2.4±0.2] |
.051±.012
[1.3±0.3] |
| E(2917H) [7343H] | .287±.012
[7.3±0.3] |
169±.012
[4.3±0.3] |
.162±.012
[4.1±0.3] |
.094±.008
[2.4±0.2] |
.051±.012
[1.3±0.3] |
GALLU SAFONOL AC ESR (W) GWERTHOEDD (amrediad gwerth estynedig ar gael ym mhob maint, ESR yw typ.)
| VoltRating 85°C2 | 4VDC(5V Ymchwydd) | 6.3VDC(8V Ymchwydd) | 10VDC(13V Ymchwydd) | 16VDC(20V Ymchwydd) | 20VDC(26V Ymchwydd) | 25VDC(33V Ymchwydd) | 35VDC(46V Ymchwydd) | 50VDC(65V Ymchwydd) | |||||||||||||||||
| uF | Codiff | Maint yr Achos | CBAA
ESR |
CBAB
ESR |
Achos
Maint |
CBAA
ESR |
CBAB
ESR |
Maint yr Achos | CBAA
ESR |
CBAB
ESR |
Maint yr Achos | CBAA
ESR |
CBAB
ESR |
Maint yr Achos | CBAA
ESR |
CBAB
ESR |
Maint yr Achos | CBAA
ESR |
CBAB
ESR |
Maint yr Achos | CBAA
ESR |
CBAB
ESR |
Maint yr Achos | CBAA
ESR |
CBAB
ESR |
| 0.1 | 104 | S | 25 | A | 24 | 10 | A | 22 | 10 | ||||||||||||||||
| .15 | 154 | S | 25 | A | 21 | 6 | B/A | 17/15 | 10/10 | ||||||||||||||||
| .22 | 224 | S | 25 | A | 18 | 6 | B | 14 | 10 | ||||||||||||||||
| .33 | 334 | S | 25 | A | 15 | 6 | B | 12 | 2.5 | ||||||||||||||||
| .47 | 474 | S | 25 | S | 25 | A | 14 | 9 | B/A | 10/12 | 2.5/4 | C/B | 8 | 1.8/2.0 | |||||||||||
| .68 | 684 | S | 30 | S | 25 | A/S | 12/25 | 8/BOD | A | 10 | 6 | B | 8 | 2.5 | C/B | 7 | 1.6/3.0 | ||||||||
| 1.0 | 105 | A/S | 14/25 | A/S | 13/25 | A/S | 11/20 | 6/BOD | A | 9 | 5.5 | B/A | 7/8 | 2/4 | B | 6.5 | 2 | C | 5.5 | 1.6 | |||||
| 1.5 | 155 | S | 30 | A/S | 12/25 | A/S | 10 | 6/BOD | A/S | 8/12 | 6/BOD | B/A | 5/6.5 | NA/4.5 | B | 5 | 1.5 | C/B | 4.5/5.2 | 2.5/3 | D/C | 4/4.5 | 1/1.5 | ||
| 2.2 | 225 | S | 25 | A/S | 9/20 | 6/BOD | A/S | 7 | 6/BOD | B/A | 5.5/6.5 | NA/4 | B/A | 3.5/5.3 | 1.5/4 | B | 4.5 | 2.2 | C | 3.5 | 1.5 | D/C | 2.5 | .8/1.5 | |
| 3.3 | 335 | A/S | 9/20 | 4/BOD | A/S | 7/12 | 6/BOD | B/A | 5/5.5 | NA/4 | B/A | 4.5/5 | 2/4 | C/B | 2.5/3 | NA/1.3 | C | 2.8 | 1.2 | D/C | 2.0/2.5 | NA/.8 | D | 2.0 | .8 |
| 4.7 | 475 | A/S | 7.5/14 | 3.5/BOD | B/A | 5/6 | NA/3.5 | B/A | 4/5 | 1.5/3 | B/A | 3.5/4 | 1.5/3 | D/C | 2.5/2.8 | NA/.6 | C | 2.4 | .6 | D/C | 1.5/2.2 | .7/.7 | D/E | 1.4/.9 | .6 |
| 6.8 | 685 | B/A | 6/6.5 | NA/3 | B/A | 4/5 | 1.2/2 | B/A | 3/4 | 1.2/3 | C/B | 2.5/3.5 | .8/1.2 | D/C | 1.8/2 | NA/.6 | D/C | 1.4/2 | NA/.6 | D | 1.3 | .5 | E | .9 | .5 |
| 10 | 106 | B/A | 4/6 | 1.2/2 | B/A | 3/4 | 1/2 | B/A | 2.5/3 | .8/2 | C/B | 2/2.8 | .6/.8 | D | 1.3 | NA/.5 | D/C | 1.2/1.8 | .4/.6 | D | 1 | .4 | E | .9 | |
| 15 | 156 | B/A | 3.5/4 | 1.2/2 | C/B | 2.5/3.2 | .6/.7 | C/B | 2.2/2.8 | .5/.7 | C | 1.8 | .4 | D | 1.1 | .35 | D | 1 | .4 | E | .9 | .3 | E | .9 | |
| 22 | 226 | C/B | 2.5/3.2 | .5/.6 | C/B | 2/2.5 | .5/.6 | C/B | 1.8/2.4 | .4/.7 | D/C | 1.1/1.6 | .25/.35 | D | .9 | .3 | D | .9 | .4 | E | .9 | .3 | E | .9 | |
| 33 | 336 | C/B | 2.2/2.8 | .5/.5 | D/C | 1.3/1.8 | NA/.3 | D/C | 1.1/1.6 | .25/.3 | D/C | .9/1.5 | .25/.3 | D | .9 | .25 | E | .9 | .3 | E | .3 | ||||
| 47 | 476 | D/C | 1.3/1.8 | NA/.5 | D/C | 1.1/1.6 | .22/.25 | D/C | .9/1.2 | .22/.3 | D/C | .9/1.4 | .2/.3 | E/D | .9/.9 | NA/.2 | E | .9 | .3 | ||||||
| 68 | 686 | D/C | 1.1/1.6 | .2/.25 | D/C | .9/1.6 | .2/.2 | D | .9 | .2 | D | .9 | .15 | E | .9 | .2 | E | .9 | |||||||
| 100 | 107 | D/C | .9/1.3 | .2/.2 | D/C | .9/1.4 | .15/.3 | D | .9 | .15 | D/E | .9 | .15/.15 | E | .9 | .15 | E | .9 | |||||||
| 150 | 157 | D/C | .7/1.0 | .15/.3 | D | 1 | .15 | E | 1 | .15 | E | .9 | .15 | ||||||||||||
| 220 | 227 | D | .9 | .15 | E | 1 | .15 | E | .9 | .15 | E | .9 | |||||||||||||
| 330 | 337 | E | .9 | .15 | E | .9 | .15 | E | .9 | .1 | E | .9 | |||||||||||||
| 470 | 477 | E | .9 | .15 | E | .9 | .1 | E | .9 | E | .9 | ||||||||||||||
| 680 | 687 | E | .9 | .1 | E | .5 | .1 | E | .9 | E | .9 | ||||||||||||||
MANYLION
| GALLU
(120 Hz) |
ΔC O'R INITIAL@20°C | FFACTOR ANHWYLIO, TYP. | |||||
| -55°C | +85°C | +125°C | -55°C | +20°C | +85°C | +125°C | |
| <1.0μF |
-10% |
+10% |
+12% |
6% | 4% | 5% | 6% |
| 1.5 i68μF | 10% | 6% | 8% | 10% | |||
| 100 i 220μF | 12% | 8% | 10% | 12% | |||
| 330 i 680μF | 16% | 12% | 14% | 16% | |||
PACIO SAFON
| Maint yr Achos | 7” Rîl Qty, teip. | Lled Tâp | |
| S | 0805 [2012] | 2500 | 8mm |
| A | 1206 [3216] | 2000 | 8mm |
| B | 1411 [3528] | 2000 | 8mm |
| C | 2412 [6032] | 500 | 12mm |
| D | 2917 [7343] | 500 | 12mm |
| E | 2917H [7343H] | 400 | 12mm |
RHAN RHIF ENGHRAIFFT
Nodweddion
Epocsi wedi'i fowldio, UL94V-0 Gwrth Fflam;
Lleithder ardderchog a pherfformiad ymchwydd Cerrynt gollyngiadau isel;
-55 ° i + 125 ° C ystod tymheredd gweithredu;
Ystod cynhwysedd estynedig a dyluniadau proffil isel ar gael;
RoHS cydymffurfio
