Cynwysyddion Electrolytig Leakge Isel 85 ℃ ▏cabb
NODWEDDION
85℃
Gyfres gyfredol gollyngiadau isel safonol
MANYLION
| Eitem | Perfformiad | |||||||||||||
| CABB | CABB | |||||||||||||
| Bywyd | Ar 85°C 1000 oriau | Ar 85°C 2000 oriau | ||||||||||||
| Tymheredd Gweithredu | -40°C ~ +85°C | |||||||||||||
| Goddefgarwch Capacitance | ± 20% (120Hz, 20°C) | |||||||||||||
| Gollyngiad Cyfredol (ar 20°C) | I = 0.002CV neu 0.4 ( A) pa un bynnag sydd fwyaf
(ar ol 2 munudau) Lle, C = cynhwysedd graddedig mewn μF. V = foltedd gweithio DC â sgôr yn V. |
|||||||||||||
| Ffactor Dissipaton | Foltedd Cyfradd | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | |||||
| Felly δat 120 Hz, 20°C | Tan Δ (max) | 0.24 | 0.21 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | |||||
| Pan fydd y cynhwysedd yn fwy na 1000 μF 0.02 ychwanegir bob 1000 μF | ||||||||||||||
| Ni fydd y gymhareb rhwystriant yn fwy na'r gwerthoedd a roddir yn y tabl isod | ||||||||||||||
| Tymheredd Isel | Foltedd Cyfradd | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | |||||
| Nodweddion (ar 120 Hz) | Cymhareb rhwystriant | Z(-25°C)
/Z(+20°C) |
5 | 4 | 2 | 2 | 2 | 2 | 2 | 2 | ||||
| Z(-40°C)
/Z(+20°C) |
10 | 8 | 6 | 4 | 4 | 3 | 3 | 3 | ||||||
|
Llwyth Prawf Bywyd |
Amser Prawf | 1000 / 2000 oriau | Prawf Oes Silff | Amser Prawf | 1000 oriau | |||||||||
| Newid Cynhwysedd | ≤ ± 20% | Newid Cynhwysedd | ≤ ± 20% | |||||||||||
| Ffactor Afradu | Llai na 200% o werth penodedig | Ffactor Afradu | Llai na 200% o werth penodedig | |||||||||||
| Gollyngiad Cyfredol | O fewn gwerth penodol | Gollyngiad Cyfredol | O fewn gwerth penodol | |||||||||||
| Rhaid bodloni'r fanyleb pan fydd y cynwysyddion yn 10K i fyny
ei adfer i 20°C ar ôl gwneud cais am foltedd graddedig 1000/2000 awr ar 85°C. |
Rhaid bodloni'r fanyleb pan fydd y cynwysyddion yn cael eu hadfer i 20 ° C ar ôl eu hamlygu 1000
awr ar 85°C heb foltedd. |
|||||||||||||
|
Cyfredol Ripple & Lluosogwyr Amlder |
Freq. (Hz) |
120 |
500 |
1K |
Cyfredol Riple & | Tymheredd (°C) | Dan 50 | 70 | 85 | |||||
| Cap. ( F) | Lluosyddion Tymheredd | Lluosogwyr | 1.75 | 1.58 | 1.00 | |||||||||
| Dan 100 | 0.70 | 1.00 | 1.35 | 1.55 | 2.00 | |||||||||
| 220 i 1000 | 0.83 | 1.00 | 1.23 | 1.32 | 1.50 | |||||||||
| 2200 i fyny uchod | 0.90 | 1.00 | 1.12 | 1.10 | 1.15 | |||||||||
| Safonau | Bodloni Nodwedd W JIS C 5141 | |||||||||||||
DIMENSIYNAU A RHYFEDD CANIATÂD PRESENNOL
Dimensiwn: ΦD×L(mm) Cyfredol Ripple: mA/RMS ar 120Hz 85°C
| VDC
μF Codiff |
6.3V(0J) |
10V(1A) |
16V(1C) |
25V(1E) |
35V(1V) |
50V(1H) |
63V(1J) |
100V(2A) |
|||||||||
| DXL | mA | DXL | mA | DXL | mA | DXL | mA | DXL | mA | DXL | mA | DXL | mA | DXL | mA | ||
| 0.1 | 0R1 | 5 x 11 | 1.3 | 5 x 11 | 2.6 | ||||||||||||
| 0.22 | R22 | 5 x 11 | 2.9 | 5 x 11 | 5.8 | ||||||||||||
| 0.33 | R33 | 5 x 11 | 4.4 | 5 x 11 | 8.8 | ||||||||||||
| 0.47 | R47 | 5 x 11 | 7 | 5 x 11 | 12 | ||||||||||||
| 1 | 010 | 5 x 11 | 13 | 5 x 11 | 22 | ||||||||||||
| 2.2 | 2R2 | 5 x 11 | 29 | 5 x 11 | 33 | ||||||||||||
| 3.3 | 3R3 | 5 x 11 | 35 | 5 x 11 | 40 | ||||||||||||
| 4.7 | 4R7 | 5 x 11 | 31 | 5 x 11 | 40 | 5 x 11 | 42 | 5 x 11 | 45 | 5 x 11 | 48 | ||||||
| 10 | 100 | 5 x 11 | 44 | 5 x 11 | 54 | 5 x 11 | 58 | 5 x 11 | 65 | 5 x 11 | 70 | 6.3 x 11 | 80 | ||||
| 22 | 220 | 5 x 11 | 59 | 5 x 11 | 75 | 5 x 11 | 80 | 5 x 11 | 87 | 5 x 11 | 95 | 6.3 x 11 | 115 | 8 x 11.5 | 135 | ||
| 33 | 330 | 5 x 11 | 55 | 5 x 11 | 84 | 5 x 11 | 90 | 5 x 11 | 97 | 5 x 11 | 105 | 6.3 x 11 | 125 | 6.3 x 11 | 140 | 10 x 12.5 | 195 |
| 47 | 470 | 5 x 11 | 79 | 5 x 11 | 100 | 5 x 11 | 110 | 5 x 11 | 115 | 6.3 x 11 | 145 | 6.3 x 11 | 150 | 8 x 11.5 | 190 | 10 x 16 | 255 |
| 100 | 101 | 5 x 11 | 130 | 5 x 11 | 145 | 6.3 x 11 | 180 | 6.3 x 11 | 190 | 8 x 11.5 | 240 | 8 x 11.5 | 255 | 10 x 12.5 | 320 | 13 x 20 | 450 |
| 220 | 221 | 6.3 x 11 | 230 | 6.3 x 11 | 250 | 8 x 11.5 | 300 | 8 x 11.5 | 320 | 10 x 12.5 | 420 | 10 x 16 | 490 | 10 x 20 | 565 | 16 x 25 | 810 |
| 330 | 331 | 6.3 x 11 | 280 | 8 x 11.5 | 350 | 8 x 11.5 | 370 | 10 x 12.5 | 470 | 10 x 16 | 570 | 10 x 20 | 650 | 13 x 20 | 765 | 16 x 25 | 990 |
| 470 | 471 | 8 x 11.5 | 380 | 8 x 11.5 | 415 | 10 x 12.5 | 520 | 10 x 16 | 620 | 10 x 20 | 740 | 13 x 20 | 860 | 13 x 25 | 990 | 16 x 31.5 | 1250 |
| 1000 | 102 | 10 x 12.5 | 650 | 10 x 16 | 790 | 10 x 20 | 910 | 13 x 20 | 1090 | 13 x 25 | 1300 | 16 x 25 | 1530 | 16 x 31.5 | 1700 | ||
| 2200 | 222 | 13 x 20 | 1150 | 13 x 20 | 1240 | 13 x 25 | 1420 | 16 x 25 | 1660 | 16 x 31.5 | 1890 | 18 x 35.5 | 2160 | ||||
| 3300 | 332 | 13 x 20 | 1380 | 13 x 25 | 1590 | 16 x 25 | 1840 | 16 x 31.5 | 2070 | 18 x 35.5 | 2340 | ||||||
| 4700 | 472 | 16 x 25 | 1880 | 16 x 25 | 1980 | 16 x 31.5 | 2260 | 18 x 35.5 | 2520 | 18 x 40 | 2690 | ||||||
RHAN RHIF ENGHRAIFFT
CABB 220 M 1C BK 050 110

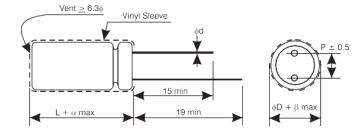

BYLCHAU ARWEINIOL A DIAMETER
| φd | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 |
| P | 2.0 | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 |
| φd | 0.5 | 0.6 | 0.8 | ||||
| a | 1.0 | 1.5 | |||||
| b | 0.5 | ||||||
NODWEDDION
◆ 85 ℃ 1,000 awr ▏2,000 awr
◆ Cerrynt gollyngiadau isel.
◆ Defnyddio offer diwydiannol tymheredd uchel.
◆ RoHS Cydymffurfio
