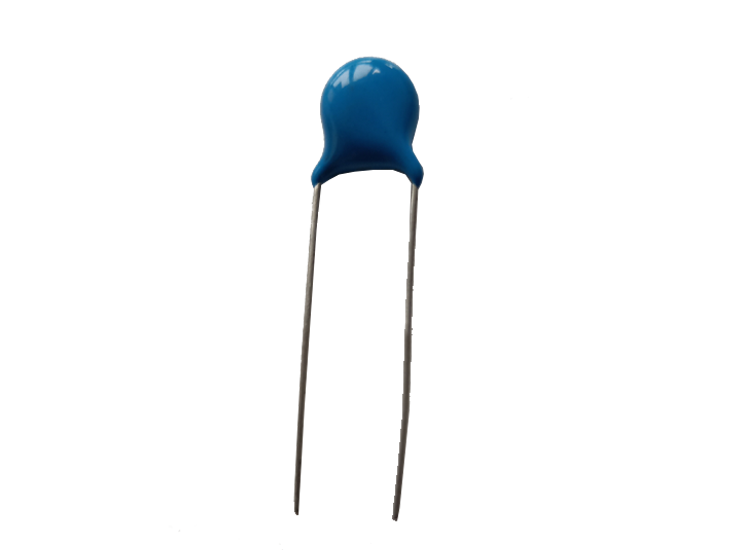

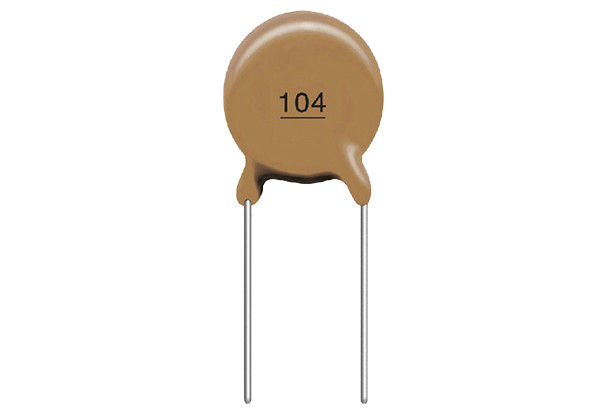

Kondenzátor keramického disku |12V ~ 50V | Ccdc
Zavedenie
Single layer metalized ceramic disc with resin coating (impregnované voskom).
CCDCis suitable for low voltage application and offers larger capacitance values
Single layer metalized ceramic disc with resin coating (impregnované voskom).
CCDCis suitable for low voltage application and offers larger capacitance values
Funkcie
Teplotný rozsah:-30~ 85 ℃
Rate Volateg:12~ 50 V
Kapacita: 1000pF~470nF
APPLICATION
• Transistorized Circuits
• Low Voltage-by-pass, Spojka.
• Určenie frekvencie, kde sú dielektrické straty, Hi-IR and Cap. stability are not of major importance
PRÍKLAD ČÍSLA ČASTI
ELECTRICAL CHARACTERISTICS
| Technical Data | Podmienka | Špecifikácia |
| Kapacita | Measured at 1KHz 0.05 VRMS, 25°C ± 2°C | 0.01uF-0.47uF |
| Prevádzková teplota | Y5U, Y5V, Y5P | -30°C ~ + 85° C |
| Rozptyl
(tanS) |
Y5U, Y5V, Y5P | < 0.05 |
| Izolačný odpor | rated voltage at 25°C ± >°C and 70% R.H max 16Vdc,
product voltage is 25Vdc |
>1GΩ or 20MΩ Farad, čo je menej |
| Encapsulation | Štandardné | Phenolic Wax Epoxy Coating |
| Solderability of Leads | at least 75 % covered | Solder temperature 250°C ± 5°C Dipping: 3±0.5 sec
(Flur shall be used) |
TEMPERATURE COEFFICIENT CODE
| Teplotné charakteristiky | ||
| kód | EIA Code | Charakteristika. |
| P | Y5P | ±10 % -30°C to +85°C |
| E | Y5U | +22 do -56% -30°C to +85°C |
| F | Y5V | +22 do -82% -30°C to +85°C |
TOLERANCE CODE
| kód | Tolerancia |
| C | ±0.25pF |
| D | ±0.5pF |
| F | ±1%pF |
| G | ± 2 % |
| J | ± 5 % |
| K | ±10 % |
| M | ± 20% |
VOLTAGE CODE EXAMPLE
| kód | 1B | 1H |
| WVDC | 12Vložka | 50Vložka |
RADIAL STRAIGHT-LEAD ON TAPE (S56 LEAD CODE)
RADIAL KINK-IN ON TAPE (K56 LEAD CODE)
*Most Popular
| kód | Rozmery |
| D | 11.0 max |
| d | 0.6 ±0.05 |
| P | 12.7 ±1.0 |
| P0 | 12.7 ±0,3 |
| P1 | 3.85 ±0.7 |
| P2 | 6.35 ±1.3 |
| F | 5.0 +0.8 -0.2 |
| Dh | 0 ±2.0 |
| W | 18.0 +1.0 -0.5 |
| W1 | 9.0 +0.75 -0.5 |
| W2 | 3.0 max |
| H | 18.0 +3.0 -0 |
| H0 | 16.0 ±0,5 |
| H1 | 32.25 max |
| K | 1.0 max |
| D0 | 4.0 ±0,2 |
| t | 0.7 ±0,2 |
| L | 11.0 max |
LEAD CODES FOR BULK PACK (CERAMIC DISC ONLY)
| Lead Type | ||||
| A-Straight | C-Kink In | D-Kink Out | ||
| 3.0mm |
4.8mm max 4.8±1mm |
|||
| 4.8mm max | ||||
| 4.8±1mm | ||||
| F-Special Length | Y-Y Formed | S & K-Taped | ||
|
Per Customer Špecifikácia |
4.0 mmmax 4.8 ±1.0 mm |
See taping specifications
above. |
||
| Lead Spacing
(±1.00) in mm |
Wire dia.
(±0.05) inmm |
||
| kód | P | kód | d |
| 2 | 2.5 | 4 | 0.48 |
| 5 | 5 | 6 | 0.6 |
| 6 | 6.35 | 7 | 0.65 |
| 7 | 7.5 | 8 | 0.8 |
| 9 | 10.0 | 9 | 1.0 |
| 0 | 12.7 | ||
| A | 15.0 | ||
