SMD ál raflausnarþéttar ▏105 ℃ ▏ultra lágt ESR ▏CAHC

Eiginleikar
105° C., 2000 ~ 5000 klukkustundir tryggðir
Ultra Low Impedance Capacitors
ROHS samhæft

Datasheet-For-SMD-Aluminum-Electrolytic-Capacitors-▏105℃-▏Ultra-Low-ESR-▏CAHC.pdf (3614 niðurhal )

Forskriftir

Hlutir	Frammistaða
Rekstrarhitastig	6.3 ~63V								80 ~ 100V
	-55° C ~ +105 ° C.								-40° C ~ +105 ° C.
Þolþol	+20%
Lekastraumur (við 20 ° C.)	I = 0,01cv eða 3 (µA) hvort sem er meiri (eftir 2 mínútur) Hvar, C= rated capacitance in µ F. V= rated DC working voltage inV.
Dreifingarstuðull (Tanδ við 120Hz, 20° C.)	Metið Spenna	6.3	10	16	25	35	50	63	80	100
	Tanδ (Max)	0.30	0.26	0.22	0.16	0.13	0.10	0.08	0.08	0.07
Eiginleikar lágt hitastig (við 120Hz)	Viðnámshlutfall skal ekki fara yfir gildin sem gefin eru í töflunni hér að neðan.
	Metin spenna				6.3	10	16	25	35	50	63	80	100
	Viðnám Hlutfall	Z (-25° C.)/Z(+20° C.)			4	3	2	2	2	2	2	2	2
		Z(-40° C.)/Z(+20° C.)			8	5	4	3	3	3	3	3	3
Hlaða lífspróf	Prófunartími		2,000 Hrs for 4 ~ 6.3Φ					3,000 Hrs for 8 ~ 10Φ						5,000 Hrs for 12.5 ~ -16Φ
	Rafrýmisbreyting		Innan +25% af upphafsgildi					Innan +30% af upphafsgildi						Innan +30% af upphafsgildi
	Dreifingarstuðull		Minna en 200% af tilgreindu gildi					Minna en 300% af tilgreindu gildi						Minna en 300% af tilgreindu gildi
	Lekastraumur		Innan tilgreinds gildi					Innan tilgreinds gildi						Innan tilgreinds gildi
	* Ofangreindar forskriftir skulu vera uppfylltar þegar þéttarnir eru færðir aftur í 20°C eftir málspennuna sem notuð er fyrir 2,000 ~ 5,000 klst. Við 105 ° C.
Geymslupróf	Prófunartími: 1000 klst; aðrir hlutir eru þeir sömu og fyrir burðarþolsprófið
Gára straumur & Tíðni margfaldara	Freq. (Hz) V.DC (V)	50, 60	120	1k	1k upp
	6.3 ~ 100	0.64	0.8	0.93	1.0
Staðlar	Jis c 5101-1

PLÚÐARBÚÐ OG ÞVERJI

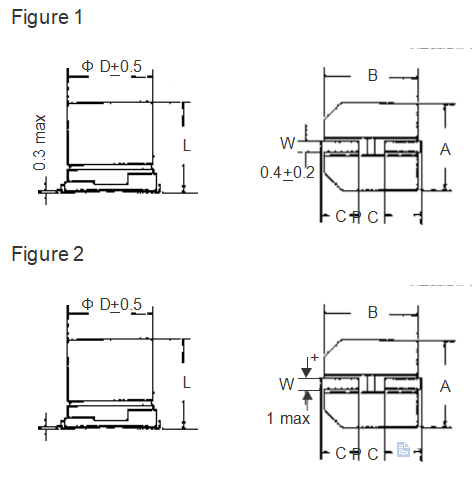

φd	L	A. ±0.2	B ±0.2	C. ±0.2	W.	P.±0.2	Mynd. Nei.
4	5.7 ± 0.3	4.3	4.3	2.0	0.5 til 0.8	1.0	1
5	5.7 ± 0.3	5.3	5.3	2.3	0.5 til 0.8	1.5	1
6.3	5.7 ± 3.3	6.3	6.3	2.7	0.5 til 0.8	2.0	1
6.3	7.7 ± 0.3	6.6	6.6	2.7	0.5 til 0.8	2.0	1
8	10 ± 0.5	8.4	8.4	3.0	0.7 til 1.1	3.1	1
10	10 ± 0.5	10.4	10.4	3.3	0.7 til 1.1	4.7	1
12.5	13.5 ± 0.5	12.8	12.8	4.9	1.1 til 1.4	4.2	2
12.5	16 ± 0.5	12.8	12.8	4.9	1.1 til 1.4	4.2	2
16	16.5 ± 0.5	16.3	16.3	5.8	1.8 til 2.2	6.0	2

Dæmi um hlutanúmer

CAHC 101 MI V TR 080100

MÁL, IMPEDANCE & LEYFILEGT GUÐSTRÚM

Stærð : φD x L(mm)

Ripple Current mA/rms at 100KHz, 105°C Impedance : at 100KHz, 20ºC

V.DC mF Innihald		6.3V (0J.)			10V (1A.)			16V (1C.)			25V (1E)			35V (1V)
V.DC mF Innihald		ΦD x L	Ma	Imp.	ΦD x L	Ma	Imp.	ΦD x L	Ma	Imp.	ΦD x L	Ma	Imp.	ΦD x L	Ma	Imp.
4.7	4R7													4 x 5.7	80	1.35
10	100							4 x 5.7	80	1.35	4 x 5.7	80	1.35	5 x 5.7	150	0.80
22	220	4 x 5.7	80	1.35	4 x 5.7	80	1.35	5 x 5.7	150	0.80	5 x 5.7	150	0.80	6.3 x 5.7	230	0.44
33	330	4 x 5.7	80	1.35	5 x 5.7	150	0.80	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44
47	470	5 x 5.7	150	0.80	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44
100	101	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44	6.3 x 7.7	280	0.36	8 x 10	450	0.17
150	151	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44	6.3 x 7.7	280	0.36	8 x 10	450	0.17	8 x 10	450	0.17
220	221	6.3 x 7.7	280	0.36	6.3 x 7.7	280	0.36	6.3 x 7.7	280	0.36	8 x 10	450	0.17	10 x 10	670	0.09
330	331	8 x 10	450	0.17	8 x 10	450	0.17	8 x 10	450	0.17	8 x 10	450	0.17	12.5 x 13.5	820	0.07
470	471	8 x 10	450	0.17	8 x 10	450	0.17	8 x 10	450	0.17	10 x 10	670	0.09	12.5 x 16	950	0.06
680	681	8 x 10	450	0.17	10 x 10	670	0.09	10 x 10	670	0.09	12.5 x 13.5	820	0.07	12.5 x 16	950	0.06
1,000	102	8 x 10	450	0.17	10 x 10	670	0.09	12.5 x 13.5	820	0.07	12.5 x 16	950	0.06	16 x 16.5	1,260	0.054
1,500	152	10 x 10	670	0.09	13 x 13.5	820	0.07	12.5 x 16	950	0.06	16 x 16.5	1,260	0.054
2,200	222	12.5 x 14	820	0.07	13 x 16	950	0.06	16 x 16.5	1,260	0.054	16 x 16.5	1,260	0.054
3,300	332	12.5 x 16	950	0.06	16 x 16.5	1,260	0.054	16 x 16.5	1,260	0.054
4,700	472	16 x 17	1,260	0.054	16 x 16.5	1,260	0.054

V.DC mF Innihald		50V (1H)			63V (1J.)			80V (1K)			100V (2A.)
V.DC mF Innihald		Φ D xL	Ma	Imp.	Φ D x L	Ma	Imp.	ΦD x L	Ma	Imp.	ΦD x L	Ma	Imp.
1	010	4 x 5.7	60	2.9
2.2	2R2	4 x 5.7	60	2.9
3.3	3R3	4 x 5.7	60	2.9
4.7	4R7	5 x 5.7	85	1.52	5 x 5.7	85	1.52
10	100	6.3 x 5.7	165	0.88	6.3 x 5.7	165	0.88
22	220	6.3 x 5.7	165	0.88	6.3 x 7.7	185	0.68
33	330	6.3 x 7.7	185	0.68	8 x 10	369	0.34
47	470	6.3 x 7.7	185	0.68	8 x 10	369	0.34				10 x 10	200	0.7
68	680	8 x 10	369	0.34	10 x 10	553	0.18	10 x 10	200	0.7	12.5 x 13.5	450	0.32
100	101	8 x 10	369	0.34	10 x 10	553	0.18	12.5 x 13.5	450	0.32	12.5 x 16	550	0.26
150	151	10 x 10	553	0.18	12.5 x 13.5	650	0.12	12.5 x 13.5	450	0.32	16 x 16.5	650	0.17
220	221	10 x 10	553	0.18	12.5 x 13.5	650	0.12	12.5 x 16	550	0.26
330	331	12.5 x 13.5	650	0.12	16 x 16.5	900	0.082	16 x 16.5	650	0.17
470	471	16 x 16.5	900	0.082	16 x 16.5	900	0.082
680	681	16 x 16.5	900	0.082

Eiginleikar

◆ 105 ° C., 2000 ~ 5000 klukkustundir tryggðir
◆ Ultra Low Impedance Capacitors
◆ RoHS samhæft
