Forskriftir

Hlutir	Frammistaða
Lífið	at 105 ° C. 2000 Klukkutímar
Rekstrartímabil.	-40 °C ~ +105 ° C.
Þolþol	+20% (við 120Hz, 20 ° C.)
Lekastraumur (at 20 ° C.)	Metin spenna		< 100V									> 100V
	Tími		eftir 2 mínútur									eftir 5 mínútur
	Lekastraumur		I = 0,01cv eða 3 (µA) hvort sem er meiri									CV < 1000 I = 0,03CV+15 (µA)				CV > 1000 I = 0,02CV+25 (µA)
	Þar sem C = metið þéttni í µF. V = málspenna DC vinnuspenna inV.
Dreifingarstuðull (Sólbrúnan δ við 120Hz, 20° C.)	Metin spenna		6.3	10	16	25	35	50	63	100	160	200	250	350	400	450
	Sólbrúnan δ (Max)		0.23	0.20	0.16	0.14	0.12	0.10	0.09	0.08	0.12	0.14	0.17	0.20	0.25	0.25
	Þegar rýmd fer yfir 1,000 µf, 0.02 skal bætast við hvert 1,000 µF hækkun.
Eiginleikar lágt hitastig (við 120Hz)	Viðnámshlutfall skal ekki fara yfir gildin sem gefin eru í töflunni hér að neðan.
	Metin spenna						6.3	10	16	25	35	50	63	100	160	200	250	350	400	450
	Viðnám Hlutfall	Z (-25° C.) / Z (+20 ° C.)			D. < 16		4	3	3	2	2	2	2	2	3	6	8	12	14	16
					D. > 16		6	4	4	3	3	3	3	3
		Z (-40° C.) / Z (+20° C.)			D. < 16		8	6	6	4	4	3	3	3	4	8	10	16	18	20
					D. > 16		12	10	8	8	8	8	6	6
Hlaða lífspróf	Prófunartími			2,000 klst
	Rafrýmisbreyting			Innan + 20% af upphafsgildi
	Dreifingarstuðull			Minna en 200% af tilgreindu gildi
	Lekastraumur			Innan tilgreinds gildi
	* Ofangreindar forskriftir skulu vera uppfylltar þegar þéttar eru færðir aftur í 20 °C á eftir nafnspennan sem notuð er með gárstraumi fyrir 2,000 klst kl 105 ° C..
Geymslupróf	Prófunartími			1,000 klukkustundir
	Rafrýmisbreyting			Innan + 20% af upphafsgildi
	Dreifingarstuðull			Minna en 200% af tilgreindu gildi
	Lekastraumur			Innan tilgreinds gildi
	* Ofangreindar forskriftir skulu vera uppfylltar þegar þéttar eru færðir aftur í 20 °C eftir að hafa verið afhjúpuð fyrir 1,000 klst kl 105 °C án spennu. Þemaspennu skal beitt á þétta fyrir mælingar fyrir 160 ~450V (Vísaðu til JIS C 5101 -44.1).
Gára straumur & Tíðni margfaldara	Freq. (Hz) Cap. (µf)		60	120	500	1k	10k upp
	Undir 100		0.70	1.00	1.30	1.40	1.50
	100 < C. < 1,000		0.75	1.00	1.20	1.30	1.35
	1,000 uppi fyrir ofan		0.80	1.00	1.10	1.12	1.15
Aðrir staðlar	Jis c 5101-4

Dæmi um hlutanúmer

CAFB 221 M. 1H Bk 100 200

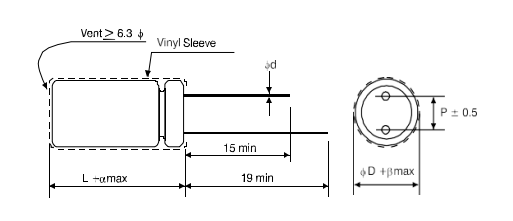

BLÍAFRÆÐ OG ÞVERJI

JD	5	6.3	8	10	12.5	16	18	22	25
P.	2.0	2.5	3.5	5.0	5	7.5	7.5	10	12.5
jd	0.5		0.6			0.8		1.0
A.	1.0			1.5				2.0
b	0.5

MÁL OG LEYFILEGT GIRUSTRAUM

Stærð: D×L(mm) Gára straumur: mA/RMS við 120Hz 105°C

V.DC mF kóða		6.3V (OJ)				10V (1A.)					16V (1C.)				25V (1E)
		fD x L	Ma	f*D x L	Ma	fD x L	Ma	fD x L		Ma	fD x L	Ma	fD x L	Ma	fD x L	Ma	fD x L	Ma
4.7	4R7														5 x 11	26
10	100										5 x 11	35			5 x 11	43
22	220					5 x 11	49				5 x 11	58			5 x 11	62
33	330	5 x 11	54			5 x 11	60				5 x 11	71			5 x 11	76
47	470	5 x 11	65			5 x 11	76				5 x 11	85			5 x 11	97
100	101	5 x 11	95			5 x 11	105				6.3 x 11	133	5 x 11	110	6.3 x 11	142
220	221	6.3 x 11	160	5 x 11	140	6.3 x 11	175				8 x 11.5	215	6.3 x 11	190	8 x 11.5	236
330	331	8 x 11.5	195	6.3 x 11	190	8 x 11.5	245	6.3 x 11		200	8 x 11.5	270			10 x 12.5	335	8 x 11.5	310
470	471	8 x 11.5	270	6.3 x 11	230	8 x 11.5	290				10 x 12.5	370	8 x 11.5	310	10 x 16	440	10 x 12.5	380
1,000	102	10 x 12.5	460	8 x 11.5	380	10 x 16	550	10 x 12.5		460	10 x 20	640	10 x 16	560	12.5 x 20	770	10 x 20	680
2,200	222	10 x 20	810	10 x 16	690	12.5 x 20	860	10 x 20		760	12.5 x 25	1,000	12.5 x 20	920	16 x 25	1,170	12.5 x 25.0	1,110
3,300	332	12.5 x 20	960	10 x 20	840	12.5 x 20	1,100				16 x 25	1,300	12.5 x 25	1,170	16 x 31.5	1,460	16 x 25	1,440
4,700	472	16 x 25	1,330	12.5 x 20	1,090	16 x 25	1,400	12.5 x	25	1,260	16 x 32	1,600	16 x 25	1,480	18 x 35.5	1,780	16 x 31.5	1,710
6,800	682	16 x 25	1,640	12.5 x 25	1,460	16 x 31.5	1,880	16 x	25	1,690	18 x 35.5	2,170	16 x 31.5	1,930	18 x 40	2,280	18 x 35.5	2,160
10,000	103	16 x 31.5	2,200	16 x 25	1,990	16 x 35.5	2,400	16 x	31.5	2,120	18 x 35.5	2,640	18 x 31.5	2,330			22 x 40	2,720
22,000	223	18 x 40	3,270	18 x 35.5	2,930	18 x 40	3,100						22 x 40	3,460

Mf	V.DC Kóði	35V (1V)				50V (1H)				63V (1J.)					100V (2A.)
		fD x L	Ma	f*D x L	Ma	fD x L	Ma	fD x L	Ma	fD	x L	Ma	fD x L	Ma	fD x L	Ma	fD x L	Ma
0.1	0R1					5 x 11	3			5	11	3.5			5 x 11	4
0.2	R22					5 x 11	5			5 x 11		5.1			5 x 11	6
0.3	R33					5 x 11	6			5 x 11		7.5			5 x 11	8
0.5	R47					5 x 11	7			5 x 11		9			5 x 11	9
1	010					5 x 11	13			5 x 11		15			5 x 11	15
2.2	2R2					5 x 11	20			5 x 11		30			5 x 11	30
3.3	3R3			x		5 x 11	30			5 x 11		31			5 x 11	31
4.7	4R7	5 x 11	30	x		5 x 11	33			5 x 11		36			6.3 x 11	40
10	100	5 x 11	46	x		5 x 11	50			5 x 11		54			8 x 11.5	66	6.3 x 11	54
22	220	5 x 11	71	x		5 x 11	78			6.3 x 11		86			8.0 x 11.5	99	6.3 x 11	93
33	330	6.3 x 11	90	5 x 11	75	6.3 x 11	96	5 x 11	90	8 x 11.5		114	6.3 x 11	100	10 x 12.5	148	8.0 x 11.5	130
47	470	6.3 x 11	110	5 x 11	90	6.3 x 11	120			8 x 11.5		141	6.3 x 11	130	10 x 16	180	10 x 12.5	165
100	101	8 x 11.5	180	6.3 x 11	150	8 x 11.5	188			10 x 12.5		235			12.5 x 20	320	10 x 20.0	265
220	221	10 x 12.5	300	8 x 11.5	270	10 x 16	300	10 x 12.5	240	10 x 20		450	10 x 16	335	16 x 25	570	12.5 x 25.0	440
330	331	10 x 16	400	10 x 12.5	350	10 x 20	460	10 x 16	410	12.5 x 20		540	10 x 20	510	16 x 31.5	700	16 x 25	540
470	471	10 x 20	520	10 x 16	460	12.5 x 25	610	10 x 20	530	12.5	25	720	12.5 x 20	640	18 x 35.5	880	16 x 31.5	715
1,000	102	12.5 x 25	920	12.5 x 20	810	16 x 25	1,080	12.5 x 25	950	16	31.5	1,210	16 x 25	930	22 x 40	1,760	18 x 40	985
2,200	222	16 x 31.5	1,340	16 x 25	1,260	18 x 35.5	2,120	16 x 35.5	1,470	18	40	2,340
3,300	332	16 x 35.5	1,610	16 x 31.5	1,420	22 x 40	2,290	18 x 35.5	1,770	22	40	2,510
4,700	472	18 x 40	1,920	18 x 35.5	1,900	25 x 40	2,610	22 x 40	2,340	25	40	3,000

V.DC   mF kóða		160V (2C.)				200V (2D.)				250V (2E)				350V (2V)
		fD x L	Ma	f*D x L	Ma	fD x L	Ma	fDx L	Ma	fD x L	Ma	fD x L	Ma	fDx L	Ma	fDx L	Ma
0.47	R47	6.3 x 11	13	5 x 11	11	6.3 x 11	14	5 x 11	12	8 x 11.5	18	5 x 11	11	8 x 11.5	18	8 x 11	16
1	010	6.3 x 11	20	5 x 11	17	6.3 x 11	21	5 x 11	18	8 x 11.5	27	5 x 11	16	8 x 11.5	27	8 x 11	23
2.2	2R2	6.3 x 11	29	5 x 11	25	8 x 11.5	37	6.3 x 11	30	8 x 11.5	41	6.3 x 11	35	10 x 16	53	10 x 11.5	41
3.3	3R3	8 x 11.5	42	6.3 x 11	36	8 x 11.5	45	6.3 x 11	39	8 x 11.5	50	6.3 x 11	40	10 x 12.5	59	10 x 11.5	47
4.7	4R7	8 x 11.5	50	6.3 x 11	43	8 x 11.5	54	6.3 x 11	43	10 x 16	93	8 x 11.5	60	10 x 16	78	10 x 12.5	65
10	100	10 x 12.5	87	8 x 11.5	73	10 x 20	115	10 x 12.5	94	10 x 16	115	10 x 12.5	92	10 x 20	125	10 x 16	105
22	220	10 x 20	158	10 x 16	135	10 x 20	170	10 x 16	142	12.5 x 20	255	10 x 20	215	12.5 x 25	235	12.5 x 20	210
33	330	12.5 x 20	225	10 x 20	190	12.5 x 25	265	12.5 x 20	240	12.5 x 25	348	12.5 x 20	315	16 x 31.5	365	16 x 25	325
47	470	12.5 x 25	295	12.5 x 20	265	12.5 x 25	315	12.5 x 20	250	16 x 25	468	12.5 x 25	350	16 x 31.5	395	16 x 25	365
100	101	16 x 25	485	12.5 x 25	425	16 x 35.5	565	16 x 25	485	16 x 35.5	610	16 x 31.5	530	18 x 40	575	18 x 35.5	505
220	221	18 x 35.5	750	16 x 31.5	660	18 x 40	885	18 x 35.5	835	22 x 40	945
330	331	18 x 40	865	18 x 35.5	820

Dæmi um hlutanúmer

CAFC 221 M 1H BK 100 200

V.DC mF kóða		400V (2G)				450V (2W.)
		fD x L	Ma	f*D x L	Ma	fD x L	Ma	f D xL	Ma
0.47	R47	8.0 x 11.5	18	6.3 x 11	15	10 x 12.5	22	8 x 11.5	18
1	010	8.0 x 11.5	27	6.3 x 11	21	10 x 12.5	32	8 x 12	27
2.2	2R2	10.0 x 12.5	48	8 x 11.5	39	10 x 12.5	48	8 x 12	39
3.3	3R3	10 x 16	65	8 x 11.5	47	10 x 16	65	10 x 13	55
4.7	4R7	10 x 20	86	10 x 12.5	70	10 x 20	86	10 x 16	75
10	100	12.5 x 20	145	10 x 20	125	12.5 x 25	160	12.5 x 20.0	145
22	220	16 x 25	265	12.5 x 25	235	16 x 25	265	16 x 20	245
33	330	16 x 31.5	360	16 x 25	325	16 x 31.5	360	16 x 25	325
47	470	16 x 35.5	420	16 x 31.5	390	18 x 40	515	16 x 35.5	420
100	101	22 x 40	595	18 x 40	530	22 x 45	625	22 x 40	595

* = Flatt (ekki loftræst) gúmmíband. Aðrar einingar eru gerðar með hækkuðum (útblásið) gúmmíband.

Low-Profile Stærð

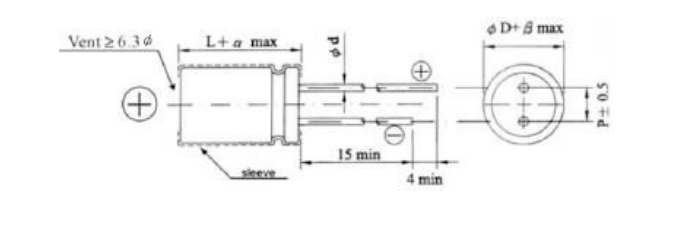

BLÍAFRÆÐ OG ÞVERJI

JD	12.5	16	18
P.	5.0	7.5	7.5
jd	0.6	0.8
A.	1.5
b	0.5



MÁL OG LEYFILEGT GIRUSTRAUM

Stærð: D×L(mm) Gára straumur: mA/RMS við 120Hz 105°C

V.DC   m F kóða		6.3V (0J.)		10V (1A.)		16V (1C.)		25V (1E)		35V (1V)		50V (1H)
		fD x L	Ma	fD x L	Ma	fD x L	Ma	fD x L	Ma	fD x L	Ma	fD x L	Ma
470	471											12.5 x 16	425
1,000	102							12.5 x 16	590	12.5 x 16	600	16 x 16	535
										16 x 16	720	16 x 20	830
2,200	222			13 x 16	690	16 x 16	830	16 x 20	970	18 x 20	1,110
3,300	332	12.5 x 16	700	16 x 16	940	16 x 16	950	18 x 20	1,220	18 x 25	1,570
						16 x 20	1,050
4,700	472	16 x 16	1,010	16 x 16	1,060	16 x 20	1,185	18 x 25	1,470
				16 x 20	1,120	18 x 20	1,260
6,800	682	16 x 20	1,190	16 x 20	1,270	18 x 25	1,560
				18 x 20	1,330
10,000	103	16 x 20	1,340	18 x 25	1,700
		18 x 20	1,440



V.DC   m F kóða		160V (2C.)		200V (2D.)		250V (2E)		400V (2G)
		fD x L	Ma	fD x L	Ma	fD x L	Ma	fD x L	Ma
10	101							12.5 x 16	120
								16 x 16	150
22	220					12.5 x 16	200	16 x 20	220
33	330			12.5 x 16	215	16 x 16	250	18 x 20	270
				16 x 16	250
47	470	12.5 x 16	230	16 x 16	275	16 x 20	300	18 x 25	350
		16 x 16	275	16 x 20	300
68	680	16 x 20	330	16 x 20	330	18 x 20	350
				18 x 20	350
100	101	16 x 20	395	18 x 25	420
		18 x 20	420
150	151	18 x 25	510

Dæmi um hlutanúmer

CAFC 221 M 1H BK 100 200

Eiginleikar
◆  Langlífi, 105 ℃,2,000klukkustundir tryggðir
◆  SlimType

◆ ROHS samhæft
