Organyske liedende Polymer Electrolytic Capacitors ▏125 ℃ ▏cayc
•125°C, 2,000 oeren fersekere.
• Ultra Low ESR, bêst capacitors mei grutte grutte tastiene ripplecurrent
SPESIFIKASJES
| Items | Optreden |
| Operating Temperatur Range | -55C ~ +125°C |
| Capacitance Tolerânsje | +20% (op 120 Hz, 20°C) |
| Leakage Strom (op 20°C) | Minder as 0.2CV (µA) nei 2 minuten,
Wêr, C = nominearre kapasitânsje yn µF. V = rated DC wurkspanning inV. |
| Dissipaasjefaktor (Tan ä op 120Hz, 20°C) | Sjoch de Dimension & Talitten Ripple Current |
| ESR (by 100K ~ 300K Hz, M¿, 20°CMAX) | Sjoch de Dimension & Talitten Ripple Current |
|
Load Life Test (125°C mei nominale spanning tapast) |
Toets Tiid 2.5V~4V: 1,000 Hrs; 6.3V~16V: 2,000Hrs Capacitance Feroaring Binnen +20% fan begjinwearde Dissipaasjefaktor Minder as 200% fan oantsjutte wearde ESR Minder dan 200% fan oantsjutte wearde Leakage Strom Binnen oantsjutte wearde |
| * De boppesteande spesifikaasjes sille tefreden wêze as de kondensators wurde werombrocht nei 20 ° C nei de nominale spanning tapast foar 2,000 oeren op 125 °C | |
|
Moisture Resistance (Opslein by 60 ° C 90 nei 95% R.H)
Standerts |
Toets Tiid 1,000 Hrs Capacitance Feroaring Binnen +20% fan begjinwearde Dissipaasjefaktor Minder as 150% fan oantsjutte wearde ESR Minder dan 150% fan oantsjutte wearde Leakage Strom Binnen oantsjutte wearde * Leakstrom moat wurde hifke nei spanning behanneling. |
| JIS C 5101-1 |
DIMINSJE & FERGESE RIPPLE CURRENT
| W.V.(V) | Kapasiteit
( F) |
Grutte
DxL (mm) |
Tanäs | L.C.. | E.S.R.
(100k~ 300 kHz, m¿, 20°C MAX) |
Rated R.C.
(mArms op 100 kHz) |
|
| 2.5V(0E) | 680
1,500 |
6.3 x 6.5
8 x 11.5 |
0.18
0.18 |
340
750 |
13
13 |
4,520
5,440 |
1,721
1,430 |
| 4V(0G) | 560
1,200 |
6.3 x 5.5
6.3 x 11 |
0.18
0.18 |
448
960 |
13
12 |
4,520
5,440 |
1,721
1,430 |
| 6.3V(0J) | 470
820 |
6.3 x 5.5
6.3 x 11 |
0.15
0.15 |
592
1,033 |
15
12 |
4,210
5,440 |
1,721
1,430 |
| 10V(1IN) | 330
560 |
8 x 11.5
10 x 12.5 |
0.12
0.12 |
660
1,360 |
16
13 |
3,950
5,230 |
1,250
1,655 |
| 16V(1C) | 180
330 100 150 |
6.3 x 5.5
6.3 x 11 8 x 11.5 10 x 12.5 |
0.12
0.12 0.15 0.15 |
576
1,056 400 600 |
18
16 24 20 |
3,640
4,720 3,320 4,320 |
1,151
1,493 1,050 1,367 |
| 20V(1D) | |||||||

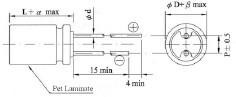

PAD SPACING EN DIAMETER
| ØD | 8 | 10 | |
| L | 11.5 | 12.5 | |
| P | 3.5 | 5.0 | |
| Woastyn | 0.6 | ||
| in | 1.0 | 1.5 | |
| ß | 0.5 | ||
FEATURES
•125°C,2,000oeren fersekere.
• Ultra Low ESR, bêst capacitors mei grutte
tastiene ripplecurrent
◆ RoHS neilibjen
