Metallisearre polypropylene filmkondensator | Dûbel | Cdbb

FEATURES

◆ Hege focht ferset
◆ Rated voltage : 250~2000 Vdc(180~700 Vac)
◆ Capacitance berik : 0.00022 ~3.9uF
◆ Flammefertragende epoksyhars (Konform oan UL 94V-0)
◆ RoHS-konforme en leadfrije terminen
◆ Foar hege dv / dt applikaasje

PART NUMMER Foarbyld

ELEKTRISKE skaaimerken

Items	Optreden
Operating Voltage Range	250Vdc ~ 2.000 Vdc
Rated temperatuer	-40°C ~ +105°C (Derates boppe 85 ° C at 1.25% per °C)
Climatic Category	40 / 105 / 56
Capacitance Range	0.00022 µF ~ 3.9µF
Capacitance Tolerânsje	± 5% (J), ± 10% (K), oare tolerânsjes op oanfraach
Dissipaasjefaktor (tan fiÅ		C ≤0.1µF	0.1µF < C ≤ 1.0µF	C > 1.0µF
	1KHz, 20°C	0.0003	0.0003	0.0003
	1KHz, 20°C	0.0004	0.0006	—
	100KHz, 20°C	0.0015	—	—
Isolaasje Resistance		Metten op 20°C, 100vdc foar 1 minút
	Minimum wearde tusken terminals Cr ≤ 0.33 µF EN ≥ 100,000 MΩ Cr > 0.33 µF EN ≥ 30,000 MΩ • µF Minimum Wearde Tusken Terminals en Case EN ≥ 30,000 MΩ

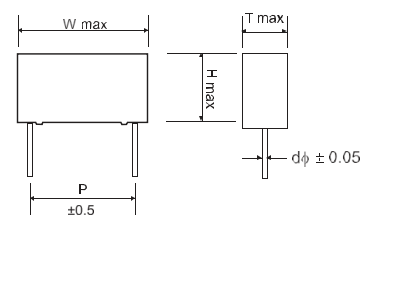

RATINGS & DIMENSJES (mm)

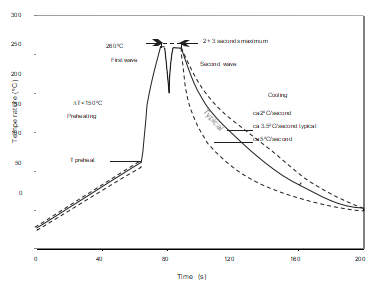

Wave Soldering Oanbefellings

(μF)	wurk g Voltage	250Vdc (2E)						400Vdc (2G)						630Vdc (2J)
		180Vac						250Vac						400Vac
	Koade	W	H	T	P	stjerre	dv/dt	W	H	T	P	stjerre	dv/dt	W	H	T	P	stjerre	dv/dt
0.01	103													13.0	11.0	5.0	10.0	0.6	3,000
0.012	123													13.0	11.0	5.0	10.0	0.6	3,000
0.015	153													13.0	12.0	6.0	10.0	0.6	3,000
0.018	183													18.0	11.0	5.0	15.0	0.8	2,500
0.022	223													18.0	11.0	5.0	15.0	0.8	2,500
0.027	273							13.0	11.0	5.0	10.0	0.6	1,400	18.0	11.0	5.0	15.0	0.8	2,500
0.033	333							13.0	11.0	5.0	10.0	0.6	1,400	18.0	12.0	6.0	15.0	0.8	2,500
0.039	393							13.0	12.0	6.0	10.0	0.6	1,400	18.0	12.0	6.0	15.0	0.8	2,500
0.047	473	13.0	11.0	5.0	10.0	0.6	1,000	18.0	11.0	5.0	15.0	0.8	1,000	18.0	12.0	6.0	15.0	0.8	2,500
0.056	563	13.0	11.0	5.0	10.0	0.6	1,000	18.0	11.0	5.0	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.068	683	13.0	12.0	6.0	10.0	0.6	1,000	18.0	12.0	6.0	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.082	823	18.0	11.0	5.0	15.0	0.8	600	18.0	12.0	6.0	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.1	104	18.0	11.0	5.0	15.0	0.8	600	18.0	13.5	7.5	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.12	124	18.0	12.0	6.0	15.0	0.8	600	18.0	13.5	7.5	15.0	0.8	1,000	26.5	16.0	7.0	22.5	0.8	1,800
0.15	154	18.0	12.0	6.0	15.0	0.8	600	26.5	15.0	6.0	22.5	0.8	600	26.5	17.0	8.5	22.5	0.8	1,800
0.18	184	18.0	13.5	7.5	15.0	0.8	600	26.5	15.0	6.0	22.5	0.8	600	32.0	18.0	9.0	27.5	0.8	1,100
0.22	224	18.0	13.5	7.5	15.0	0.8	600	26.5	16.0	7.0	22.5	0.8	600	32.0	18.0	9.0	27.5	0.8	1,100
0.27	274	18.0	14.5	8.5	15.0	0.8	600	26.5	17.0	8.5	22.5	0.8	600	32.0	18.0	9.0	27.5	0.8	1,100
0.33	334	18.0	16.0	10.0	15.0	0.8	600	26.5	17.0	8.5	22.5	0.8	600	32.0	20.0	11.0	27.5	0.8	1,100
0.39	394	26.5	16.0	7.0	22.5	0.8	400	26.5	18.5	10.0	22.5	0.8	600	32.0	20.0	11.0	27.5	0.8	1,100
0.47	474	26.5	16.0	7.0	22.5	0.8	400	32.0	18.0	9.0	27.5	0.8	500	32.0	22.0	13.0	27.5	0.8	1,100
0.56	564	26.5	17.0	8.5	22.5	0.8	400	32.0	20.0	11.0	27.5	0.8	500	32.0	22.0	13.0	27.5	0.8	1,100
0.68	684	26.5	18.5	10.0	22.5	0.8	400	32.0	20.0	11.0	27.5	0.8	500	32.0	24.5	15.0	27.5	0.8	1,100
0.82	824	26.5	18.5	10.0	22.5	0.8	400	32.0	22.0	13.0	27.5	0.8	500	32.0	28.0	14.0	27.5	0.8	1,100
1	105	32.0	20.0	11.0	27.5	0.8	300	32.0	24.5	15.0	27.5	0.8	500	32.0	33.0	18.0	27.5	0.8	1,100
1.2	125	32.0	20.0	11.0	27.5	0.8	300	32.0	24.5	15.0	27.5	0.8	500	32.0	33.0	18.0	27.5	0.8	1,100
1.5	155	32.0	22.0	13.0	27.5	0.8	300	32.0	33.0	18.0	27.5	0.8	500	trochgean ……
1.8	185	32.0	24.5	15.0	27.5	0.8	300	32.0	33.0	18.0	27.5	0.8	500
2.2	225	32.0	24.5	15.0	27.5	0.8	300
2.7	275	32.0	33.0	18.0	27.5	0.8	300
3.3	335	32.0	33.0	18.0	27.5	0.8	300
3.9	395	32.0	33.0	18.0	27.5	0.8	300

RATINGS & DIMENSJES (mm)

( F)	wurk g Voltage	1000VDC(3IN)						1600Vdc (3C)						2000Vdc (3D)
		600Vac						650Vac						700Vac
	Koade	W	H	T	P	stjerre	dv/dt	W	H	T	P	stjerre	dv/dt	W	H	T	P	stjerre	dv/dt
0.00022	221													18.0	11.0	5.0	15.0	0.8	10,000
0.00027	271													18.0	11.0	5.0	15.0	0.8	10,000
0.00033	331													18.0	11.0	5.0	15.0	0.8	10,000
0.00047	471													18.0	11.0	5.0	15.0	0.8	10,000
0.00056	561													18.0	11.0	5.0	15.0	0.8	10,000
0.00068	681							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.00082	821							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.001	102							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0012	122							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0015	152							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0018	182							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0022	222							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0027	272							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0033	332							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0039	392	13.0	11.0	5.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0047	472	13.0	11.0	5.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0056	562	13.0	12.0	6.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	13.5	7.5	15.0	0.8	10,000
0.0068	682	13.0	12.0	6.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	13.5	7.5	15.0	0.8	10,000
0.0082	822	18.0	11.0	5.0	15.0	0.8	3,300	18.0	12.0	6.0	15.0	0.8	6,000	26.5	15.0	6.0	22.5	0.8	5,000
0.01	103	18.0	11.0	5.0	15.0	0.8	3,300	18.0	12.0	6.0	15.0	0.8	6,000	26.5	15.0	6.0	22.5	0.8	5,000
0.012	123	18.0	11.0	5.0	15.0	0.8	3,300	18.0	13.5	7.5	15.0	0.8	6,000	26.5	15.0	6.0	22.5	0.8	5,000
0.015	153	18.0	11.0	5.0	15.0	0.8	3,300	18.0	13.5	7.5	15.0	0.8	6,000	26.5	16.0	7.0	22.5	0.8	5,000
0.018	183	18.0	13.5	7.5	15.0	0.8	3,300	18.0	14.5	8.5	15.0	0.8	6,000	26.5	16.0	7.0	22.5	0.8	5,000
0.022	223	18.0	13.5	7.5	15.0	0.8	3,300	18.0	14.5	8.5	15.0	0.8	6,000	26.5	17.0	8.5	22.5	0.8	5,000
0.027	273	18.0	14.5	8.5	15.0	0.8	3,300	26.5	15.0	6.0	22.5	0.8	3,000	26.5	18.5	10.0	22.5	0.8	5,000
0.033	333	26.5	15.0	6.0	22.5	0.8	2,100	26.5	16.0	7.0	22.5	0.8	3,000	26.5	18.5	10.0	22.5	0.8	5,000
0.039	393	26.5	15.0	6.0	22.5	0.8	2,100	26.5	17.0	8.5	22.5	0.8	3,000	26.5	22.0	12.0	22.5	0.8	5,000
0.047	473	26.5	16.0	7.0	22.5	0.8	2,100	26.5	18.5	10.0	22.5	0.8	3,000	32.0	20.0	11.0	27.5	0.8	2,200
0.056	563	26.5	16.0	7.0	22.5	0.8	2,100	26.5	18.5	10.0	22.5	0.8	3,000	32.0	22.0	13.0	27.5	0.8	2,200
0.068	683	26.5	17.0	8.5	22.5	0.8	2,100	26.5	22.0	12.0	22.5	0.8	3,000	32.0	22.0	13.0	27.5	0.8	2,200
0.082	823	26.5	18.5	10.0	22.5	0.8	2,100	32.0	20.0	11.0	27.5	0.8	2,000	32.0	24.5	15.0	27.5	0.8	2,200
0.1	104	26.5	18.5	10.0	22.5	0.8	2,100	32.0	20.0	11.0	27.5	0.8	2,000	32.0	28.0	14.0	27.5	0.8	2,200
0.12	124	32.0	20.0	11.0	27.5	0.8	1,300	32.0	22.0	13.0	27.5	0.8	2,000	32.0	33.0	18.0	27.5	0.8	2,200
0.15	154	32.0	20.0	11.0	27.5	0.8	1,300	32.0	24.5	15.0	27.5	0.8	2,000	32.0	33.0	18.0	27.5	0.8	2,200
0.18	184	32.0	22.0	13.0	27.5	0.8	1,300	32.0	24.5	15.0	27.5	0.8	2,000
0.22	224	32.0	22.0	13.0	27.5	0.8	1,300	32.0	33.0	18.0	27.5	0.8	2,000
0.27	274	32.0	24.5	15.0	27.5	0.8	1,300	32.0	33.0	18.0	27.5	0.8	2,000
0.33	334	32.0	28.0	14.0	27.5	0.8	1,300	32.0	33.0	18.0	27.5	0.8	2,000
0.39	394	32.0	33.0	18.0	27.5	0.8	1,300
0.47	474	32.0	33.0	18.0	27.5	0.8	1,300

Vrms vs. Frekwinsje, typyske wearde

RADIAL TAPING CODE DIAGRAM

Fig. 4 Box of Expoxy Coated

F = 10 = Allinnich munysje

F = 15 Elke oare romte oerslein omdat

fan grutter lichem – Allinnich ammo

(RT3 of RT4)

Beskriuwing	Letter	Diminsje (mm)
		RT4	Tol.
Lead Wire Diameter	d	0.6 / 0.8	± 0.05
Tape Pitch	P	25.4	± 1
Feed Hole Pitch	PO	12.7	± 0.2
Centrering fan de Lead Wire	P1	5.2	± 0.7
Centering fan it lichem	P2	12.7	± 1.3
Lead Spacing (Pitch)	F	15	+ 0.6; -0.1
Component Alignment	Δh	0	± 2
Hichte fan Componenet út Tape Center	H	18.5	± 0.5
Carrier Tape Breedte	W	18	+ 1; -0.5
Hâld Tape Breedte	WO	10	Min
Hole Posysje	W1	9	± 0.5
Hold Down Tape Posysje	W2	3	Max
Feed Hole Diameter	Dwaan	4	± 0.2
Tape dikte	t	0.5	± 0.2
Stal	fig	4

Opmerking: *Tastimming fan opboude pitch minder as 1mm by de som fan 20 plakken.

*Trochrinnende lege komponint minder as 3 opfolgjende stikken.

*Totaal leech op ien reel minder as 1%.

YNLIEDING
CDBB Series wurde spesifyk konstruearre foar Power Factor Correction (PFC) applikaasjes. Film waard selektearre en metallisaasje tapast spesifyk foar hege dv / dt applikaasje
