Low ESR Electrolytic Capacitors ▏160 ~ 450v ▏CACB

FEATURES
105℃, 2000 ~ 3000 oeren fersekere
Leech ESR, geskikt foar it wikseljen fan macht foarrieden, UPS
For ballast use, 3000 ~ 5000 oeren fersekere
Lytsere grutte mei grutte tastiene ripple current

Datasheet-For-Low-ESR-Electrolytic-Capacitors-▏160450V-▏CACB.pdf (3635 downloads )

SPESIFIKASJES

Items	Optreden
Operating Temperatur Range	-40°C ~ +105°C
Rated Voltage Range	160 ~450V
Capacitance Tolerânsje	± 20% (op 120 Hz,20°C)
Leakage Strom (op 20°C)	Tiid			Nei 5 minuten
	Leakage Strom			CV<1000 I=0.03CV(mA)					CV>1000 I=0.02CV(mA)
	Wêr, C = rated capacitance yn mF. V = rated DC working voltage
Dissipaasjefaktor (Tan d at 120Hz, 20°C)	Rated Voltage		160		200		250	350			400			450
	Tan d(max)		0.20		0.20		0.20	0.24			0.24			0.24
	As de kapasiteit grutter is as 1000mF, 0.02 sil wurde tafoege elke 1000mF ferheging.
Lege temperatuer Skaaimerken (op 120 Hz)	Impedânsje-ferhâlding sil de wearden net boppe de wearden jûn yn 'e tabel hjirûnder.
	Rated Vo ltage							160		200		250	350			400		45 0
	Impedânsje Ratio	Z(-25°C)/Z(+20°C)						3		3		3	3			5		6
		Z(-40°C)/Z(+20°C)						4		4		4	4			6
Load Life Test	Testtiid				2000 hrs for fD <10 mm 3000 hrs for fD > 13 mm
	Capacitance feroaring				Binnen ± 20% fan begjinwearde
	Dissipaasjefaktor				Minder as 200% fan oantsjutte wearde
	Leakage Strom				Binnen oantsjutte wearde
	*De boppesteande spesifikaasjes sille tefreden wêze as de kondensators wurde werombrocht nei 20 ° C nei de nominale spanning tapast foar 2000/3000 oeren op 105 °C
Shelf Life Test	Testtiid				1000 Hrs
	Capacitance feroaring				Binnen ± 20% fan begjinwearde
	Dissipaasjefaktor				Minder as 200% fan oantsjutte wearde
	Leakage Strom				Minder as 500% fan oantsjutte wearde
	*De boppesteande spesifikaasjes sille tefreden wêze as de kondensatoren wurde werombrocht nei 20 ° C nei it bleatstellen fan se foar 1000 oeren by 105 ° C sûnder spanning tapast.
Ripple Strom & Frekwinsje Multipliers	Freq.(Hz) Kap(mF)		60 (50)			120		500			1K			10K			100K
	Under33		0.40			0.55		0.65			0.80			0.90			1.00
	33 nei 330		0.60			0.70		0.80			0.90			0.95			1.00
	390 nei 1000		0.65			0.80		0.85			0.98			1.00			1.00
	1200 boppe boppe		0.80			0.90		0.95			0.98			1.00			1.00
Ripple Strom & Temperatuer Multipliers	Temperatuer(°C)			65		70		85			95			105
	Multiplier			1.8		1.65		1.5			1.25			1.00
Standerts	Voldoet oan karakteristyk W fan JIS C 5141

PART NUMMER Foarbyld

CACB 100 M 2G BK 100 200

DIMENSJES EN TASTEAN RIPPLE CURRENT

Diminsje: D×L(mm) Ripple Strom: mA/rms at 100K Hz 105°C

VDC mF	Koade	fd x l	160V (2C) Impedânsje 20℃	Ripple 120Hz	Aktueel 100KHz	fd x l	200V (2D) Impedânsje 20℃	Ripple 120Hz	Aktueel 100KHz	fd x l	250V (2E) Impedânsje 20℃	Ripple 120Hz	Aktueel 100KHz
0.47	R47	6.3 x 11	14.5	9	35	6.3 x 11	14.50	9	35	6.3 x 11	14.50	8	30
1.0	010	6.3 x 11	8.5	13	50	6.3 x 11	8.50	13	50	6.3 x 11	8.50	13	50
2.2	2R2	6.3 x 11	5.5	23	90	6.3 x 11	5.50	19	75	8 x 11.5	5.00	21	85
3.3	3R3	8 x 11.5	4.3	28	110	8 x 11.5	4.30	33	130	10 x 12.5	4.20	30	120
4.7	4R7	8 x 11.5	3.1	33	130	10 x 12.5	3.10	39	155	10 x 16	3.50	41	165
10	100	10 x 16	1.55	63	250	10 x 16	1.55	63	250	10 x 20	3.18	50	200
22	220	10 x 16	1.47	75	300	10 x 20	1.47	75	300	13 x 20	1.74	85	340
33	330	10 x 20	1.15	90	360	13 x 20	1.15	90	360	13 x 25	1.35	115	460
47	470	13 x 25	0.92	125	500	13 x 20	0.92	125	500	13 x 25	1.08	138	550
68	680	13 x 25	0.71	165	660	13 x 25	0.71	165	660	16 x 25	0.84	183	730
100	101	13 x 25	0.59	213	850	16 x 25	0.59	213	850	16 x 31.5	0.70	248	990
150	151	16 x 25	0.41	303	1,200	16 x 31.5	0.41	303	1,210	18 x 31.5	0.49	325	1,300
220	221	16 x 31.5	0.31	368	1,470	18 x 35.5	0.31	408	1,630	18 x 40	0.36	433	1,730
VDC mF 0.47	Code R47	fd x l 8 x 11.5	350V (2V) Impedance 20℃ 3.50	Ripple 120Hz 18	Aktueel 100KHz 70	fd x l	400V (2G) Impedance 20℃	Ripple 120Hz	Aktueel 100KHz	fd x l	450V (2W) Impedance 20℃	Ripple 120Hz	Aktueel 100KHz
1.0	010	10 x 12.5	4.20	30	85	10 x 12.5	4.20	21	85	10 x 12.5	8.80	18	70
2.2	2R2	10 x 16	3.50	49	140	10 x 16	3.50	35	140	10 x 16	6.90	25	100
3.3	3R3	10 x 16	3.50	49	140	10 x 20	2.94	46	183	10 x 20	4.47	31	125
4.7	4R7	10 x 20	2.94	63	180	10 x 20	2.94	46	183	13 x 20	3.77	43	173
10	100	10 x 20	2.94	45	180	10 x 20	2.94	46	183	13 x 25	2.95	69	277
22	220	12.5 x 20	1.60	78	310	13 x 25	1.60	79	314	16 x 25	1.61	128	510
33	330	13 x 25	1.25	105	420	13 x 25	1.25	106	422	16 x 31.5	1.25	155	620
47	470	16 x 25	1.00	140	560	16 x 31.5	1.00	140	560	18 x 31.5	1.01	198	790
68	680	16 x 31.5	0.78	188	750	16 x 31.5	0.75	188	750	18 x 35.5	0.78	248	990
100	101	16 x 31.5	0.65	253	1,010	18 x 31.5	0.65	253	1,010

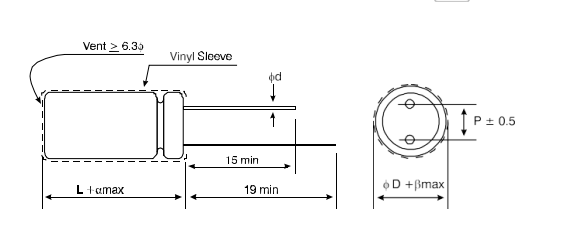

LEAD SPACING EN DIAMETER

D	5	6.3	8	10	12	16	18
P	2.0	2.5	3.5	5.0	5.0	7.5	7.5
d	0.5		0.6			0.8
in	1.0			1.5
b	0.5

FEATURES
◆ 105℃, 2000 ~ 3000 oeren fersekere
◆ Low ESR, geskikt foar it wikseljen fan macht foarrieden, UPS
◆ For ballast use, 3000 ~ 5000 oeren fersekere
◆ Lytsere grutte mei grutte tastiene rimpelstream

◆ Rohs-kompatibel
