SMD aluminium elektrolytyske kondensatoren ▏105℃ 2.000 oeren ▏Leech ESR ▏CAHA
FEATURES
105°C, 2000 oeren fersekere
Low Impedance
Replaces RVHSeries
RoHS-kompatibel
105°C, 2000 oeren fersekere
Low Impedance
Replaces RVHSeries
RoHS-kompatibel
SPESIFIKASJES
| Ûnderdiel | Optreden | |||||||||
| Operating Temp. Berik | -55°C ~ + 105°C | |||||||||
| Capacitance Tolerânsje | ± 20% (120Hz, 20°C) | |||||||||
| Leakage Strom (at 20•C) | I=0.01CV of 3µA (hokker grutter is) nei 2 minuten, where C=rated capacitance in µF V=rated DC working Volts | |||||||||
| Dissipaasjefaktor
Tanδ at 120 Hz, 20°C |
Rated Voltage | 6.3 | 10 | 16 | 25 | 35 | ||||
| Tanδ (max) | 0.30 | 0.26 | 0.22 | 0.16 | 0.13 | |||||
| Rated Voltage | 6.3 | 10 | 16 | 25 | 35 | |||||
| Lege temperatuer
Skaaimerken (op 120 Hz) |
Impedânsje Ratio |
Z(-25°C) /Z(+20°C) | 4 | 3 | 2 | 2 | 2 | |||
| Z(-40°C) /Z(+20°C) | 8 | 5 | 4 | 3 | 3 | |||||
|
Life Test |
Testtiid |
Load Life Shelf Life | ||||||||
| 2000 Hrs | 1000 Hrs | |||||||||
| Capacitance feroaring | Binnen ± 20% fan begjinwearde | Binnen ± 20% fan begjinwearde | ||||||||
| Dissipaasjefaktor | Minder as 200% fan oantsjutte wearde | Minder as 200% fan oantsjutte wearde | ||||||||
| Leakage Strom | Binnen oantsjutte wearde | Binnen oantsjutte wearde | ||||||||
| Test Betingsten | 20°C (neidat rated spanning oanfrege 2000 hours at
105°C |
20°C (nei opslach foar 1000 oeren op 105 °C
without voltage) |
||||||||
| Ripple Strom & Frekwinsje Multilpiers | VDC(V) Freq. (Hz) | 50,60 | 120 | 1K | 10K op | |||||
| 6.3 ~ 35 | 0.64 | 0.8 | 0.93 | 1.0 | ||||||
| Standerts | Voldoet oan karakteristyk W fan JIS C 5141 | |||||||||
DIMINSJE, IMPEDAANSJE & FERGESE RIPPLE CURRENT
Ripple Current mA/rms at 120 Hz, 105°C
Impedânsje : at 100K Hz, 20ºC
| VDC
μF Ynhâld |
6.3V (0J) | 10V (1IN) | 16V (1C) | 25V (1E) | 35V (1V) | |||||||||||
| φD x L Imp. mA | φD x L Imp. mA | φD x L Imp. mA | φD x L Imp. mA | φD x L Imp. mA | ||||||||||||
| 47 | 470 | 8 x 10 | 0.45 | 369 | ||||||||||||
| 100 | 101 | 8 x 10 | 0.45 | 369 | 10 x 10 | 0.25 | 553 | |||||||||
| 150 | 151 | 8 x 10 | 0.45 | 369 | ||||||||||||
|
220 |
221 |
8 x 10 |
0.45 |
369 |
10 x 10 | 0.25 | 553 | |||||||||
| 8 x 10 | 0.45 | 369 | ||||||||||||||
|
330 |
331 |
8 x 10 |
0.45 |
369 |
553 | 10 x 10 | 0.25 | 553 | ||||||||
| 8 x 10 | 0.45 | 369 | ||||||||||||||
| 470 | 471 |
8 x 10 |
0.45 |
369 |
10 x 10 | 0.25 | 553 | 8 x 10 | 0.45 | 369 | ||||||
| 8 x 10 | 0.45 | 369 | ||||||||||||||
| 820 | 821 | 10 x 10 | 0.25 | 553 | ||||||||||||
| 1000 | 102 | 10 x 10 | 0.25 | 553 | ||||||||||||

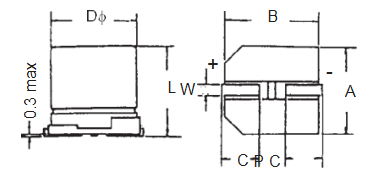

PAD SPACING EN DIAMETER
| φD±0.5 | L | A±0.2 | B±0.2 | C±0.2 | W | P±0.2 |
| 8 | 10±0,5 | 8.4 | 8.4 | 3.0 | 0.7 nei 1.1 | 3.1 |
| 10 | 10±0,5 | 10.4 | 10.4 | 3.3 | 0.7 nei 1.1 | 4.7 |
PART NUMMER Foarbyld
CAHA 470 M 1V TR 080100
