Radialni vodilni večplastni keramični kondenzator | CCBA

High-density multilayer construction enables superior performance and capacitance range. Lastniški epoksidni premaz, ki zavira gorenje, zagotavlja optimalno zaščito okolja in dielektrično trdnost. Nestandardne vrednosti, v- povečane vrednosti napetosti, Označevanje po meri, vojaški pregled, rez & oblikovani vodi, itd., so na voljo. Na voljo tudi ujemajoči seti in omrežja.
Datasheet-For-Radial-Leads-Multilayer-Ceramic-Capacitor-CCBA.pdf (2807 Prenosi )

Lastnosti

◆ Industry’s widest range- 0.47pF to 10uF, tolerances to 1%
◆ Space-saving radial leaddesign
◆ COG (NPO), X7R, Z5U and Y5V temperature coefficients
◆Tape and reel packaging available
◆ Standard industry sizes
◆ High voltage models available
◆ Cut and formed leads available

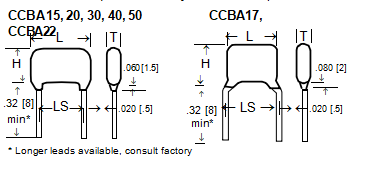

DIMENZIJE

Jinpei Type L Max. H Max. T Max. LS ±.024 [0.6]
CCBA15 .165 [4.2] .150 [3.81] .150 [3.81] .100 [2.5]
CCBA17 .150 [3.81] .150 [3.81] .150 [3.81] .200 [5.0]
CCBA20 .200 [5.08] .200 [5.08] .150 [3.81] .100 [2.5]
CCBA22 .200 [5.08] .200 [5.08] .150 [3.81] .200 [5.0]
CCBA30 .300 [7.62] .217 [5.5] .150 [3.80] .200 [5.0]
CCBA40 .413 [10.5] .394 [10] .165 [4.2] .217 [5.5]
* CCBA50 .492 [12.5] .433 [11] .165 [4.2] .295 [7.5]



BODY STYLE (additional styles available)

DIELECTRIC CHARACTERISTICS (typical)

ITEM (NPO N) X7R B Y5V F (Z5U M) 2
kapa. Razpon, E12 values 0.47 pF- 0.1uF 330 pF – 1uF 1,000 pF -10uF
Toleranca kapacitivnosti <10pF: ±.1pF, .25pF, .5pF (std)

³10pF: ±1 %, ±2 %, ± 5%(std), ± 10%

 ± 5%, ± 10% (std),

±20 %

 ±20 % (std), +80/- 20%
Območje delovne temperature -55°C to +125°C -55°C to +125°C -30°C do +85 °C
Temperaturne značilnosti 0 ± 30ppm/°C 3 ±15% max over op.temp range +22%/-82% (+22%/-56%)

max over operating temp range
Aging (cap loss/decade hr) negligible 2% 7%
Voltage Coef (DC@ max V) negligible -50% to+10% typ -80% to+20% typ
Faktor disipacije (1KHz,25° C.) 0.15% (+25° C. & +125° C.)

1.0VRMS, 1MHz for values<1000pF

 2.5% Max., 1VRMS 4.0% maks. 0.5 VRMS
Insulation Resistance 25°C (MIL-STD-202-METHOD-302) 100GW or 1000MW-uF whichever is less 100GW or 1000MW-uF whichever is less 10GW or 1000MW-uF whichever is less
Dielektrična trdnost 3x rated VDC 3x rated VDC 3x rated VDC
Življenjski test (1000 ure) 2x rated voltage @+125°C

DC<3% or 0.25pF wig

 2x rated voltage at +125°C

DC<20%

 1.5x rated voltage at +85°C

DC<30%



CAPACITANCE RANGE

Jinpei TYPE WVDC1 STANDARD CAPACITANCE RANGE 1
(NPO N )

Std. tol. = 5%

 X7R B

Std. tol. = 10%

 Y5V F(Z5U M) 2

Std. tol. = 20%
CCBA15, CCBA17 25

50

100

 0.47 – 3300pF

0.47 – 2200pF

0.47 – 1000pF

 100pF- 0.22uF

100pF- 0.1uF

100pF- 0.047uF

 .01uF – 1.2uF

.01uF – 1uF 1000pF – 0.1uF
CCBA20,

CCBA22

 25

50

100

 0.47 – 6800pF

0.47 – 4700pF

0.47 – 3900pF

 100pF- 1uF

100pF- 0.47uF

100pF- 0.1uF

 .01uF – 1.2uF

.01uF – 1uF

.01uF – 0.33uF

CCBA30

 25 10 – 10,000pF 470pF- 1uF .1uF – 1.5uF
50 10 – 6800pF 470pF – 1uF .1uF – 1.5uF
100 5 – 4700pF 100pF – 0.22uF .1uF – 1.0uF

CCBA40

 25 10 – 47,000pF 1000pF – 1uF .68uF – 4.7uF
50 10 -27,000pF 1000pF – 1uF .68uF – 3.3uF
100 5 -22,000pF 100pF – 0.47uF .68uF – 2.2uF

CCBA50

 25 1000pF – 0.1uF .01uF – 2.2uF 1uF – 10uF
50 1000pF- 0.047uF .01uF – 2.2uF 1uF – 6.8uF
100 1000pF- 0.033uF .01uF – 1uF 1uF – 2.2uF

1 Expanded range available, consult factory

2 Y5V is standard, Z5U is avail. (Y5V & Z5U are considered interchangeable)

3 ±60ppm <10pF

Uvod
High-density multilayer construction enables superior
performance and capacitance range. Proprietary flame retardant
epoxy coating ensures optimum environmental protection and
dielectric strength. Nestandardne vrednosti, v- creased voltage
ratings, Označevanje po meri, vojaški pregled, rez & oblikovani vodi,
itd., so na voljo. Na voljo tudi ujemajoči seti in omrežja.

Kategorija: Radialni vodilni večplastni keramični kondenzator
