Splošni kondenzator filma Porpuse Metalized Polyaster Film | Cdab
Uvod
CDAB Series are constructed with metalized polyester film dielectric, praškasti premaz z bakrenim svincem in epoksi smolo. Primerni so za blokado, sklopka, ločevanje, filtriranje, bypass timing circuit and ideal for use in telecommunication equipment, data processing equipment, industrijski instrument, avtomatski nadzorni sistemi in druga splošna elektronska oprema.
Lastnosti
◆Temperature Range: -40~115℃
◆ Območje kapacitivnosti: 0.01~10uF
◆ Toleranca kapacitivnosti: 5% 10% 20%
◆ Rated Voltage 100VDC ~ 630VDC
PRIMER ŠTEVILKE DELA
TOLERANCA
| Koda | Strpnost |
| J | + 5% |
| K | + 10% |
| M | + 20% |
KODA KAPACITETE
| F | 0.01 | 0.047 | 0.1 | 0.47 | 1.0 | 4.7 | 10 |
| pF | 10000 | 47000 | 100000 | 470000 | – | – | – |
| Koda | 103 | 473 | 104 | 474 | 105 | 475 | 106 |
NAZIVNA NAPETOST
| WV | 100 | 250 | 400 | 630 |
| Koda | 2A | 2E | 2G | 2J |
PRIMERI VODILNEGA SLOGA
EMBALAŽA
| Meth | od | V razsutem stanju | Strelivo | Kolut |
| Koda | B | A | R | |
TAPE CODE (Lead spacing on tape, if taped)
| Razmik | 5.0mm | 7.5mm | 10mm | 15mm |
| Pakiranje | A ali R | A ali R | A | A |
| Koda | RT1 | RT2 | RT3 | RT4 |
RADIALNI RAZMAK VODNIKOV
* Leadspace je ravni svinec, neoblikovan izvirni leadspace
| mm | 5.0 | 7.5 | 10 | 15 | 22.5 | 27.5 |
| Koda | 050 | 075 | 100 | 150 | 225 | 275 |
DOLŽINA VODILA OD SEDEŽNE RAVNINE
(Bulk Pack and is + 1mm when < 10mm, otherwise is nominal)
| mm | 5 | 10 | 15 | 20 | 25 |
| Koda | 050 | 100 | 150 | 200 | 250 |
VODILNI SLOG
| Koda | Slog |
| S | Naravnost |
| K | Kink-In (Stand Off) |
| F | Form Out** |
| jaz | Form In** |
** For Bulk packaging with formed leads, add an additional 3 digit lead spacing code at end of part number.
MAKSIMALNE DIMENZIJE (mm)
| W . V. | 1 0 0 V D C ( 2 A ) | 2 5 0 V D C ( 2 E ) | 4 0 0 V D C ( 2 G ) / 4 5 0 V D C ( 2 W ) | 6 3 0 V D C ( 2 J ) | |||||||||||||||||
| m F | C o d e | W | H | T | Str | d F | W | H | T | Str | d F | W | H | T | Str | d F | W | H | T | Str | d F |
| 0 .0 1 | 1 0 3 | 13 .0 | 8 .0 | 5.0 | 10 .0 | 0 .6 | |||||||||||||||
| 0 .0 1 2 | 1 2 3 | 13 .0 | 8 .5 | 5.0 | 10 .0 | 0 .6 | |||||||||||||||
| 0 .0 1 5 | 1 5 3 | 10 .5 | 8.0 | 4 .5 | 7.5 | 0 .6 | 13 .0 | 9 .5 | 5.5 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 1 8 | 1 8 3 | 10 .5 | 8.5 | 5 .0 | 7.5 | 0 .6 | 13 .0 | 11 .0 | 5.5 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 2 2 | 2 2 3 | 10 .5 | 8.5 | 5 .0 | 7.5 | 0 .6 | 13 .0 | 11 .5 | 6.0 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 2 7 | 2 7 3 | 10 .5 | 9.0 | 5 .5 | 7.5 | 0 .6 | 13 .0 | 12 .0 | 6.5 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 3 3 | 3 3 3 | 10 .5 | 9.5 | 6 .0 | 7.5 | 0 .6 | 13 .0 | 12 .5 | 7.0 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 3 9 | 3 9 3 | 10 .5 | 8 .0 | 4 .0 | 7 .5 | 0 .6 | 13 .0 | 8.5 | 4 .5 | 10 .0 | 0 .6 | 13 .0 | 14 .0 | 7.0 | 10 .0 | 0 .6 | |||||
| 0 .0 4 7 | 4 7 3 | 10 .5 | 8 .0 | 4 .5 | 7 .5 | 0 .6 | 9.5 | 7.5 | 4 .0 | 7.5 | 0 .6 | 13 .0 | 9 .0 | 5 .5 | 10 .0 | 0 .6 | |||||
| 13 .0 | 9.0 | 5 .0 | 10 .0 | 0 .6 | |||||||||||||||||
| 0 .0 5 6 | 5 6 3 | 10 .5 | 8 .5 | 5 .0 | 7 .5 | 0 .6 | 13 .0 | 9.5 | 5 .5 | 10 .0 | 0 .6 | 18 .5 | 11 .0 | 5.5 | 15 .0 | 0 .8 | |||||
| 0 .0 6 8 | 6 8 3 | 10 .5 | 8 .5 | 5 .0 | 7 .5 | 0 .6 | 13 .0 | 11 .0 | 5 .5 | 10 .0 | 0 .6 | 18 .5 | 11 .5 | 6.0 | 15 .0 | 0 .8 | |||||
| 0 .0 8 2 | 8 2 3 | 10 .5 | 9 .5 | 5 .5 | 7 .5 | 0 .6 | 13 .0 | 11 .5 | 5 .5 | 10 .0 | 0 .6 | 18 .5 | 12 .0 | 6.5 | 15 .0 | 0 .8 | |||||
| 0 .1 | 1 0 4 | 10 .5 | 7 .5 | 4.0 | 7 .5 | 0 .6 | 10 .5 | 10 .0 | 6 .0 | 7 .5 | 0 .6 | 12 .0 | 9.0 | 5 .0 | 10 .0 | 0 .6 | 18 .5 | 12 .0 | 6.0 | 15 .0 | 0 .8 |
| 0 .1 2 | 1 2 4 | 10 .5 | 7 .5 | 4.0 | 7 .5 | 0 .6 | 10 .5 | 10 .5 | 6 .5 | 7 .5 | 0 .6 | 18 .5 | 10 .5 | 5 .0 | 15 .0 | 0 .8 | 18 .5 | 14 .5 | 7.0 | 15 .0 | 0 .8 |
| 0 .1 5 | 1 5 4 | 10 .5 | 8 .0 | 4.5 | 7 .5 | 0 .6 | 10 .5 | 11 .0 | 7 .0 | 7 .5 | 0 .6 | 18 .5 | 11 .5 | 5 .5 | 15 .0 | 0 .8 | 18 .5 | 15 .5 | 8.0 | 15 .0 | 0 .8 |
| 0 .1 8 | 1 8 4 | 10 .5 | 8 .5 | 5.0 | 7 .5 | 0 .6 | 13 .0 | 9 .0 | 4 .5 | 10 .0 | 0 .6 | 18 .5 | 12 .0 | 6 .0 | 15 .0 | 0 .8 | 18 .5 | 16 .0 | 8.5 | 15 .0 | 0 .8 |
| 0 .2 2 | 2 2 4 | 10 .5 | 8 .5 | 5 .0 | 7 .5 | 0 .6 | 10 .3 | 11 .0 | 6 .1 | 7 .5 | 0 .6 | 11 .3 | 4.3 | 7 .0 | 10 .0 | 0 .8 | 11 .3 | 11 .3 | 7.0 | 10 .0 | 0 .6 |
| 13 .0 | 11 .0 | 5 .0 | 10 .0 | 0 .6 | 18 .5 | 13 .5 | 6 .0 | 15 .0 | 0 .8 | 18 .5 | 16 .5 | 9.0 | 15 .0 | 0 .8 | |||||||
| 0 .2 7 | 2 7 4 | 10 .5 | 9 .5 | 5.5 | 7 .5 | 0 .6 | 13 .0 | 11 .5 | 6 .0 | 10 .0 | 0 .6 | 18 .5 | 14 .0 | 7 .0 | 15 .0 | 0 .8 | 26 .5 | 16 .5 | 7.5 | 22 .5 | 0 .8 |
| 0 .3 3 | 3 3 4 | 10 .5 | 10 .0 | 6 .0 | 7 .5 | 0 .6 | 12 .0 | 12 .0 | 6 .5 | 7 .5 | 0 .6 | 12 .0 | 12 .0 | 7 .5 | 10 .0 | 0 .6 | 26 .5 | 17 .0 | 8 .5 | 22 .5 | 0 .8 |
| 13 .0 | 12 .0 | 6 .5 | 10 .0 | 0 .6 | 18 .5 | 15 .0 | 7 .5 | 15 .0 | 0 .8 | ||||||||||||
| 0 .3 9 | 3 9 4 | 10 .5 | 10 .5 | 6.0 | 7 .5 | 0 .6 | 18 .0 | 9 .0 | 5 .0 | 15 .0 | 0 .6 | 18 .5 | 15 .5 | 8 .5 | 15 .0 | 0 .8 | 26 .5 | 17 .0 | 9.0 | 22 .5 | 0 .8 |
| 0 .4 7 | 4 7 4 | 10 .5 | 12 .0 | 6.0 | 7 .5 | 0 .6 | 18 .5 | 13 .0 | 5 .5 | 15 .0 | 0 .8 | 18 .5 | 17 .5 | 8 .5 | 15 .0 | 0 .8 | 26 .5 | 18 .0 | 10 .0 | 22 .5 | 0 .8 |
| 0 .5 6 | 5 6 4 | 13 .0 | 11 .0 | 5.5 | 10 .0 | 0 .6 | 18 .5 | 13 .0 | 6 .0 | 15 .0 | 0 .8 | 26 .0 | 16 .0 | 7 .5 | 22 .5 | 0 .8 | 26 .5 | 18 .0 | 11 .0 | 22 .5 | 0 .8 |
| 0 .6 8 | 6 8 4 | 13 .0 | 11 .5 | 6.0 | 10 .0 | 0 .6 | 18 .5 | 13 .5 | 6 .0 | 15 .0 | 0 .8 | 26 .0 | 17 .0 | 8 .0 | 22 .5 | 0 .8 | 26 .0 | 21 .5 | 12 .5 | 22 .5 | 0 .8 |
| 0 .8 2 | 8 2 4 | 13 .0 | 13 .0 | 6.0 | 10 .0 | 0 .6 | 18 .5 | 14 .0 | 7 .0 | 15 .0 | 0 .8 | 26 .0 | 17 .5 | 9 .0 | 22 .5 | 0 .8 | 31 .0 | 21 .0 | 12 .0 | 27 .5 | 0 .8 |
| 1 | 1 0 5 | 13 .0 | 14 .0 | 6.5 | 10 .0 | 0 .6 | 18 .5 | 15 .0 | 8 .5 | 15 .0 | 0 .8 | 26 .0 | 18 .5 | 1 0 .0 | 22 .5 | 0 .8 | 31 .0 | 22 .0 | 13 .5 | 27 .5 | 0 .8 |
| 1 .2 | 1 2 5 | 18 .5 | 12 .5 | 5.5 | 15 .0 | 0 .8 | 18 .5 | 15 .5 | 8 .5 | 15 .0 | 0 .8 | 26 .0 | 20 .0 | 1 1 .0 | 22 .5 | 0 .8 | 31 .0 | 23 .5 | 15 .0 | 27 .5 | 0 .8 |
| 1 .5 | 1 5 5 | 18 .5 | 13 .5 | 6.0 | 15 .0 | 0 .8 | 18 .5 | 16 .5 | 9 .5 | 15 .0 | 0 .8 | 31 .0 | 19 .5 | 1 1 .0 | 27 .5 | 0 .8 | 31 .0 | 26 .5 | 16 .0 | 27 .5 | 0 .8 |
| 1 .8 | 1 8 5 | 18 .5 | 14 .0 | 6.5 | 15 .0 | 0 .8 | 26 .0 | 16 .0 | 7 .5 | 22 .5 | 0 .8 | 31 .0 | 21 .0 | 1 2 .0 | 27 .5 | 0 .8 | 31 .0 | 28 .0 | 18 .0 | 27 .5 | 0 .8 |
| 2 .2 | 2 2 5 | 18 .5 | 15 .0 | 7.0 | 15 .0 | 0 .8 | 26 .0 | 17 .0 | 8 .5 | 22 .5 | 0 .8 | 31 .0 | 23 .5 | 1 3 .0 | 27 .5 | 0 .8 | 31 .0 | 30 .5 | 20 .0 | 27 .5 | 0 .8 |
| 2 .7 | 2 7 5 | 18 .5 | 16 .0 | 7.5 | 15 .0 | 0 .8 | 26 .0 | 18 .0 | 9 .5 | 22 .5 | 0 .8 | ||||||||||
| 3 .3 | 3 3 5 | 18 .5 | 16 .5 | 8.5 | 15 .0 | 0 .8 | 26 .0 | 19 .0 | 10 .5 | 22 .5 | 0 .8 | ||||||||||
| 3 .9 | 3 9 5 | 26 .0 | 16 .0 | 7.0 | 22 .5 | 0 .8 | 26 .0 | 21 .5 | 10 .5 | 22 .5 | 0 .8 | ||||||||||
| 4 .7 | 4 7 5 | 26 .0 | 17 .0 | 7.5 | 22 .5 | 0 .8 | 26 .0 | 22 .0 | 12 .0 | 22 .5 | 0 .8 | ||||||||||
| 5 .6 | 5 6 5 | 26 .0 | 17 .5 | 8.0 | 22 .5 | 0 .8 | 31 .0 | 22 .0 | 12 .0 | 27 .5 | 0 .8 | ||||||||||
| 6 .8 | 6 8 5 | 26 .0 | 18 .5 | 9.0 | 22 .5 | 0 .8 | 31 .0 | 23 .5 | 13 .0 | 27 .5 | 0 .8 | ||||||||||
| 8 .2 | 8 2 5 | 26 .0 | 20 .0 | 10 .0 | 22 .5 | 0 .8 | 31 .0 | 25 .0 | 14 .5 | 27 .5 | 0 .8 | ||||||||||
| 1 0 | 1 0 6 | 26 .0 | 21 .0 | 11 .5 | 22 .5 | 0 .8 | 31 .0 | 26 .5 | 16 .5 | 27 .5 | 0 .8 | ||||||||||

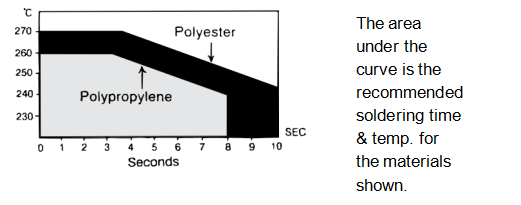

SPAJKANJE
KODNI DIAGRAM RADIALNEGA TRAKA
SPECIFIKACIJE
| Opis |
Pismo |
Dimenzija (mm) | |||
| RT2 | RT3 | RT4 | Tol. | ||
| Premer vodilne žice | d | 0.5 / 0.6 | 0.6 | 0.6 / 0.8 | + 0.05 |
| Tape Pitch | Str | 12.7 | 12.7 | 25.4 | + 1 |
| Feed Hole Pitch | PO | 12.7 | 12.7 | 12.7 | + 0.2 |
| Centriranje vodilne žice | P1 | 2.6 / 3.75 | 7.7 | 5.2 | + 0.7 |
| Centriranje telesa | P2 | 6.35 | 12.7 | 12.7 | + 1.3 |
| Razmik med vodili (Pitch) | F | 7.5 | 10 | 15 | + 0.6; -0.1 |
| Poravnava komponent | Δh | 0 | 0 | 0 | + 2 |
| Višina komponente iz središča traku | H | 18.5 | 18.5 | 18.5 | + 0.5 |
| Širina nosilnega traku | W | 18 | 18 | 18 | + 1; -0.5 |
| Pridržite širino traku | WO | 6 | 9 | 10 | Min |
| Položaj luknje | W1 | 9 | 9 | 9 | + 0.5 |
| Pridržite položaj traku | W2 | 3 | 3 | 3 | maks |
| Premer dovodne luknje | naredi | 4 | 4 | 4 | + 0.2 |
| Debelina traku | t | 0.5 | 0.5 | 0.5 | + 0.2 |
| Slika | fig | 1.2 oz 3 | 4 | 4 | |
Opomba: *Dopust akumuliranega koraka manj kot 1 mm pri vsoti 20 igrišča.
*Neprekinjena prazna komponenta manj kot 3 zaporednih kosov.
*Skupno prazno na enem kolutu manj kot 1%.
