Kondenzatorji prevodnih polimernih čipov Tantalum SMD ▏CBAC
◆Epoxy molded encapsulation, Next, Enostaven za integracijo, Polarizirano
◆Extremely low ESR , Volumetrično učinkovito , Stabilen v elektriki & zmogljivosti shranjevanja , Dolgo življenje- razpon, Velika zanesljivost
◆Typical applications include DC/DC converters , prenosni računalniki , prenosna elektronika , telekomunikacije (mobilni telefon in bazno postajo ), zasloni ,SSD,HDD and USB
◆Operative Standard: QJ/PWV517-2013.
DIMENZIJE – MILLIMETERS
| Case Size | L | W1 | H | W2 | S | |
| A | 1206 | 3216 | 3.2±0,2 | 1.6±0,2 | 1.6±0,2 | 0.8±0,2 | 1.2±0,2 |
| B | 1210 | 3225 | 3.5±0,2 | 2.8±0,2 | 1.9±0,2 | 0.8±0,2 | 2.2±0,2 |
| C | 2312 | 6032 | 6.0±0,2 | 3.2±0,2 | 2.5±0,2 | 1.3±0,2 | 2.2±0,2 |
| H | 2917 | 7343 | 7.3±0,2 | 4.3±0,2 | 2.0±0,2 | 1.3±0,2 | 2.4±0,2 |
| D | 2917 | 7343 | 7.3±0,2 | 4.3±0,2 | 2.8±0,2 | 1.3±0,2 | 2.4±0,2 |
| E | 2917 | 7343 | 7.3±0,4 | 4.3±0,4 | 4.1±0,4 | 1.3±0,2 | 2.4±0,2 |
| V | 2924 | 7361 | 7.3±0,4 | 6.1±0,4 | 3.6±0,4 | 1.35±0,2 | 3.0±0,2 |
| W | 2924 | 7361 | 7.3±0,4 | 6.1±0,4 | 4.1±0,4 | 1.35±0,2 | 3.0±0,2 |
PRIMER ŠTEVILKE DELA
Soldering Process
Jinpei tantalum capacitors are compatible with wave (single or dual), convection, IN, or vapor phase reflow techniques. Preheating of these components is recommended to avoid extreme thermal stress.

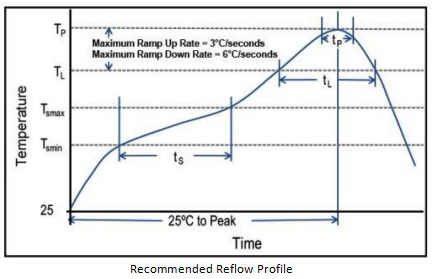

Suntan’s recommended profile conditions for convection and IR reflow reflect the profile conditions of the IPC/J CBAC standard for moisture sensitivity testing. The devices can safely withstand a maximum of three reflow passes at these conditions.
Hand soldering should be performed with care due to the difficulty in process control. If performed, care should be taken to avoid contact of the soldering iron to the molded case. The iron should be used to heat the solder pad, applying solder between the pad and the termination, until reflow occurs. Once reflow occurs, the iron should be removed immediately. “Wiping” the edges of a chip and heating the top surface is not recommended.
During typical reflow operations, a slight darkening of the gold- colored epoxy may be observed. This slight darkening is normal and not harmful to the product. Marking permanency is not affected by this change.
Opomba: Specifikacije se lahko spremenijo brez predhodnega obvestila. Za več podrobnosti in posodobitev, Obiščite našo spletno stran.
Lastnosti
⚫ Epoxy molded encapsulation, Next, Enostaven za integracijo, Polarizirano
⚫ Extremely low ESR , Volumetrično učinkovito , Stabilen v elektriki & storage performances, Dolga življenjska doba,Velika zanesljivost
⚫ Typical applications include DC/DC converters, prenosni računalniki, prenosna elektronika, telekomunikacije
(mobilni telefon in bazno postajo ), zasloni,SSD,HDDand USB
⚫ Operative Standard: QJ/PWV517-2013.
⚫ Skladno z RoHS
