Lastnosti
Dolgo življenje, 105℃, 4,000 ~ 7,000 Zagotovljene ure
Nizek ESR, primeren za stikalne napajalnike
Manjša velikost z velikim dovoljenim valovnim tokom

Datasheet-For-Low-ESR-Electrolytic-Capacitors-▏6.3100V-▏40007000Hrs-▏CADE.pdf (3591 Prenosi )

SPECIFIKACIJE

Postavka	Učinkovitost
Delovna temp	-55°C ~ +105 °C
Toleranca kapacitivnosti	± 20% (120Hz, 20° C.)
Puščanje toka (pri 20°C)	I = 0,01CV oz 3 (mA) kar je večje (po 2 minut) kje, C = nazivna kapacitivnost v mF. V = nazivna enosmerna delovna napetost v V.
Faktor disipacije Tan oat 120Hz, 20° C.	Nazivna napetost	6.3	10		16	25	35		50	63	100
	Tan o(maks)	0.22	0.19		0.16	0.14	0.12		0.10	0.09	0.08
	Ko kapacitivnost preseže 1000mF, 0.02 se doda vsakih 1000 mF povečanja.
Nizka temperatura Značilnosti (pri 120Hz)	Nazivna napetost	6.3	10		16	25	35		50	63	100
	Z(-25° C.)/Z(+20° C.)	3	3		3	3	3		3	3	3
	Razmerje impedance ne sme presegati vrednosti, navedenih v tabeli.
Preizkus življenjske dobe obremenitve	Testni čas	4,000 hours for φD≤6.3mm 5,000 hours for φD=8mm 6,000 hours for φD=10mm 7,000 hours for φD≥12.5mm
	Sprememba kapacitivnosti	Within ±25% of initial value
	Faktor disipacije	Manj kot 200% določene vrednosti
	Puščanje toka	V okviru določene vrednosti
	The above specifications hall be satisfied when the capacitors are restored to 20°C after the rated ripple current for 4,000 ~ 7,000 ure pri 105°C.
Test življenjske dobe	Testni čas	1,000 ure
	Sprememba kapacitivnosti	Within ±25% of initial value
	Faktor disipacije	Manj kot 200% določene vrednosti
	Puščanje toka	V okviru določene vrednosti
	Zgornje specifikacije so izpolnjene, ko se kondenzatorji po izpostavitvi segrejejo na 20 °C. 1,000 ure pri 105 °C brez priključene napetosti.
Ripple Current & Frekvenčni množitelji	Frekv. (Hz) kapa. (mF)	120		1K		10K		100K gor
	Under ~ 33	0.42		0.70		0.90		1.0
	39 ~ 270	0.50		0.73		0.92		1.0
	330 ~ 680	0.55		0.77		0.94		1.0
	820 ~ 1,800	0.60		0.80		0.96		1.0
	2,200 ~ 15,000	0.70		0.85		0.98		1.0
Standardi	Satisfies Characteristic JIS C 5101-4

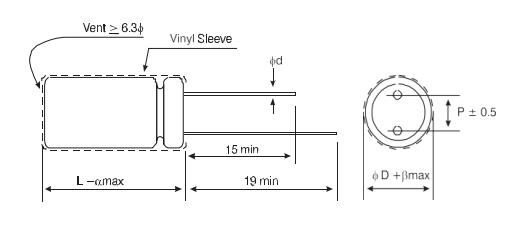

DIMENZIJE

φD	5	6.3	8	10	12.5	16	18
Str	2.0	2.5	3.5	5.0	5.0	7.5	7.5
φd	0.5		0.6			0.8
a	1.0			1.5
b	0.5

DIMENZIJE & DOPUSTNO RIPPLE AKTUALNO

VDC Postavka µF	6.3V (0J)				10V (1A)				16V (1C)				25V (1E)
	φDx L	Impedanca (Oh, Max/100KHz)		Ripple Current (mA/rms, 105° C.)	φDx L	Impedanca (Oh, Max/100KHz)		Ripple Current (mA/rms, 105° C.)	φDx L	Impedanca (Oh, Max/100KHz)		Ripple Current (mA/rms, 105° C.)	φDx L	Impedanca (Oh, Max/100KHz)		Ripple Current (mA/rms, 105° C.)
	φDx L	20° C.	-10° C.	100kHz	φDx L	20° C.	-10° C.	100kHz	φDx L	20° C.	-10° C.	100kHz	φDx L	20° C.	-10° C.	100kHz
4.7													5 x 11	0.6	1.2	180
10									5 x 11	0.6	1.2	180	5 x 11	0.6	1.2	180
22	5 x 11	0.6	1.2	180	5 x 11	0.6	1.2	180	5 x 11	0.6	1.2	180	5 x 11	0.6	1.2	180
33	5 x 11	0.6	1.2	180	5 x 11	0.6	1.2	180	5 x 11	0.6	1.2	180	5 x 11	0.6	1.2	180
39													5 x 11	0.6	1.2	180
47	5 x 11	0.6	1.2	180	5 x 11	0.6	1.2	180	5 x 11	0.6	1.2	180	5 x 11	0.6	1.2	180
56									5 x 11	0.6	1.2	180
82					5 x 11	0.6	1.2	180					6.3 x 11	0.25	0.5	290
100	5 x 11	0.6	1.2	180	5 x 11	0.6	1.2	180	6.3 x 11	0.25	0.5	290	6.3 x 11	0.25	0.5	290
120									6.3 x 11	0.25	0.5	290	6.3 x 15	0.23	0.46	430
150	6.3 x 11	0.25	0.5	290	6.3 x 11	0.25	0.5	290	6.3 x 11	0.29	0.5	290	8 x 11.5	0.117	0.234	555
180					6.3 x 11	0.25	0.5	290	6.3 x 15	0.23	0.46	430
220	6.3 x 11	0.25	0.5	290	6.3 x 11	0.25	0.5	290	8 x 11.5	0.117	0.234	555	8 x 11.5	0.117	0.234	555
220					6.3 x 15	0.23	0.46	430
330	6.3 x 11	0.25	0.500	290	8 x 11.5	0.117	0.234	555	8 x 11.5	0.117	0.234	555	10 x 12.5	0.090	0.18	755
330	6.3 x 15	0.23	0.46	430									8 x 15	0.085	0.17	730
470	8 x 11.5	0.117	0.234	555	8 x 11.5	0.117	0.234	555	10 x 12.5	0.090	0.18	755	10 x 16	0.068	0.136	1,050
470									8 x 15	0.085	0.17	730	8 x 20	0.065	0.130	995
560	8 x 11.5	0.117	0.234	555									10 x 20	0.052	0.104	1,220
680	10 x 12.5	0.090	0.180	755	10 x 12.5	0.090	0.180	755	10 x 16	0.068	0.136	1,050	10 x 20	0.052	0.104	1,220
680					8 x 15	0.085	0.170	730	8 x 20	0.065	0.130	995
820	8 x 15	0.085	0.170	730					10 x 20	0.052	0.104	1,220	10 x 25	0.045	0.090	1,440
820	10 x 12.5	0.090	0.180	755
1,000	10 x 12.5	0.090	0.180	755	10 x 16	0.068	0.136	1,050	10 x 20	0.052	0.104	1,220	12.5 x 20	0.038	0.076	1,655
1,000					8 x 20	0.065	0.130	995					10 x 30	0.035	0.070	1,815
1,200	8 x 20	0.065	0.130	955	10 x 20	0.052	0.104	1,220	10 x 25	0.045	0.090	1,440
1,200	10 x 16	0.068	0.136	1,050
1,500	10 x 20	0.052	0.104	1,220	10 x 20	0.052	0.104	1,220	12.5 x 20	0.038	0.076	1,655	16 x 25	0.022	0.044	2,555
1,500					10 x 25	0.045	0.090	1,440	10 x 30	0.035	0.070	1,815	12.5 x 25	0.030	0.060	1,945
													12.5 x 30	0.025	0.050	2,310
1,800													16 x 20	0.029	0.058	2,205
2,200	10 x 25	0.045	0.090	1,440	12.5 x 20	0.038	0.076	1,655	12.5 x 25	0.030	0.060	1,945	16 x 25	0.022	0.044	2,555
	12.5 x 20	0.038	0.076	1,815	10 x 30	0.035	0.070	1,815					18 x 20	0.028	0.056	2,490
													12.5 x 35	0.022	0.044	2,510
	10 x 30	0.035	0.070	1,815	12.5 x 25	0.030	0.060	1,945	12.5 x 30	0.025	0.050	2,310	16 x 25	0.022	0.044	2,555
2,700									16 x 20	0.029	0.058	2,205
3,300	12.5 x 20	0.038	0.076	1,655	12.5 x 25	0.030	0.060	1,945	16 x 25	0.022	0.044	2,555	16 x 31.5	0.018	0.036	3,010
3,300					12.5 x 30	0.025	0.050	2,310	12.5 x 35	0.022	0.044	2,510	18 x 25	0.020	0.040	2,740
3,900	12.5 x 25	0.030	0.060	1,945	12.5 x 35	0.022	0.044	2,510	16 x 25	0.022	0.044	2,555	16 x 35.5	0.016	0.032	3,150
3,900					16 x 20	0.029	0.058	2,205	18 x 20	0.028	0.056	2,490	18 x 31.5	0.016	0.032	3,635
4,700	16 x 25	0.022	0.044	2,555	16 x 25	0.022	0.044	2,555	16 x 31.5	0.018	0.036	3,010	18 x 35.5	0.015	0.030	3,680
4,700	12.5 x 30	0.025	0.050	2,310					18 x 25	0.020	0.040	2,740
5,600	12.5 x 35	0.022	0.044	2,510	16 x 25	0.022	0.044	2,555	18 x 35.5	0.016	0.032	3,150
5,600	16 x 20	0.029	0.058	2,205	18 x 20	0.028	0.056	2,490	18 x 31.5	0.016	0.032	3,635
6,800	16 x 25	0.022	0.044	2,555	16 x 31.5	0.018	0.036	3,010	18 x 35.5	0.015	0.030	3,680	18 x 40	0.014	0.028	3,800
6,800	18 x 20	0.028	0.056	2,490	18 x 25	0.020	0.040	2,740
8,200	16 x 31.5	0.018	0.036	3,010	16 x 35.5	0.016	0.032	3,150	18 x 35.5	0.015	0.030	3,680
8,200					18 x 31.5	0.016	0.032	3,635
10,000	16 x 31.5	0.016	0.032	3,150	18 x 35.5	0.015	0.030	3,680	18 x 40	0.014	0.028	3,800
10,000	18 x 25	0.020	0.040	2,740
12,000	18 x 31.5	0.016	0.032	3,635
15,000	18 x 35.5	0.015	0.030	3,680	18 x 40	0.014	0.028	3,800

DIMENZIJE & DOPUSTNO RIPPLE AKTUALNO

VDC Postavka μF	35V (1V)				50V (1H)				63V (1J)				100V (2A)
	φDx L	Impedanca (Oh,Max/100KHz)		Ripple Current (mA/rms, 105° C.)	φDx L	Impedanca (Oh, Max/100KHz)		Ripple Current (mA/rms, 105° C.)	φDx L	Impedanca (Oh, Max/100KHz)		Ripple Current (mA/rms, 105° C.)	φDx L	Impedanca (Oh, Max/100KHz)		Ripple Current (mA/rms, 105° C.)
	φDx L	20° C.	-10° C.	100kHz	φDx L	20° C.	-10° C.	100kHz	φDx L	20° C.	-10° C.	100kHz	φDx L	20° C.	-10° C.	100kHz
0.47													5 x 11	43	86	20
1													5 x 11	20	40	30
2.2													5 x 11	9.8	19.6	44
3.3													5 x 11	6.6	13.2	58
4.7	5 x 11	0.6	1.2	180	5 x 11	2.3	4.6	90	5 x 11	4.7	9.4	68	5 x 11	4.6	9.2	74
6.8					5 x 11	1.4	2.8	120	5 x 11	2.5	5.0	95	5 x 11	3.5	7.0	95
10	5 x 11	0.6	1.2	180					5 x 11	2.1	4.2	110	6.3 x 11	1.8	3.6	130
12									5 x 11	2	4.0	145
15									6.3 x 11	1.2	2.4	160	8 x 11.5	0.83	1.66	180
18					5 x 11	1.3	2.6	155					6.3 x 15	0.80	1.60	200
22	5 x 11	0.6	1.2	180	5 x 11	1.2	2.4	170	6.3 x 11	0.71	1.42	250	8 x 11.5	0.68	1.36	230
27	5 x 11	0.6	1.2	180
33	5 x 11	0.6	1.2	180	6.3 x 11	0.43	0.86	300	6.3 x 11	0.71	1.42	250	10 x 12.5	0.46	0.92	320
33													8 x 15	0.45	0.90	360
39									6.3 x 15	0.70	1.40	330
47	6.3 x 11	0.25	0.5	290	6.3 x 11	0.43	0.86	300	8 x 11.5	0.342	0.684	405	10 x 16	0.37	0.74	420
47													8 x 20	0.37	0.74	420
56	6.3 x 11	0.25	0.5	290	6.3 x 15	0.4	0.80	360			0.234
68									8 x 11.5	0.342	0.684	405	10 x 20	0.30	0.60	490
82	6.3 x 11	0.25	0.500	290	8 x 11.5	0.234	0.468	485					10 x 25	0.25	0.50	540
100	8 x 11.5	0.117	0.234	555	8 x 11.5	0.234	0.468	485	10 x 12.5	0.256	0.512	535	12.5 x 20	0.18	0.36	580
100									8 x 15	0.230	0.460	535
120					8 x 15.0	0.155	0.31	635	10 x 16	0.194	0.388	600
120					10 x 12.5	0.162	0.324	615
150	8 x 11.5	0.117	0.234	555	10 x 12.5	0.162	0.324	615	10 x 16	0.194	0.388	660	12.5 x 25	0.13	0.26	710
180					8 x 20	0.12	0.240	860	10 x 20	0.147	0.294	885	12.5 x 30	0.12	0.24	790
180					10 x 16	0.119	0.238	850	12.5 x 16	0.150	0.300	1,020	16 x 20	0.13	0.26	750
220	10 x 12.5	0.090	0.180	755	10 x 16	0.119	0.238	850	10.0 x 20	0.147	0.294	885	16 x 25	0.10	0.20	890
220	8 x 15	0.085	0.170	730	10 x 20	0.090	0.180	1,030	10 x 25	0.130	0.260	1,050	18 x 20	0.11	0.22	850
270					10.0 x 25	0.082	0.164	1,200	16 x 16	0.090	0.180	1,410
330	10 x 16	0.068	0.136	1050	10 x 20	0.09	0.180	1,030	12.5 x 20	0.085	0.170	1,285	16 x 25	0.090	0.180	1,080
330	8 x 20	0.065	0.130	995	10 x 30	0.060	0.120	1,610
390	10 x 20	0.052	0.104	1,220	12.5 x 20	0.063	0.126	1,480	12.5 x 25	0.070	0.140	1,720	18 x 25	0.083	0.166	1,260
390									18 x 16	0.086	0.172	1,690
470	10 x 20	0.052	0.104	1,220	12.5 x 20	0.06	0.120	1,500	12.5 x 25	0.070	0.140	1,720	16 x 31.5	0.076	0.152	1,310
									12.5 x 30	0.055	0.110	2,090
									16 x 20	0.059	0.118	1,765
560	10 x 25	0.045	0.090	1,440	12.5 x 25	0.05	0.100	1,832	16 x 25.0	0.050	0.100	2,160	18 x 31.5	0.068	0.136	1,370
560													18 x 35.5	0.064	0.128	1,410
680	12.5 x 20	0.038	0.076	1,655	12.5 x 25	0.05	0.100	1,832	12.5 x 35	0.047	0.094	2,265
680	10 x 30	0.035	0.070	1,815	16 x 20	0.048	0.096	1,835	18 x 20.0	0.055	0.110	2,290
820					12.5 x 35	0.035	0.068	2,285	16 x 31.5	0.043	0.086	2,670	18 x 40	0.047	0.094	1,520
820					18 x 20	0.042	0.084	2,420	18 x 25	0.043	0.086	2,585
1,000	12.5 x 25	0.030	0.060	1,945	16 x 25.0	0.034	0.068	2,235	16 x 31.5	0.043	0.086	2,670
1,000									16 x 35.5	0.036	0.072	2,770
1,200	12.5 x 30	0.025	0.050	2,310	16 x 31.5	0.028	0.056	2,700	18 x 31.5	0.032	0.064	2,950
1,200	16 x 20	0.029	0.058	2,205	18 x 25	0.029	0.058	2,610
1,500	16 x 25	0.022	0.044	2,555	16 x 31.5	0.028	0.056	2,700	18 x 35.5	0.030	0.060	3,095
1,500	12.5 x 35	0.022	0.044	2,510	16 x 35.5	0.025	0.05	2,790
1,800	16 x 25.0	0.022	0.044	2,555	18 x 31.5	0.025	0.05	3,000
1,800	18 x 20	0.028	0.056	2,490
2,200	16 x 31.5	0.018	0.036	3,010	18 x 35.5	0.023	0.046	3,100	18 x 40	0.028	0.056	3,200
2,200	18 x 25.0	0.02	0.040	2,740
2,700	16 x 35.5	0.016	0.032	3,150
2,700	18 x 31.5	0.016	0.032	3,635
3300	18 x 35.5	0.015	0.030	3,680
4700	18 x 40	0.014	0.028	3,800

PRIMER ŠTEVILKE DELA

CADE 102 M 1C BK 100 200

Lastnosti
◆ Longlife,105℃,4,000~7,000hours assured
◆ LowESR, suitable forswitching power supplies
◆ Manjša velikost z velikim dovoljenim valovnim tokom

◆ Skladno z Rohs

Kategorija: Nizki aluminijasti elektrolitski kondenzatorji ESRMimo skrbnik Pohod 15, 2020

→
