Kapasitor film poliester logam |Resistensi kelembaban tinggi | CDAC
Seri CDAC dibuat dengan dielektrik film poliester metalized, lapisan timah tembaga dan resin epoksi. Mereka cocok untuk memblokir, kopel, decoupling, penyaringan, sirkuit pewaktuan bypass dan ideal untuk digunakan dalam data / peralatan telekomunikasi, instrumen industri, sistem kontrol otomatis dan aplikasi elektronik umum lainnya.
FITUR
◆ Suhu Pengoperasian. Jangkauan :-40°C~105°C (VR Menurunkan 1.25% per °C di atas 85 °C)
◆ Rentang Kapasitansi:0.1~10uF
◆ Toleransi Kapasitansi: J=5% K=10% M=20%
◆ Nilai Tegangan V R 85°C: 100V 250V 400V 630V
◆ Faktor Disipasi: 1% MAKS @1KHZ 25℃

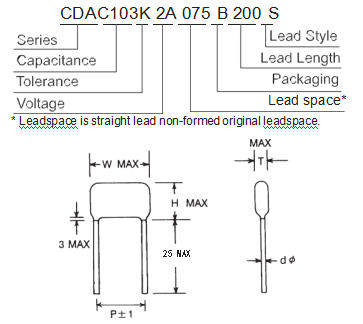

Contoh nomor bagian
KODE KAPASITAN
| F | 0.01 | 0.047 | 0.1 | 0.47 | 1.0 | 4.7 | 10 |
| PF | 10000 | 47000 | 100000 | 470000 | – | – | – |
| Kode | 103 | 473 | 104 | 474 | 105 | 475 | 106 |
Tegangan Dinilai
| WV | 100 | 250 | 400 | 630 |
| Kode | 2A | 2E | 2G | 2J |
| Met | D | Dalam jumlah besar | Amunisi | Kumparan |
| Kode | B | A | R | |
| Spasi | G | 7.5mm | 10mm | 15mm |
| Sedang mengemas | A atau r | A | A | |
| Kode | RT2 | RT3 | RT4 | |
Jarak timbal radial
* Leadspace lurus lurus leadspace asli non-formed asli.
| mm | 7.5 | 10 | 15 | 20 | 27.5 | 32.5 | 37.5 | 42.5 | |
| Kode | 075 | 100 | 150 | 200 | 275 | 325 | 375 | 425 | |
Panjang timbal dari pesawat tempat duduk
| mm | 5 | 10 | 15 | 20 | 25 |
| Kode | 050 | 100 | 150 | 200 | 250 |
Gaya utama
| Kode | Gaya |
| S | Lurus |
| K | Kink-in (Berdiri) |
| F | Membentuk |
| SAYA | Bentuk di |
Dimensi maksimum (mm)
| (µf) |
Kode |
W | H | T | P | d F | W | H | T | P | melakukanΦ | W | H | T | P | melakukanΦ | W | H | T | P | melakukanΦ |
| 0.01 | 103 | 10.5 | 9.0 | 5.5 | 7.5 | 0.6 | 10.5 | 9.0 | 5.5 | 7.5 | 0.6 | 10.5 | 9.0 | 5.5 | 7.5 | 0.6 | 13.0 | 10.0 | 6.0 | 10.0 | 0.6 |
| 0.015 | 153 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 10.5 | 6.5 | 10.0 | 0.6 |
| 0.022 | 223 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 9.5 | 6.0 | 10.0 | 0.6 | 13.0 | 12.5 | 7.5 | 10.0 | 0.6 |
| 0.033 | 333 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 10.0 | 6.5 | 10.0 | 0.6 | 18.5 | 12.0 | 6.5 | 15.0 | 0.6 |
| 0.047 | 473 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 12.0 | 7.0 | 10.0 | 0.6 | 18.5 | 12.5 | 7.5 | 15.0 | 0.6 |
| 0.068 | 683 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 10.0 | 6.5 | 7.5 | 0.6 | 13.0 | 13.0 | 8.0 | 10.0 | 0.6 | 18.5 | 14.0 | 8.5 | 15.0 | 0.8 |
| 0.1 | 104 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 10.0 | 6.5 | 10.0 | 0.6 | 18.0 | 12.5 | 7.0 | 15.0 | 0.8 | 18.5 | 14.5 | 10.0 | 15.0 | 0.8 |
| 0.15 | 154 | 13.0 | 9.0 | 5.5 | 10.0 | 0.6 | 18.5 | 11.0 | 6.0 | 15.0 | 0.6 | 18.5 | 13.5 | 8.0 | 15.0 | 0.8 | 23.0 | 15.0 | 9.5 | 20.0 | 0.8 |
| 0.22 | 224 | 13.0 | 10.0 | 6.5 | 10.0 | 0.6 | 18.5 | 11.5 | 6.5 | 15.0 | 0.6 | 22.5 | 14.5 | 8.0 | 20.0 | 0.8 | 23.0 | 15.5 | 10.0 | 20.0 | 0.8 |
| 0.33 | 334 | 13.0 | 11.5 | 8.0 | 10.0 | 0.6 | 18.5 | 12.0 | 7.0 | 15.0 | 0.8 | 22.5 | 15.0 | 9.0 | 20.0 | 0.8 | 32.0 | 19.0 | 12.0 | 27.5 | 0.8 |
| 0.47 | 474 | 18.5 | 11.0 | 6.0 | 15.0 | 0.6 | 22.5 | 12.5 | 7.5 | 20.0 | 0.8 | 22.5 | 18.5 | 11.5 | 20.0 | 0.8 | 32.0 | 22.0 | 13.5 | 27.5 | 0.8 |
| 0.68 | 684 | 18.5 | 12.5 | 7.5 | 15.0 | 0.6 | 22.5 | 13.5 | 8.5 | 20.0 | 0.8 | 32.0 | 19.0 | 12.0 | 27.5 | 0.8 | 36.0 | 22.5 | 14.5 | 32.5 | 0.8 |
| 1 | 105 | 18.5 | 13.5 | 8.5 | 15.0 | 0.8 | 22.5 | 15.0 | 10.0 | 20.0 | 0.8 | 32.0 | 21.5 | 13.5 | 27.5 | 0.8 | 36.0 | 29.0 | 16.0 | 32.5 | 0.8 |
| 1.5 | 155 | 22.5 | 14.5 | 8.0 | 20.0 | 0.8 | 32.0 | 17.5 | 9.5 | 27.5 | 0.8 | 36.0 | 23.5 | 14.0 | 32.5 | 0.8 | 42.0 | 29.5 | 18.5 | 37.5 | 1.0 |
| 2.2 | 225 | 22.5 | 16.5 | 10.0 | 20.0 | 0.8 | 32.0 | 19.0 | 10.5 | 27.5 | 0.8 | 36.0 | 27.5 | 18.5 | 32.5 | 0.8 | 46.0 | 32.5 | 20.5 | 42.5 | 1.0 |
| 3.3 | 335 | 22.5 | 20.0 | 12.0 | 20.0 | 0.8 | 32.0 | 23.0 | 13.5 | 27.5 | 0.8 | 42.0 | 30.5 | 18.5 | 37.5 | 1.0 | |||||
| 4.7 | 475 | 22.5 | 21.5 | 14.0 | 20.0 | 0.8 | 36.0 | 24.0 | 14.0 | 32.5 | 0.8 | 46.0 | 34.0 | 22.0 | 42.5 | 1.0 | |||||
| 6.8 | 685 | 32.0 | 23.5 | 14.5 | 27.5 | 0.8 | 42.0 | 27.0 | 16.0 | 37.5 | 1.0 | ||||||||||
| 10 | 106 | 32.0 | 29.0 | 18.0 | 27.5 | 0.8 | 42.0 | 35.0 | 19.0 | 37.5 | 1.0 |
PERTUNJUKAN
| Barang | berlapis logam Poliester |
| Penyimpangan Kapasitansi | Bersepeda melalui kisaran suhu pengoperasian 2% |
| Tes Kelembaban | Will withstand the test of R.H. 95% at 40°Cfor 1000hrs. C < 5% DF < 1.2% DAN > 10000M |
| Uji Beban | Will withstand a testing voltage at 140% dari W.V. for 1000hrs at 85 ° C.. C< 5% DF < 1.2% DAN > 5000M |
| Uji Tarik Timbal | Will withstand a pull of 1.5Kg applied axially for 10 detik |
|
Tes Tikungan Timbal |
Will sustain two cycles without breaking when attaching a load of 0.5Kg to the end of the lead and then rotating the capacitor 90°C from the direction of lead egress. Then 180°C in opposite direction. Then back to the starting point. |
| Kemampuan solder | Dicelupkan ke dalam solder cair 230 + 0.5detik. After testing, kabel luka dan celah pada kabel luka akan ditutup dan diisi dengan solder. Will be difficult to unwind by finger. |
| Kekuatan Dielektrik | Akan bertahan 200% atau 160% of rated voltage at 25°C for 1 minute with current limiting resistance of 1 / V |
PEMATERIAN
Area di bawah kurva adalah waktu penyolderan yang disarankan & suhu. untuk materi yang ditampilkan.
PERKENALAN
Seri CDAC dibuat dengan dielektrik film poliester metalized, lapisan timah tembaga dan resin epoksi. Mereka cocok untuk memblokir, kopel, decoupling, penyaringan, sirkuit pewaktuan bypass dan ideal untuk digunakan dalam data / peralatan telekomunikasi, instrumen industri, sistem kontrol otomatis dan aplikasi elektronik umum lainnya.
