Lead aksial kapasitor film polypropylene logam | Oval datar | CDB
‧ Terutama digunakan dalam instrumen dan DC & AC circuit of the household equipment and acoustics system.
FITUR
‧ CDEB is constructed with metallized polypropylene film as medium and electrode, dibungkus dan disegel dengan plastik tahan api dan resin epoksi, dengan keandalan yang tinggi, tahan suhu tinggi, volume kecil, kapasitas besar dan properti penyembuhan diri yang baik.
‧ Terutama digunakan dalam instrumen dan DC & AC circuit of the household equipment and the fractional frequency circuit of acoustics system.
Spesifikasi

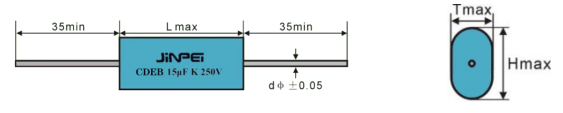

| TOPI | L | T | H | D | L | T | H | D | L | T | H | D | L | T | H | D | L | T | H | D |
| 223 | 0.022 — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 16.0 | 7.5 | 10.5 | 0.6 |
| 333 | 0.033 — | — | — | — | — | — | — | — | — | — | — | — | 16.0 | 7.0 | 10 | 0.6 | 21.0 | 6.5 | 9.5 | 0.6 |
| 473 | 0.047 — | — | — | — | — | — | — | — | — | — | — | — | 16.0 | 8.5 | 12 | 0.8 | 21.0 | 7.5 | 12 | 0.6 |
| 683 | 0.068 — | — | — | — | — | — | — | — | — | — | — | — | 21.0 | 7.0 | 11.5 | 0.6 | 26 | 7.0 | 13 | 0.6 |
| 104 | 0.1 16.0 | 6.0 | 9.0 | 0.6 | 21.0 | 7.0 | 10.5 | 0.6 | 26.0 | 6.5 | 13 | 0.6 | 26 | 7.0 | 11.5 | 0.6 | 26 | 8.5 | 14.5 | 0.8 |
| 224 | 0.22 21.0 | 5.0 | 9.0 | 0.6 | 16.0 | 6.5 | 10.5 | 0.6 | 16.0 | 12.0 | 16 | 0.8 | 26 | 10.0 | 16 | 0.8 | 32 | 10.5 | 18 | 0.8 |
| 334 | 0.33 16.0 | 7.0 | 10.5 | 0.6 | 16.0 | 9.0 | 13.0 | 0.6 | 21.0 | 10.5 | 15 | 0.8 | 32 | 10.0 | 17.5 | 0.8 | 37.5 | 11.5 | 20 | 0.8 |
| 474 | 0.47 16.0 | 8.5 | 12.5 | 0.8 | 21.0 | 9.0 | 14.0 | 0.6 | 21.0 | 13.0 | 17 | 0.8 | 37.5 | 10.5 | 19.5 | 0.8 | 47.5 | 10.5 | 21 | 0.8 |
| 684 | 0.68 21.0 | 6.8 | 12.0 | 0.6 | 21.0 | 10.0 | 14.0 | 0.8 | 26 | 12.0 | 18 | 0.8 | 47.5 | 10.0 | 20.5 | 0.8 | 57.5 | 11.5 | 23.5 | 0.8 |
| 105 | 1.0 21.0 | 8.5 | 13.5 | 0.8 | 26 | 9.0 | 13.0 | 0.8 | 26 | 15.0 | 20.5 | 1.0 | 57.5 | 10.5 | 23 | 0.8 | 67.5 | 12.5 | 25 | 1.0 |
| 225 | 2.2 31 | 11.0 | 17.5 | 0.8 | 32 | 11.5 | 16.0 | 0.8 | 32 | 18.5 | 26.5 | 1.0 | 67.5 | 15.5 | 27.5 | 1.0 | 67.5 | 20.0 | 32.5 | 1.0 |
| 335 | 3.3 32 | 11.5 | 17.5 | 0.8 | 32 | 13.5 | 19.5 | 0.8 | 32 | 23.0 | 32.5 | 1.0 | 67.5 | 19.5 | 31.5 | 1.0 | 67.5 | 20.0 | 32.5 | 1.0 |
| 475 | 4.7 31 | 16.5 | 22.5 | 1.0 | 37.5 | 15.0 | 22.0 | 1.0 | 37.5 | 24.0 | 35 | 1.0 | 67.5 | 24.0 | 36.5 | 1.0 | — | — | — | — |
| 565 | 5.6 37.5 | 13.0 | 20.5 | 1.0 | 47.5 | 14.5 | 21.0 | 0.8 | 47.5 | 21.0 | 34 | 1.0 | — | — | — | — | — | — | — | — |
| 685 | 6.8 47.5 | 11.0 | 20.5 | 0.8 | 47.5 | 15.0 | 23.0 | 1.0 | 57.5 | 20.5 | 33.5 | 1.0 | — | — | — | — | — | — | — | — |
| 825 | 8.2 47.5 | 12.5 | 22.0 | 1.0 | 57.5 | 14.0 | 22.0 | 1.0 | 57.5 | 23.0 | 35.5 | 1.0 | — | — | — | — | — | — | — | — |
| 106 | 10.0 47.5 | 15.0 | 23.5 | 1.0 | 57.5 | 14.5 | 24.5 | 1.0 | 67.5 | 23.0 | 35.5 | 1.0 | — | — | — | — | — | — | — | — |
| 156 | 15.0 57.5 | 14.5 | 26.0 | 1.0 | 67.5 | 16.0 | 27.0 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — |
| 226 | 22.0 57.5 | 18.5 | 29.5 | 1.0 | 67.5 | 19.0 | 32.5 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — |
| 306 | 30.0 67.5 | 19.0 | 32.0 | 1.0 | 67.5 | 23.5 | 36.0 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — |
| 336 | 33.0 67.5 | 20.0 | 33.5 | 1.0 | 67.5 | 24.5 | 37.5 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — |
| 476 | 47.0 67.5 | 26.0 | 38.0 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
Catatan: Spesifikasi dapat berubah tanpa pemberitahuan. Untuk lebih detail dan update, silakan kunjungi situs web kami.

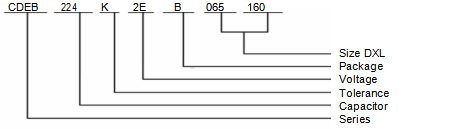

BAGIAN NOMOR CONTOH
PERKENALAN
◆ CDEB is constructed with metallized polypropylene film asmedium and electrode, wrapped andsealed with flame-resistance plastic and epoxy resin, dengan keandalan yang tinggi, tahan suhu tinggi, volume kecil, large capacityand good self-healing property.
◆ Mainlyused in instruments and the DC &AC circuit of the household equipment and acoustics system.
