מוביל צירי רב שכבתי קרמיקה | CCCA
תכונות
◆ Conformal coated, miniature sizes, 0.3pF – 2.2uF
◆ Wide range of capacitance, tolerance, TC, and voltage
◆ C0G (NP0), X7R, Z5U and Y5V temperature coefficients
◆ Popular values available from stock
מפרט
| ג'ינפי
סוּג |
WVDC1 |
טווח קיבולת |
ל (Body Length, מקס) |
ד (Body Diameter, מקס) |
ד (Lead Dia) |
||
| C0G (מל"ג) | X7R | Z5U/Y5V 2 | |||||
|
CCCA05 |
25
50 100 |
0.3 – 1000pF
0.3 – 1000pF 0.5 – 820pF |
100pF – 0.15uF
100pF- 0.10uF 100pF- 0.01uF |
1000pF – 1.0uF
1000pF – 0.47uF 1000pF- 0.068uF |
0.150
[3.8] |
.100
[2.54] |
018 ±.003
[0.45 ±.08] |
|
CCCA10 |
25
50 100 |
0.5 – 2700pF
0.5 – 2200pF 0.5 – 1000pF |
100pF – 0.22uF
100pF- 0.10uF 100pF- 0.033uF |
1000pF – 1.2uF
1000pF – 1.0uF 1000pF- 0.10uF |
0.170
[4.32] |
.100
[2.54] |
.018 ±.003
[0.45 ±.08] |
|
CCCA12 |
25
50 100 |
0.5 – 5600pF
0.5 – 4700pF 0.5 – 3300pF |
100pF – 1.0uF
100pF- 0.47uF 100pF- 0.10uF |
1000pF – 2.2uF
1000pF – 1.0uF 1000pF- 0.10uF |
0.200
[5.1] |
.118
[3.0] |
.018 ± .003
[0.45 ± .08] |
DIELECTRIC CHARACTERISTICS (typical)
| ITEM | COG (מל"ג) | X7R | Y5V (Z5U) 2 |
| כּוֹבַע. לָנוּעַ, E12 values | 0.3 pF- 5,600 pF | 100 pF – 1uF | 1,000 pF – 2.2uF |
| סובלנות קיבולת | <10pF: ±.1pF, .25pF, .5pF (std)
10pF: ±1%, ±2%, ± 5%(std),± 10% |
± 5%, ± 10% (std),
±20% |
±20% (std), +80/- 20% |
| טווח טמפרטורות הפעלה | -55°C to +125°C | -55°C to +125°C | -30מעלות צלזיוס עד +85 מעלות צלזיוס |
| מאפייני טמפרטורה | 0 ± 30ppm/°C 3 | ±15% max over op.temp range | +22%/-82%(+22%/-56%)
max over operating temp range |
| Aging (cap loss/decade hr) | negligible | 2% | 7% |
| Voltage Coef ( C@ max V) | negligible | -50% to+10% typ | -80% to+20% typ |
| גורם פיזור (1Khz) | 0.15% (+25° C. & +125° C.)
1.0VRMS, 1MHz for values<1000pF |
2.5% Max., 1VRMS | 4.0% מקס. 0.5 VRMS |
| Insulation Resistance 25°C
(MIL-STD-202-METHOD-302) |
100G or 1000M -uF
whichever is less |
100G or 1000M -uF
whichever is less |
10G or 1000M -uF
whichever is less |
| Dielectric Strength | 2.5x rated VDC | 2.5x rated VDC | 2.5x rated VDC |
| מבחן חיים (1000 hours) | 2x rated voltage @+125°C
ג<3% or 0.25pF wig |
2x rated voltage at +125°C
ג<20% |
1.5x rated voltage at +85°C
ג<30% |

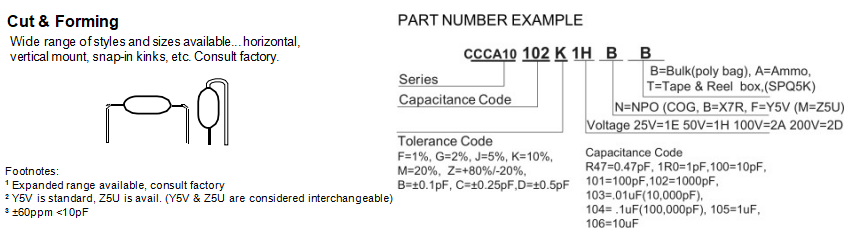

מָבוֹא
High-density multi-layer construction enabling an expanded
range of values. Bodies are insulated with a proprietary
flame retardant epoxy coating for superior environmental
protection and dielectric strength. ערכים לא סטנדרטיים,
דירוג מתח מוגבר, סימון מותאם אישית, הקרנה צבאית,
גְזִירָה & נוצר לידים, וכו', זמינים. Matched sets and
networks also available.
