CBDA Series half-sealed tubular wet tantalum electrolytic capacitors
With polar axial leads are characterized in small size, low DC Leakage, stable and excellent performances, high reliability and long life. CBDA
Series meets the requirements of Chinese Electronic industry standard SJ/T10030-91,
widely used in electronic equipment for military and civil applications such as telecommunication, ruimtevaart en luchtvaart.
Algemene kenmerken
Bedrijfstemperatuurbereik: -55X3 ~+125<0(>85<0 with rated voltage derating)
Capaciteitsbereik: 1 uF~3300uF
Capaciteitstolerantie: ±20%, ±10%
Spanning: 6.3V~125V
DC Leakage: bij +20CC, 10^0.001 CRVR of 1 卩 A(Whichever is greater);
at +85P and +125P, I0W0.0080 CRVRof 8 卩 A(Whichever is greater)

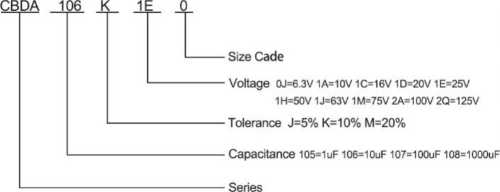

VOORBEELD ONDERDEELNUMMER

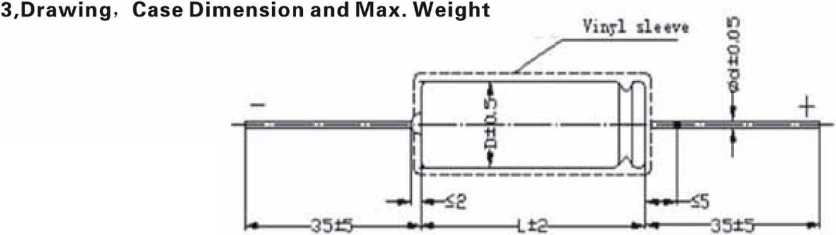

| Code | Max. gewicht(G) | D±0.5 ( mm ) | L±2 ( mm ) |
| 0 | 3 | 5 | 10 |
| 1 | 4 | 5 | 14 |
| 2 | 5 | 6 | 16 |
| 3 | 7 | 8 | 16 |
| 4 | 10 | 8 | 22 |
| 5 | 14 | 10 | 22 |
| 6 | 17 | 10 | 25 |
| 7 | 20 | 10 | 30 |
| 8 | 23 | 10 | 33 |
Nominale capaciteit, Nominale spanning. Voltage Derating,Case size and General Characteristics
| Nominale spanning | Voltage Derating | Case size | Capaciteit (mF) | DF(%)Max 25C85C125幻 | lmpedance( Q) -55P 100HZ |
| 6.3 | 4 | 0 | 1.0 | 6 | 1800 |
| 0 | 1.5 | 6 | 1400 | ||
| 0 | 2.2 | 6 | 1100 | ||
| 0 | 3.3 | 6 | 700 | ||
| 0 | 4.7 | 6 | 500 | ||
| 0 | 6.8 | 8 | 350 | ||
| 0 | 10 | 8 | 260 | ||
| 0 | 15 | 10 | 200 | ||
| 0 | 22 | 10 | 180 |
Functies
CBDA Series half-sealed tubular wet tantalum electrolytic capacitors
With polar axial leads are characterized in small size,
low DC Leakage, stable and excellent performances, high reliability and long life.
CBDA Series meets the requirements of Chinese Electronic industry standard SJ/T10030-91, widely used in electronic equipment for military and civil applications such as telecommunication, ruimtevaart en luchtvaart.
RoHS-compatibel
