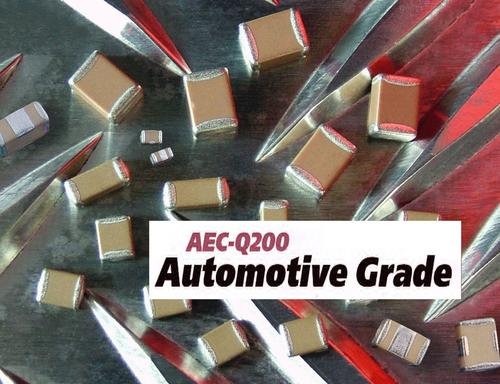

AEC-Q200 maatregel betingst foar capacitors
Noat: De miljeutestbetingsten fan 'e AEC-Q200 binne benammen basearre op de spesifikaasjes MIL-STD-202 en JEDEC22A-104. De testtemperatueren fan ferskate dielen binne net allinich itselde, mar ek de stroomfoarsjenning (spanning, aktueel, en lade) easken. It sil oars, hege temperatuer opslach wurdt net tapast bias en load, mar yn 'e hege temperatuer wurksumheden nedich, temperatuer syklus en temperatuer ynfloed, it testdoel en metoade is net itselde, yn 'e temperatuersyklus, hege temperatuer feroarings moatte kontrolearje de temperatuer feroaring taryf, Temperatuer shock wurdt net brûkt, hege luchtvochtigheid wurdt algemien bekend as hege temperatuer en vochtigheid test, en vochtigheid ferset is wiet freeze test.
Test Condition Precautions: De 1000h testproseduere moat wurde útfierd mei yntervallen fan 250h en 500h foar opslach op hege temperatuer (MIL-STD-202-108): [tapassing apparatuer: THS] film capacitor, netwurk low-pass filter, netwurk ferset, waarmte Sensitive Resistor, Fariabele Capacitor, Fariabele Resistor, Keramyske resonator, EMI ynterferinsje ûnderdrukker, EMI ynterferinsjefilter: 85°C/1000h Inductor, Transformer, Wjerstân: 125°C/1000h Varistor: 150° C / 1000h Tantalum Capacitor, Keramyske capacitor , Aluminium Electrolytyske kapasiteit: Maksimum rated temperatuer / 1000h
Hege temperatuer Service Life (MIL-STD-202-108): [Tapasbere apparaten: THS] Netwurk Low-Pass Filter, Netwurk ferset: 85° C / 1000h EMI Interference Suppressor, EMI ynterferinsjefilter: 85° C / 1000h / Applied Rated IL tantaal capacitors, keramyske capacitors: Maksimum rated temperatuer / 1000h / (2/3) lade / rated spanning Elektrolytyske kondensatoren fan aluminium, inductors, transformators: 105 °C / 1000h Filmkapasiteit: 1000h / (85 °C / 125% rated spanning, 105 °C & 125 °C / 100% rated spanning) Resetable fuse: 125 °C / 1000h Ferset, termistor, fariabele capacitance: 125 °C / 1000h / rated voltage Fariabele ferset: 125 °C / 1000h / rated macht rheostat: 125 °C / 1000h / rated spanning 85% + ma strom keramyske resonator: 85°C/1000h/rated VDD+1MΩ, parallel inverter, 2X crystal CL capacitance tusken elk crystal skonk en grûn Quartz oscillator: 125°C / 1000h / rated VDD+1MΩ, parallel inverter, 2X crystal CL capacitor tusken elke crystal pin en grûn
Temperatuer cycling (JEDEC22A-104): [jildende apparaten: TSR, ESS] Film capacitance, fariabele capacitance, variable resistance, ceramic resonator, EMI interference suppressor, EMI interference filter: -55°C (30min) ←→85 °C(30min)/RAMP(15°C/min)/1000cycles Tantalum capacitor, Keramyske capacitor, Wjerstân, Thermistor: -55°C(30min)←→125°C(30min)/RAMP(15°C/min)/1000cycles Aluminium Electrolytic Capacitor:-40°C(30min)←→105°C(30min)/RAMP(15°C/min)/1000cycles Inductor, Transformer, Rheostat, Quartz Oscillator, Resettable Fuse:-40°C(30min)←→125°C (30min)/RAMP
(15°C/min)/1000syklus Netwurk Low-Pass Filter, Netwurk ferset: -55°C(30min)←→125°C(30min)/RAMP(15°C/min)/1000cycles
Temperatuer Shock (MIL-STD-202-107): [tapassing apparatuer: TC, TSK] Self-healing fuse: -40°C(15min)←←→125°Cmin)/300cycles hege vochtigheid (MIL-STD-202- 103): [tapast apparatuer: THS] Tantalum Capacitors, Keramyske capacitors: 85°C / 85% RH / 1000h / Voltage 1.3 oan 1,5V Inductors & Transformers: 85°C/85%RH/1000h/ Net-energizearre aluminium elektrolytyske kondensators: 85°C /85% RH / 100EMI ynterferinsje suppressor
