SMD有机导电聚合物电解电容器▏125℃CAYD
特征
•125°C,2,000 保证时间.
•超低ESR
•RoHS合规性
•125°C,2,000 保证时间.
•超低ESR
•RoHS合规性
方面 & 允许的连锁电流
| W.V.(v) | 电容
(µF) |
尺寸
直径xL (毫米) |
棕褐色
(120赫兹,20 |
c) |
L.C..
(微安) |
(垫 |
电子.
100k~300k |
r.
赫兹, |
20°C |
最大限度) |
额定RC.
(100KHz 时毫安/有效值,125°C) |
||
| 680 | 8 | x | 12 | 0.18 | 340 | 13 | 1,430 | ||||||
| 2.5v(0e) | 1000 | 10 | x | 10 | 0.18 | 500 | 13 | 1,645 | |||||
| 1500 | 10 | x | 13 | 0.18 | 750 | 13 | 1,721 | ||||||
| 560 | 8 | x | 12 | 0.18 | 448 | 13 | 1,430 | ||||||
| 4v(0g) | 820 | 10 | x | 10 | 0.18 | 656 | 13 | 1,645 | |||||
| 1200 | 10 | x | 13 | 0.18 | 960 | 12 | 1,721 | ||||||
| 470 | 8 | x | 12 | 0.15 | 592 | 15 | 1,332 | ||||||
| 6.3v(0j) | 560 | 10 | x | 10 | 0.15 | 706 | 16 | 1,487 | |||||
| 820 | 10 | x | 13 | 0.15 | 1,033 | 12 | 1,721 | ||||||
| 330 | 8 | x | 12 | 0.15 | 660 | 17 | 1,250 | ||||||
| 10v(1一个) | 470 | 10 | x | 10 | 0.15 | 940 | 18 | 1,392 | |||||
| 560 | 10 | x | 13 | 0.15 | 1,360 | 13 | 1,655 | ||||||
| 180 | 8 | x | 12 | 0.15 | 576 | 20 | 1,151 | ||||||
| 16v(1c) | 220 | 10 | x | 10 | 0.15 | 704 | 20 | 1,400 | |||||
| 330 | 10 | x | 13 | 0.15 | 1,056 | 16 | 1,493 | ||||||

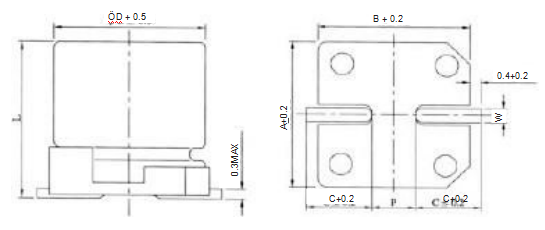

垫间距和直径
| d | l | 一个 | b | c | w | P+0.2 |
| 8 | 11.8 + 0.5 | 8.4 | 8.4 | 3.0 | 0.7 到 1.1 | 3.1 |
| 10 | 10.0 + 0.5 | 10.4 | 10.4 | 3.3 | 0.7 到 1.1 | 4.7 |
| 10 | 12.7 + 0.5 | 10.4 | 10.4 | 3.3 | 0.7 到 1.1 | 4.7 |
特征
◆ 125℃,2,000保证小时.
◆ 超低ESR
◆ROHS合规性
