径向铅多层陶瓷电容器 | CCBA

高密度多层结构可实现卓越的性能和电容范围. Proprietary flame retardant epoxy coating ensures optimum environmental protection and dielectric strength. 非标准值, 在- creased voltage ratings, 定制标记, 军事筛选, 切 & 成型引线, ETC。, 可用. 还提供匹配的套件和网络.
Datasheet-For-Radial-Leads-Multilayer-Ceramic-Capacitor-CCBA.pdf (下载2807 )

特征

◆ Industry’s widest range- 0.47pF to 10uF, tolerances to 1%
◆ Space-saving radial leaddesign
◆ COG (非营利组织), X7R, Z5U和Y5V温度系数
◆Tape and reel packaging available
◆ Standard industry sizes
◆ High voltage models available
◆ Cut and formed leads available

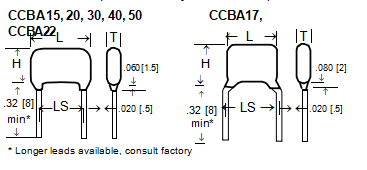

方面

Jinpei Type L Max. H Max. T Max. LS ±.024 [0.6]
CCBA15 .165 [4.2] .150 [3.81] .150 [3.81] .100 [2.5]
CCBA17 .150 [3.81] .150 [3.81] .150 [3.81] .200 [5.0]
CCBA20 .200 [5.08] .200 [5.08] .150 [3.81] .100 [2.5]
CCBA22 .200 [5.08] .200 [5.08] .150 [3.81] .200 [5.0]
CCBA30 .300 [7.62] .217 [5.5] .150 [3.80] .200 [5.0]
CCBA40 .413 [10.5] .394 [10] .165 [4.2] .217 [5.5]
* CCBA50 .492 [12.5] .433 [11] .165 [4.2] .295 [7.5]



BODY STYLE (additional styles available)

DIELECTRIC CHARACTERISTICS (典型的)

物品 (NPO N) X7R B Y5V F (Z5U M) 2
帽. 范围, E12值 0.47 PF- 0.1UF 330 PF – 1UF 1,000 pF -10uF
电容耐受性 <10PF: ±.1pF, .25PF, .5PF (标准)

³10pF: ±1%, ±2%, ±5％(标准), ±10％

 ±5％, ±10％ (标准),

±20％

 ±20％ (标准), +80/- 20%
工作温度范围 -55°C 至 +125°C -55°C 至 +125°C -30°C 至 +85°C
温度特征 0 ±30ppm/℃ 3 工作温度范围内最大 ±15% +22%/-82% (+22%/-56%)

最大工作温度范围
老化 (上限损失/十年小时) 微不足道 2% 7%
电压系数 (DC@ max V) 微不足道 -50% 至 +10% 典型值 -80% 至 +20% 典型值
耗散因子 (1千赫,25°C) 0.15% (+25°C & +125°C)

1.0电压有效值, 1MHz 值<1000PF

 2.5% 最大限度。, 1电压有效值 4.0% 最大限度. 0.5 电压有效值
绝缘电阻25℃ (MIL-STD-202-方法-302) 100GW or 1000MW-uF whichever is less 100GW or 1000MW-uF whichever is less 10GW or 1000MW-uF whichever is less
介电强度 3x 额定 VDC 3x 额定 VDC 3x 额定 VDC
寿命测试 (1000 小时) 2x 额定电压 @+125°C

DC<3% 或 0.25pF 假发

 2x +125°C 时的额定电压

DC<20%

 1.5x +85°C 时的额定电压

DC<30%



电容范围

Jinpei TYPE 直流直流1 STANDARD CAPACITANCE RANGE 1
(NPO N )

Std. tol. = 5%

 X7R B

Std. tol. = 10%

 Y5V F(Z5U m) 2

Std. tol. = 20%
CCBA15, CCBA17 25

50

100

 0.47 – 3300PF

0.47 – 2200PF

0.47 – 1000PF

 100PF- 0.22UF

100PF- 0.1UF

100PF- 0.047UF

 .01UF – 1.2UF

.01UF – 1uF 1000pF – 0.1UF
CCBA20,

CCBA22

 25

50

100

 0.47 – 6800PF

0.47 – 4700PF

0.47 – 3900PF

 100PF- 1UF

100PF- 0.47UF

100PF- 0.1UF

 .01UF – 1.2UF

.01UF – 1UF

.01UF – 0.33UF

CCBA30

 25 10 – 10,000PF 470PF- 1UF .1UF – 1.5UF
50 10 – 6800PF 470PF – 1UF .1UF – 1.5UF
100 5 – 4700PF 100PF – 0.22UF .1UF – 1.0UF

CCBA40

 25 10 – 47,000PF 1000PF – 1UF .68UF – 4.7UF
50 10 -27,000PF 1000PF – 1UF .68UF – 3.3UF
100 5 -22,000PF 100PF – 0.47UF .68UF – 2.2UF

CCBA50

 25 1000PF – 0.1UF .01UF – 2.2UF 1UF – 10UF
50 1000PF- 0.047UF .01UF – 2.2UF 1UF – 6.8UF
100 1000PF- 0.033UF .01UF – 1UF 1UF – 2.2UF

1 Expanded range available, consult factory

2 Y5V is standard, Z5U is avail. (Y5V & Z5U are considered interchangeable)

3 ±60ppm <10PF

介绍
High-density multilayer construction enables superior
performance and capacitance range. Proprietary flame retardant
epoxy coating ensures optimum environmental protection and
dielectric strength. 非标准值, 在- creased voltage
ratings, 定制标记, 军事筛选, 切 & 成型引线,
ETC。, 可用. 还提供匹配的套件和网络.
