SMD Aluminum Electrolytic Capacitors 105℃ Long Life CAJA
Karatteristiċi
105° C., 3000 sigħat assigurati.
ROHS konformi
105° C., 3000 sigħat assigurati.
ROHS konformi
SPEĊIFIKAZZJONIJIET
| Oġġett | Prestazzjoni | ||||||||||
| Temp operattiv. Firxa | -40°C ~ + 105° C. | ||||||||||
| Tolleranza tal-kapaċitanza | ± 20% (120Hz, 20° C.) | ||||||||||
| Tnixxija Kurrent (f'20•C) | I=0.01CV jew 3µA (liema jkun l-akbar) wara 2 minuti, where C=rated capacitance in µF and V= rated working voltage | ||||||||||
| Fattur ta 'dissipazzjoni
Tanδ at 120 Hz, 20° C. |
Vultaġġ nominali | 6.3 | 10 | 16 | 25 | 35 | 50 | ||||
| Tanδ (max) | 0.30 | 0.26 | 0.20 | 0.16 | 0.13 | 0.12 | |||||
|
Karatteristiċi ta 'Temperatura Baxxa (f'120Hz) |
Vultaġġ nominali | 6.3 | 10 | 16 | 25 | 35 | 50 | ||||
| Proporzjon ta 'impedenza
Massimu |
Z(-25° C.) /Z(+20° C.) | 4 | 3 | 2 | 2 | 2 | 2 | ||||
| Z(-40° C.) /Z(+20° C.) | 10 | 7 | 5 | 3 | 3 | 3 | |||||
|
Test tal-Ħajja |
Ħin tat-Test |
Ħajja Tagħbija Ħajja fuq l-ixkaffa | |||||||||
| 3000 Hrs | 1000 Hrs | ||||||||||
| Bidla fil-Kapaċitanza | Within ±30% of initial value | Fi ħdan ± 20% tal-valur inizjali | |||||||||
| Fattur ta 'dissipazzjoni | Inqas minn 200% ta' valur speċifikat | Inqas minn 200% ta' valur speċifikat | |||||||||
| Tnixxija Kurrent | Fil-valur speċifikat | Fil-valur speċifikat | |||||||||
| Kundizzjonijiet tat-Test | 20° C. (wara l-vultaġġ nominali applikat għalih 3000 sigħat fi
105° C. |
20° C (wara ħażna għal 1000 sigħat f'105°C
mingħajr vultaġġ) |
|||||||||
| Ripple Kurrent & Multipliers tal-Frekwenza | VDC(V) Freq. (Hz) | 50 | 120 | 1K | 10K up | ||||||
| 6.3 ~ 50 | 0.70 | 1.00 | 1.36 | 1.50 | |||||||
| Standards | JIS C 5101-1-18 | ||||||||||
DIMENSJONI & PERMISSIBBLI RIPPLE KURRENTI
Dimensjoni: φD x L (mm)
Ripple Current mA/rms at 120 Hz, 105° C.
| VDC
μf Kontenut |
6.3 (0J) | 10 (1A) | 16 (1Ċ) | 25V (1E) | 35V (1V) | 50V (1H) | |||||||
| φD x L | mA | φD x L | mA | φD x L | mA | φD x L | mA | φD x L | mA | φD x L | mA | ||
| 0.1 | 0R1 | 4 x 5.7 | 1 | ||||||||||
| 0.22 | R22 | 4 x 5.7 | 2.6 | ||||||||||
| 0.33 | R33 | 4 x 5.7 | 3.2 | ||||||||||
| 0.47 | R47 | 4 x 5.7 | 5 | ||||||||||
| 1 | 010 | 4 x 5.7 | 8 | ||||||||||
| 2.2 | 2R2 | 4 x 5.7 | 12 | ||||||||||
| 3.3 | 3R3 | 4 x 5.7 | 17 | ||||||||||
| 4.7 | 4R7 | 4 x 5.7 | 16 | 5 x 5.7 | 22 | ||||||||
| 10 | 100 | 4 x 5.7 | 18 | 5 x 5.7 | 27 | 5 x 5.7 | 27 | 6.3 x 5.7 | 32 | ||||
| 22 | 220 | 4 x 5.7 | 22 | 5 x 5.7 | 30 | 5 x 5.7 | 30 | 6.3 x 5.7 | 44 | 6.3 x 5.7 | 44 | 6.3 x 7.7 | 58 |
| 33 | 330 | 5 x 5.7 | 35 | 5 x 5.7 | 35 | 6.3 x 5.7 | 48 | 6.3 x 5.7 | 50 | 6.3 x 7.7 | 57 | 8 x 10 | 140 |
| 47 | 470 | 5 x 5.7 | 38 | 6.3 x 5.7 | 50 | 6.3 x 5.7 | 50 | 6.3 x 7.7 | 63 | 8 x 10 | 92 | 8 x 10 | 170 |
| 100 | 101 | 6.3 x 5.7 | 69 | 6.3 x 7.7 | 81 | 6.3 x 7.7 | 81 | 8 x 10 | 116 | 10 x 10 | 151 | 10 x 10 | 310 |
| 220 | 221 | 6.3 x 7.7 | 120 | 8 x 10 | 141 | 10 x 10 | 216 | 10 x 10 | 320 | 10 x 10 | 375 | ||
| 330 | 331 | 8 x 10 | 290 | 10 x 10 | 290 | 10 x 10 | 290 | 10 x 10 | 450 | ||||
| 470 | 471 | 10 x 10 | 320 | 10 x 10 | 320 | 10 x 10 | 320 | ||||||
| 1000 | 102 | 10 x 10 | 410 | ||||||||||

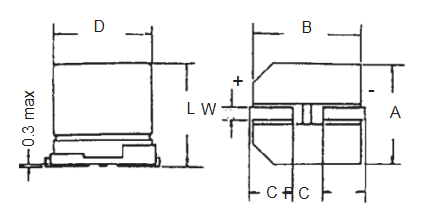

L-ISPAZJU U D-DIAMEtru TAL-KUSCINETTI
| φD±0.5 | L | A±0.2 | B±0.2 | C±0.2 | W | P±0.2 |
| 4 | 5.7±0.3 | 4.3 | 4.3 | 2.0 | 0.5 biex 0.8 | 1.0 |
| 5 | 5.7±0.3 | 5.3 | 5.3 | 2.3 | 0.5 biex 0.8 | 1.5 |
| 6.3 | 5.7±0.3 | 6.6 | 6.6 | 2.7 | 0.5 biex 0.8 | 2.0 |
| 6.3 | 7.7±0.3 | 6.6 | 6.6 | 2.7 | 0.5 biex 0.8 | 2.0 |
| 8 | 10±0.5 | 8.4 | 8.4 | 3.0 | 0.7 biex 1.1 | 3.1 |
| 10 | 10±0.5 | 10.4 | 10.4 | 3.3 | 0.7 biex 1.1 | 4.7 |
Eżempju tan-numru tal-parti
CAJA 100 M 1E TR 050 057
