Kapaċitatur tal-film tal-polipropilen metallizzat | Doppju | CDBB

Karatteristiċi

◆ Reżistenza għolja għall-umdità
◆ Vultaġġ klassifikat : 250~ 2000vdc(180~ 700VAC)
◆ Firxa tal-kapaċitanza : 0.00022 ~ 3.9uf
◆ Reżina epossidika tal-fjamma (Konformi ma 'ul 94V-0)
◆ ROHS konformi u freeterminazzjonijiet taċ-ċomb
◆ Għal applikazzjoni għolja DV / DT

Eżempju tan-numru tal-parti

Karatteristiċi elettriċi

Oġġetti	Prestazzjoni
Firxa ta 'vultaġġ operattiv	250VDC ~ 2,000VDC
Temperatura nominali	-40° C ~ + 105 ° C. (Derates 'il fuq minn 85 ° C fi 1.25% għal ° C.)
Kategorija Klimatika	40 / 105 / 56
Firxa tal-kapaċitanza	0.00022 β ~ 3.9mf
Tolleranza tal-kapaċitanza	± 5% (J), ± 10% (K), Tolleranzi oħra fuq talba
Fattur ta 'dissipazzjoni (Tan Få		Ċ ≤0.1µf	0.1µf < Ċ ≤ 1.0µf	Ċ > 1.0µf
	1Khz, 20° C.	0.0003	0.0003	0.0003
	1Khz, 20° C.	0.0004	0.0006	—
	100Khz, 20° C.	0.0015	—	—
Reżistenza għall-insulazzjoni		Imkejjel f'20 ° C., 100VDC għal 1 minuta
	Valur minimu bejn it-terminali Cr ≤ 0.33 µf U ≥ 100,000 Mω Cr > 0.33 µf U ≥ 30,000 Lili • µf Valur minimu bejn it-terminali u l-każ U ≥ 30,000 Mω

Klassifikazzjonijiet & Dimensjonijiet (mm)

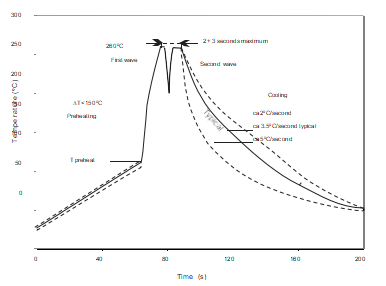

Rakkomandazzjonijiet tal-issaldjar tal-mewġ

(μf)	Xogħol g Vultaġġ	250VDC (2E)						400VDC (2G)						630VDC (2J)
		180Vac						250Vac						400Vac
	Kodiċi	W	H	T	P	imut	DV / DT	W	H	T	P	imut	DV / DT	W	H	T	P	imut	DV / DT
0.01	103													13.0	11.0	5.0	10.0	0.6	3,000
0.012	123													13.0	11.0	5.0	10.0	0.6	3,000
0.015	153													13.0	12.0	6.0	10.0	0.6	3,000
0.018	183													18.0	11.0	5.0	15.0	0.8	2,500
0.022	223													18.0	11.0	5.0	15.0	0.8	2,500
0.027	273							13.0	11.0	5.0	10.0	0.6	1,400	18.0	11.0	5.0	15.0	0.8	2,500
0.033	333							13.0	11.0	5.0	10.0	0.6	1,400	18.0	12.0	6.0	15.0	0.8	2,500
0.039	393							13.0	12.0	6.0	10.0	0.6	1,400	18.0	12.0	6.0	15.0	0.8	2,500
0.047	473	13.0	11.0	5.0	10.0	0.6	1,000	18.0	11.0	5.0	15.0	0.8	1,000	18.0	12.0	6.0	15.0	0.8	2,500
0.056	563	13.0	11.0	5.0	10.0	0.6	1,000	18.0	11.0	5.0	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.068	683	13.0	12.0	6.0	10.0	0.6	1,000	18.0	12.0	6.0	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.082	823	18.0	11.0	5.0	15.0	0.8	600	18.0	12.0	6.0	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.1	104	18.0	11.0	5.0	15.0	0.8	600	18.0	13.5	7.5	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.12	124	18.0	12.0	6.0	15.0	0.8	600	18.0	13.5	7.5	15.0	0.8	1,000	26.5	16.0	7.0	22.5	0.8	1,800
0.15	154	18.0	12.0	6.0	15.0	0.8	600	26.5	15.0	6.0	22.5	0.8	600	26.5	17.0	8.5	22.5	0.8	1,800
0.18	184	18.0	13.5	7.5	15.0	0.8	600	26.5	15.0	6.0	22.5	0.8	600	32.0	18.0	9.0	27.5	0.8	1,100
0.22	224	18.0	13.5	7.5	15.0	0.8	600	26.5	16.0	7.0	22.5	0.8	600	32.0	18.0	9.0	27.5	0.8	1,100
0.27	274	18.0	14.5	8.5	15.0	0.8	600	26.5	17.0	8.5	22.5	0.8	600	32.0	18.0	9.0	27.5	0.8	1,100
0.33	334	18.0	16.0	10.0	15.0	0.8	600	26.5	17.0	8.5	22.5	0.8	600	32.0	20.0	11.0	27.5	0.8	1,100
0.39	394	26.5	16.0	7.0	22.5	0.8	400	26.5	18.5	10.0	22.5	0.8	600	32.0	20.0	11.0	27.5	0.8	1,100
0.47	474	26.5	16.0	7.0	22.5	0.8	400	32.0	18.0	9.0	27.5	0.8	500	32.0	22.0	13.0	27.5	0.8	1,100
0.56	564	26.5	17.0	8.5	22.5	0.8	400	32.0	20.0	11.0	27.5	0.8	500	32.0	22.0	13.0	27.5	0.8	1,100
0.68	684	26.5	18.5	10.0	22.5	0.8	400	32.0	20.0	11.0	27.5	0.8	500	32.0	24.5	15.0	27.5	0.8	1,100
0.82	824	26.5	18.5	10.0	22.5	0.8	400	32.0	22.0	13.0	27.5	0.8	500	32.0	28.0	14.0	27.5	0.8	1,100
1	105	32.0	20.0	11.0	27.5	0.8	300	32.0	24.5	15.0	27.5	0.8	500	32.0	33.0	18.0	27.5	0.8	1,100
1.2	125	32.0	20.0	11.0	27.5	0.8	300	32.0	24.5	15.0	27.5	0.8	500	32.0	33.0	18.0	27.5	0.8	1,100
1.5	155	32.0	22.0	13.0	27.5	0.8	300	32.0	33.0	18.0	27.5	0.8	500	Kompli ……
1.8	185	32.0	24.5	15.0	27.5	0.8	300	32.0	33.0	18.0	27.5	0.8	500
2.2	225	32.0	24.5	15.0	27.5	0.8	300
2.7	275	32.0	33.0	18.0	27.5	0.8	300
3.3	335	32.0	33.0	18.0	27.5	0.8	300
3.9	395	32.0	33.0	18.0	27.5	0.8	300

Klassifikazzjonijiet & Dimensjonijiet (mm)

( F)	Xogħol g Vultaġġ	1000VDC(3A)						1600VDC (3Ċ)						2000VDC (3D)
		600Vac						650Vac						700Vac
	Kodiċi	W	H	T	P	imut	DV / DT	W	H	T	P	imut	DV / DT	W	H	T	P	imut	DV / DT
0.00022	221													18.0	11.0	5.0	15.0	0.8	10,000
0.00027	271													18.0	11.0	5.0	15.0	0.8	10,000
0.00033	331													18.0	11.0	5.0	15.0	0.8	10,000
0.00047	471													18.0	11.0	5.0	15.0	0.8	10,000
0.00056	561													18.0	11.0	5.0	15.0	0.8	10,000
0.00068	681							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.00082	821							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.001	102							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0012	122							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0015	152							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0018	182							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0022	222							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0027	272							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0033	332							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0039	392	13.0	11.0	5.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0047	472	13.0	11.0	5.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0056	562	13.0	12.0	6.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	13.5	7.5	15.0	0.8	10,000
0.0068	682	13.0	12.0	6.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	13.5	7.5	15.0	0.8	10,000
0.0082	822	18.0	11.0	5.0	15.0	0.8	3,300	18.0	12.0	6.0	15.0	0.8	6,000	26.5	15.0	6.0	22.5	0.8	5,000
0.01	103	18.0	11.0	5.0	15.0	0.8	3,300	18.0	12.0	6.0	15.0	0.8	6,000	26.5	15.0	6.0	22.5	0.8	5,000
0.012	123	18.0	11.0	5.0	15.0	0.8	3,300	18.0	13.5	7.5	15.0	0.8	6,000	26.5	15.0	6.0	22.5	0.8	5,000
0.015	153	18.0	11.0	5.0	15.0	0.8	3,300	18.0	13.5	7.5	15.0	0.8	6,000	26.5	16.0	7.0	22.5	0.8	5,000
0.018	183	18.0	13.5	7.5	15.0	0.8	3,300	18.0	14.5	8.5	15.0	0.8	6,000	26.5	16.0	7.0	22.5	0.8	5,000
0.022	223	18.0	13.5	7.5	15.0	0.8	3,300	18.0	14.5	8.5	15.0	0.8	6,000	26.5	17.0	8.5	22.5	0.8	5,000
0.027	273	18.0	14.5	8.5	15.0	0.8	3,300	26.5	15.0	6.0	22.5	0.8	3,000	26.5	18.5	10.0	22.5	0.8	5,000
0.033	333	26.5	15.0	6.0	22.5	0.8	2,100	26.5	16.0	7.0	22.5	0.8	3,000	26.5	18.5	10.0	22.5	0.8	5,000
0.039	393	26.5	15.0	6.0	22.5	0.8	2,100	26.5	17.0	8.5	22.5	0.8	3,000	26.5	22.0	12.0	22.5	0.8	5,000
0.047	473	26.5	16.0	7.0	22.5	0.8	2,100	26.5	18.5	10.0	22.5	0.8	3,000	32.0	20.0	11.0	27.5	0.8	2,200
0.056	563	26.5	16.0	7.0	22.5	0.8	2,100	26.5	18.5	10.0	22.5	0.8	3,000	32.0	22.0	13.0	27.5	0.8	2,200
0.068	683	26.5	17.0	8.5	22.5	0.8	2,100	26.5	22.0	12.0	22.5	0.8	3,000	32.0	22.0	13.0	27.5	0.8	2,200
0.082	823	26.5	18.5	10.0	22.5	0.8	2,100	32.0	20.0	11.0	27.5	0.8	2,000	32.0	24.5	15.0	27.5	0.8	2,200
0.1	104	26.5	18.5	10.0	22.5	0.8	2,100	32.0	20.0	11.0	27.5	0.8	2,000	32.0	28.0	14.0	27.5	0.8	2,200
0.12	124	32.0	20.0	11.0	27.5	0.8	1,300	32.0	22.0	13.0	27.5	0.8	2,000	32.0	33.0	18.0	27.5	0.8	2,200
0.15	154	32.0	20.0	11.0	27.5	0.8	1,300	32.0	24.5	15.0	27.5	0.8	2,000	32.0	33.0	18.0	27.5	0.8	2,200
0.18	184	32.0	22.0	13.0	27.5	0.8	1,300	32.0	24.5	15.0	27.5	0.8	2,000
0.22	224	32.0	22.0	13.0	27.5	0.8	1,300	32.0	33.0	18.0	27.5	0.8	2,000
0.27	274	32.0	24.5	15.0	27.5	0.8	1,300	32.0	33.0	18.0	27.5	0.8	2,000
0.33	334	32.0	28.0	14.0	27.5	0.8	1,300	32.0	33.0	18.0	27.5	0.8	2,000
0.39	394	32.0	33.0	18.0	27.5	0.8	1,300
0.47	474	32.0	33.0	18.0	27.5	0.8	1,300

VRMS vs. Frekwenza, valur tipiku

Dijagramma tal-kodiċi tat-taping radjali

Fig. 4 Kaxxa jew miksija bl-espossidi

F = 10 = Ammo biss

F = 15 Kull spazju ieħor jinqabeż għax

ta 'korp ikbar – Munizzjon biss

(RT3 jew RT4)

Deskrizzjoni	Ittra	Dimensjoni (mm)
		RT4	Tol.
Dijametru tal-wajer taċ-ċomb	d	0.6 / 0.8	± 0.05
Tape Pitch	P	25.4	± 1
Pitch tat-toqba tal-għalf	Wara	12.7	± 0.2
Iċċentrar tal-wajer taċ-ċomb	P1	5.2	± 0.7
Iċċentrar tal-ġisem	P2	12.7	± 1.3
Spazjar taċ-ċomb (Pitch)	F	15	+ 0.6; -0.1
Allinjament tal-Komponenti	ΔH	0	± 2
Għoli ta 'componenet miċ-ċentru tat-tejp	H	18.5	± 0.5
Wisa 'tat-tejp tat-trasportatur	W	18	+ 1; -0.5
Żomm il-wisa 'tat-tejp	Wo	10	Min
Pożizzjoni tat-toqba	W1	9	± 0.5
Żomm il-pożizzjoni tat-tejp	W2	3	Massimu
Dijametru tat-toqba tal-għalf	Tagħmel	4	± 0.2
Ħxuna tat-tejp	t	0.5	± 0.2
Figura	Fig	4

Rimarka: *Allowance ta 'żift akkumulat inqas minn 1mm fis-somma ta' 20 grawnds.

*Komponent vojt kontinwu inqas minn 3 biċċiet konsekuttivi.

*Total vojt fuq rukkell wieħed inqas minn 1%.

Introduzzjoni
Serje CDBB huma mibnija speċifikament għall-korrezzjoni tal-fattur tal-qawwa (PFC) applikazzjonijiet. Il-film intgħażel u l-metallizzazzjoni applikata speċifikament għal applikazzjoni għolja DV / DT
