Capacitor de mica de alta frequência | CGEA
Breve introdução
This capacitor is silver-layer coating,can used at high frequency 1KHz~1MHz and big current 200A.
Temperatura operacional: 0℃~50℃
Umidade relativa： 35%~70%
Suit Equipment: 3kw—-10kw high frequency equipment.;
Function：High frequency resonance.
This capacitor is silver-layer coating,can used at high frequency 1KHz~1MHz and big current 200A.
Temperatura operacional: 0℃~50℃
Umidade relativa： 35%~70%
Suit Equipment: 3kw—-10kw high frequency equipment.;
Function：High frequency resonance.
Breve introdução
◆This capacitor is silver-layer coating, can used at high frequency 1KHz~1MHz and big current 200A.
◆Operating Temperature: 0℃~50℃
◆Relative Humidity： 35%~70%
◆Suit Equipment: 3kw—-10kw high frequency equipment.;
◆Function：High frequency resonance.
Recurso
| Não. | Item | Padrão | Test Method |
| 1 | Freqüência | ≤800KHz | Electrical Bridge |
| 2 | Atual | ≤200A | Ampere Meter |
| 3 | Tensão | ≤1000V | Puncture Tester |
| 4 | Capacitância | 0.01μF~ 0.1μF | Capacitance Meter |
| 5 | Insulate Resistance | >500MΩ | Insulation Tester |
| 6 | Fator de Dissipação | ≤0.5 |

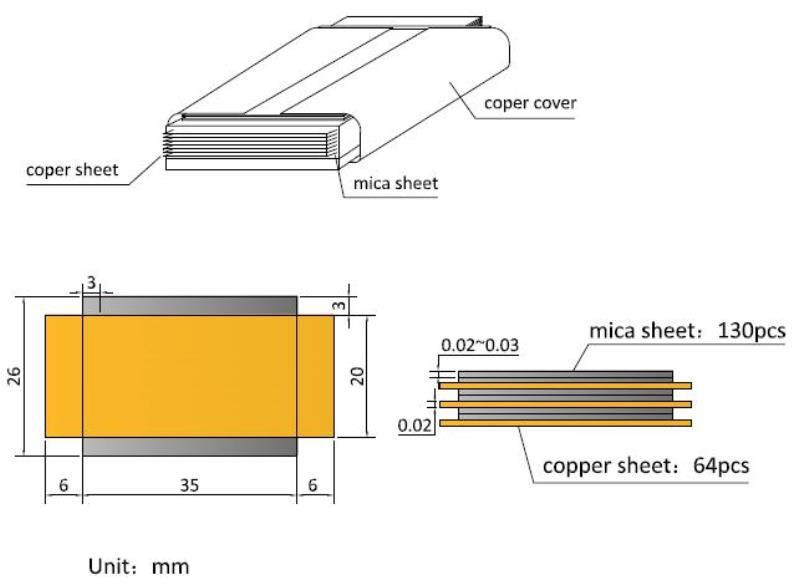

Outline Desenho
Guarantee and Storage
Store temperature 5℃ ~ 25 ℃, put at dry and sealed. Quality guaranteed 12 months after shipping.
Aplicativo
High frequency welding machine,big current welding machine etc.

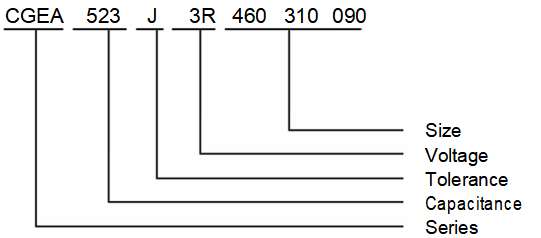

NÚMERO DA PEÇA EXEMPLO
INTRODUÇÃO
◆Store temperature 5℃ ~ 25 ℃, put at dry and sealed. Quality guaranteed 12 months after shipping.
◆High frequency welding machine,big current welding machine etc.
