Genel Porpuse Metalize Polyaster Film Kondansatörü | Cdab
GİRİİŞ
CDAB Series are constructed with metalized polyester film dielectric, bakır kat kurşun ve epoksi reçine tozu kaplama. Engellemeye uygundurlar, kaplin, ayırma, filtreleme, bypass timing circuit and ideal for use in telecommunication equipment, data processing equipment, endüstriyel enstrüman, otomatik kontrol sistemleri ve diğer genel elektronik ekipmanlar.
ÖZELLİKLER
◆Temperature Range: -40~115℃
◆ Kapasitans Aralığı: 0.01~10 uF
◆ Kapasitans Toleransı: 5% 10% 20%
◆ Rated Voltage 100VDC ~ 630VDC
Parça numarası örneği
TOLERANCE
| Kodlamak | Hoşgörü |
| J | + 5% |
| K | + 10% |
| M | + 20% |
CAPACITANCE CODE
| F | 0.01 | 0.047 | 0.1 | 0.47 | 1.0 | 4.7 | 10 |
| pF | 10000 | 47000 | 100000 | 470000 | – | – | – |
| Kodlamak | 103 | 473 | 104 | 474 | 105 | 475 | 106 |
ANMA GERİLİMİ
| WV | 100 | 250 | 400 | 630 |
| Kodlamak | 2A | 2E | 2G | 2J |
KURŞUN TARZI ÖRNEKLERİ
AMBALAJLAMA
| Meth | OD | Toplu | Cephane | Makara |
| Kodlamak | B | A | R | |
BANT KODU (Lead spacing on tape, bantlanmışsa)
| Aralık | 5.0mm | 7.5mm | 10mm | 15mm |
| Ambalaj | A veya R | A veya R | A | A |
| Kodlamak | RT1 | RT2 | RT3 | RT4 |
RADYAL KURŞUN ARALIĞI
* Leadspace, düz lead'li, biçimlendirilmemiş orijinal leadspace'dir
| mm | 5.0 | 7.5 | 10 | 15 | 22.5 | 27.5 |
| Kodlamak | 050 | 075 | 100 | 150 | 225 | 275 |
OTURMA DÜZLEMİNDEN KURŞUN UZUNLUĞU
(Bulk Pack and is + 1mm when < 10mm, otherwise is nominal)
| mm | 5 | 10 | 15 | 20 | 25 |
| Kodlamak | 050 | 100 | 150 | 200 | 250 |
KURŞUN STİLİ
| Kodlamak | Stil |
| S | Dümdüz |
| K | Kink-In (Uzak Dur) |
| F | Form Out** |
| BEN | Form In** |
** For Bulk packaging with formed leads, add an additional 3 digit lead spacing code at end of part number.
MAKSİMUM BOYUTLAR (mm)
| K . V. | 1 0 0 V D C ( 2 A ) | 2 5 0 V D C ( 2 E ) | 4 0 0 V D C ( 2 G ) / 4 5 0 V D C ( 2 K ) | 6 3 0 V D C ( 2 J ) | |||||||||||||||||
| mF | C o d e | K | H | T | P | d Φ | K | H | T | P | d Φ | K | H | T | P | d Φ | K | H | T | P | d Φ |
| 0 .0 1 | 1 0 3 | 13 .0 | 8 .0 | 5.0 | 10 .0 | 0 .6 | |||||||||||||||
| 0 .0 1 2 | 1 2 3 | 13 .0 | 8 .5 | 5.0 | 10 .0 | 0 .6 | |||||||||||||||
| 0 .0 1 5 | 1 5 3 | 10 .5 | 8.0 | 4 .5 | 7.5 | 0 .6 | 13 .0 | 9 .5 | 5.5 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 1 8 | 1 8 3 | 10 .5 | 8.5 | 5 .0 | 7.5 | 0 .6 | 13 .0 | 11 .0 | 5.5 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 2 2 | 2 2 3 | 10 .5 | 8.5 | 5 .0 | 7.5 | 0 .6 | 13 .0 | 11 .5 | 6.0 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 2 7 | 2 7 3 | 10 .5 | 9.0 | 5 .5 | 7.5 | 0 .6 | 13 .0 | 12 .0 | 6.5 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 3 3 | 3 3 3 | 10 .5 | 9.5 | 6 .0 | 7.5 | 0 .6 | 13 .0 | 12 .5 | 7.0 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 3 9 | 3 9 3 | 10 .5 | 8 .0 | 4 .0 | 7 .5 | 0 .6 | 13 .0 | 8.5 | 4 .5 | 10 .0 | 0 .6 | 13 .0 | 14 .0 | 7.0 | 10 .0 | 0 .6 | |||||
| 0 .0 4 7 | 4 7 3 | 10 .5 | 8 .0 | 4 .5 | 7 .5 | 0 .6 | 9.5 | 7.5 | 4 .0 | 7.5 | 0 .6 | 13 .0 | 9 .0 | 5 .5 | 10 .0 | 0 .6 | |||||
| 13 .0 | 9.0 | 5 .0 | 10 .0 | 0 .6 | |||||||||||||||||
| 0 .0 5 6 | 5 6 3 | 10 .5 | 8 .5 | 5 .0 | 7 .5 | 0 .6 | 13 .0 | 9.5 | 5 .5 | 10 .0 | 0 .6 | 18 .5 | 11 .0 | 5.5 | 15 .0 | 0 .8 | |||||
| 0 .0 6 8 | 6 8 3 | 10 .5 | 8 .5 | 5 .0 | 7 .5 | 0 .6 | 13 .0 | 11 .0 | 5 .5 | 10 .0 | 0 .6 | 18 .5 | 11 .5 | 6.0 | 15 .0 | 0 .8 | |||||
| 0 .0 8 2 | 8 2 3 | 10 .5 | 9 .5 | 5 .5 | 7 .5 | 0 .6 | 13 .0 | 11 .5 | 5 .5 | 10 .0 | 0 .6 | 18 .5 | 12 .0 | 6.5 | 15 .0 | 0 .8 | |||||
| 0 .1 | 1 0 4 | 10 .5 | 7 .5 | 4.0 | 7 .5 | 0 .6 | 10 .5 | 10 .0 | 6 .0 | 7 .5 | 0 .6 | 12 .0 | 9.0 | 5 .0 | 10 .0 | 0 .6 | 18 .5 | 12 .0 | 6.0 | 15 .0 | 0 .8 |
| 0 .1 2 | 1 2 4 | 10 .5 | 7 .5 | 4.0 | 7 .5 | 0 .6 | 10 .5 | 10 .5 | 6 .5 | 7 .5 | 0 .6 | 18 .5 | 10 .5 | 5 .0 | 15 .0 | 0 .8 | 18 .5 | 14 .5 | 7.0 | 15 .0 | 0 .8 |
| 0 .1 5 | 1 5 4 | 10 .5 | 8 .0 | 4.5 | 7 .5 | 0 .6 | 10 .5 | 11 .0 | 7 .0 | 7 .5 | 0 .6 | 18 .5 | 11 .5 | 5 .5 | 15 .0 | 0 .8 | 18 .5 | 15 .5 | 8.0 | 15 .0 | 0 .8 |
| 0 .1 8 | 1 8 4 | 10 .5 | 8 .5 | 5.0 | 7 .5 | 0 .6 | 13 .0 | 9 .0 | 4 .5 | 10 .0 | 0 .6 | 18 .5 | 12 .0 | 6 .0 | 15 .0 | 0 .8 | 18 .5 | 16 .0 | 8.5 | 15 .0 | 0 .8 |
| 0 .2 2 | 2 2 4 | 10 .5 | 8 .5 | 5 .0 | 7 .5 | 0 .6 | 10 .3 | 11 .0 | 6 .1 | 7 .5 | 0 .6 | 11 .3 | 4.3 | 7 .0 | 10 .0 | 0 .8 | 11 .3 | 11 .3 | 7.0 | 10 .0 | 0 .6 |
| 13 .0 | 11 .0 | 5 .0 | 10 .0 | 0 .6 | 18 .5 | 13 .5 | 6 .0 | 15 .0 | 0 .8 | 18 .5 | 16 .5 | 9.0 | 15 .0 | 0 .8 | |||||||
| 0 .2 7 | 2 7 4 | 10 .5 | 9 .5 | 5.5 | 7 .5 | 0 .6 | 13 .0 | 11 .5 | 6 .0 | 10 .0 | 0 .6 | 18 .5 | 14 .0 | 7 .0 | 15 .0 | 0 .8 | 26 .5 | 16 .5 | 7.5 | 22 .5 | 0 .8 |
| 0 .3 3 | 3 3 4 | 10 .5 | 10 .0 | 6 .0 | 7 .5 | 0 .6 | 12 .0 | 12 .0 | 6 .5 | 7 .5 | 0 .6 | 12 .0 | 12 .0 | 7 .5 | 10 .0 | 0 .6 | 26 .5 | 17 .0 | 8 .5 | 22 .5 | 0 .8 |
| 13 .0 | 12 .0 | 6 .5 | 10 .0 | 0 .6 | 18 .5 | 15 .0 | 7 .5 | 15 .0 | 0 .8 | ||||||||||||
| 0 .3 9 | 3 9 4 | 10 .5 | 10 .5 | 6.0 | 7 .5 | 0 .6 | 18 .0 | 9 .0 | 5 .0 | 15 .0 | 0 .6 | 18 .5 | 15 .5 | 8 .5 | 15 .0 | 0 .8 | 26 .5 | 17 .0 | 9.0 | 22 .5 | 0 .8 |
| 0 .4 7 | 4 7 4 | 10 .5 | 12 .0 | 6.0 | 7 .5 | 0 .6 | 18 .5 | 13 .0 | 5 .5 | 15 .0 | 0 .8 | 18 .5 | 17 .5 | 8 .5 | 15 .0 | 0 .8 | 26 .5 | 18 .0 | 10 .0 | 22 .5 | 0 .8 |
| 0 .5 6 | 5 6 4 | 13 .0 | 11 .0 | 5.5 | 10 .0 | 0 .6 | 18 .5 | 13 .0 | 6 .0 | 15 .0 | 0 .8 | 26 .0 | 16 .0 | 7 .5 | 22 .5 | 0 .8 | 26 .5 | 18 .0 | 11 .0 | 22 .5 | 0 .8 |
| 0 .6 8 | 6 8 4 | 13 .0 | 11 .5 | 6.0 | 10 .0 | 0 .6 | 18 .5 | 13 .5 | 6 .0 | 15 .0 | 0 .8 | 26 .0 | 17 .0 | 8 .0 | 22 .5 | 0 .8 | 26 .0 | 21 .5 | 12 .5 | 22 .5 | 0 .8 |
| 0 .8 2 | 8 2 4 | 13 .0 | 13 .0 | 6.0 | 10 .0 | 0 .6 | 18 .5 | 14 .0 | 7 .0 | 15 .0 | 0 .8 | 26 .0 | 17 .5 | 9 .0 | 22 .5 | 0 .8 | 31 .0 | 21 .0 | 12 .0 | 27 .5 | 0 .8 |
| 1 | 1 0 5 | 13 .0 | 14 .0 | 6.5 | 10 .0 | 0 .6 | 18 .5 | 15 .0 | 8 .5 | 15 .0 | 0 .8 | 26 .0 | 18 .5 | 1 0 .0 | 22 .5 | 0 .8 | 31 .0 | 22 .0 | 13 .5 | 27 .5 | 0 .8 |
| 1 .2 | 1 2 5 | 18 .5 | 12 .5 | 5.5 | 15 .0 | 0 .8 | 18 .5 | 15 .5 | 8 .5 | 15 .0 | 0 .8 | 26 .0 | 20 .0 | 1 1 .0 | 22 .5 | 0 .8 | 31 .0 | 23 .5 | 15 .0 | 27 .5 | 0 .8 |
| 1 .5 | 1 5 5 | 18 .5 | 13 .5 | 6.0 | 15 .0 | 0 .8 | 18 .5 | 16 .5 | 9 .5 | 15 .0 | 0 .8 | 31 .0 | 19 .5 | 1 1 .0 | 27 .5 | 0 .8 | 31 .0 | 26 .5 | 16 .0 | 27 .5 | 0 .8 |
| 1 .8 | 1 8 5 | 18 .5 | 14 .0 | 6.5 | 15 .0 | 0 .8 | 26 .0 | 16 .0 | 7 .5 | 22 .5 | 0 .8 | 31 .0 | 21 .0 | 1 2 .0 | 27 .5 | 0 .8 | 31 .0 | 28 .0 | 18 .0 | 27 .5 | 0 .8 |
| 2 .2 | 2 2 5 | 18 .5 | 15 .0 | 7.0 | 15 .0 | 0 .8 | 26 .0 | 17 .0 | 8 .5 | 22 .5 | 0 .8 | 31 .0 | 23 .5 | 1 3 .0 | 27 .5 | 0 .8 | 31 .0 | 30 .5 | 20 .0 | 27 .5 | 0 .8 |
| 2 .7 | 2 7 5 | 18 .5 | 16 .0 | 7.5 | 15 .0 | 0 .8 | 26 .0 | 18 .0 | 9 .5 | 22 .5 | 0 .8 | ||||||||||
| 3 .3 | 3 3 5 | 18 .5 | 16 .5 | 8.5 | 15 .0 | 0 .8 | 26 .0 | 19 .0 | 10 .5 | 22 .5 | 0 .8 | ||||||||||
| 3 .9 | 3 9 5 | 26 .0 | 16 .0 | 7.0 | 22 .5 | 0 .8 | 26 .0 | 21 .5 | 10 .5 | 22 .5 | 0 .8 | ||||||||||
| 4 .7 | 4 7 5 | 26 .0 | 17 .0 | 7.5 | 22 .5 | 0 .8 | 26 .0 | 22 .0 | 12 .0 | 22 .5 | 0 .8 | ||||||||||
| 5 .6 | 5 6 5 | 26 .0 | 17 .5 | 8.0 | 22 .5 | 0 .8 | 31 .0 | 22 .0 | 12 .0 | 27 .5 | 0 .8 | ||||||||||
| 6 .8 | 6 8 5 | 26 .0 | 18 .5 | 9.0 | 22 .5 | 0 .8 | 31 .0 | 23 .5 | 13 .0 | 27 .5 | 0 .8 | ||||||||||
| 8 .2 | 8 2 5 | 26 .0 | 20 .0 | 10 .0 | 22 .5 | 0 .8 | 31 .0 | 25 .0 | 14 .5 | 27 .5 | 0 .8 | ||||||||||
| 1 0 | 1 0 6 | 26 .0 | 21 .0 | 11 .5 | 22 .5 | 0 .8 | 31 .0 | 26 .5 | 16 .5 | 27 .5 | 0 .8 | ||||||||||

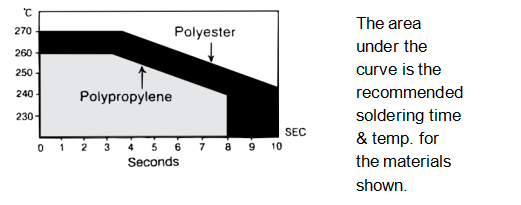

Lehimleme
RADYAL BANTLAMA KOD ŞEMASI
Spesifikasyonlar
| Tanım |
Mektup |
Boyut (mm) | |||
| RT2 | RT3 | RT4 | Tol. | ||
| Kurşun Tel Çapı | D | 0.5 / 0.6 | 0.6 | 0.6 / 0.8 | + 0.05 |
| Bant Aralığı | P | 12.7 | 12.7 | 25.4 | + 1 |
| Feed Hole Pitch | PO | 12.7 | 12.7 | 12.7 | + 0.2 |
| Kurşun Telin Merkezlenmesi | P1 | 2.6 / 3.75 | 7.7 | 5.2 | + 0.7 |
| Vücudun Merkezlenmesi | P2 | 6.35 | 12.7 | 12.7 | + 1.3 |
| Kurşun Aralığı (Saha) | F | 7.5 | 10 | 15 | + 0.6; -0.1 |
| Bileşen Hizalaması | Δh | 0 | 0 | 0 | + 2 |
| Componenet'in Bant Merkezinden Yüksekliği | H | 18.5 | 18.5 | 18.5 | + 0.5 |
| Taşıyıcı Bant Genişliği | K | 18 | 18 | 18 | + 1; -0.5 |
| Bant Genişliğini Basılı Tut | WO | 6 | 9 | 10 | Min. |
| Delik Konumu | W1 | 9 | 9 | 9 | + 0.5 |
| Bant Konumunu Basılı Tut | W2 | 3 | 3 | 3 | Maksimum |
| Besleme Deliği Çapı | Yapmak | 4 | 4 | 4 | + 0.2 |
| Bant Kalınlığı | T | 0.5 | 0.5 | 0.5 | + 0.2 |
| Figür | incir | 1.2 veya 3 | 4 | 4 | |
Açıklama: *Toplamda 1 mm'den az birikmiş adım payı 20 sahalar.
*Sürekli boş bileşen daha az 3 ardışık parçalar.
*Bir makaradaki toplam boş değerden az 1%.
