Seramik disk kıvılcım gaz kapasitörü | CCD

ÖZELLİKLER

• Limited values
• Designed especially for spark gap application

Boyutlar (mm) maksimum

Kapak	Kodlamak	Gerilim (V)	Kurşun Aralığı (LS)	Çap (D)	Length L	Kalınlık (T)
0.75pF	R75	1KV 1.5KV 2KV	6.35	9	13	6.35
.001uF	102	2KV	9.50	12	26	6.35
.01uF	103	1.5KV 2KV 2.5KV	9.50	20	26	6.35
.02uF	203	1KV	9.50	24	27	6.35



ELEKTRİKSEL ÖZELLİKLER

Teknik Veriler	Durum	Şartname
Kapasitans	Measured at 1KHz 1VRMS at 25℃	0.75pF ~ 0.02μF
Dissipation Factor tan δ		2.5% maksimum
Kapsülleme	Standart	Fenolik Balmumu
Yalıtım Direnci	Measured at 500Vdc	7500MΩ or R x C > 75Ω x F
Çalışma sıcaklığı	Z5U Y5P	+10℃ ~ +85℃ -30℃ ~ +85℃
Available Tolerance		± (K), ±% 20 (M) Guarantied max value (sen) Guarantied min value (V)





Parça numarası örneği

SICAKLIK KATSAYISI KODU

Kodlamak	ÇED Kodu	Sıcaklık Özellikleri
M	Z5U	+22 ile -56% +10°C ila +85°C
P	Y5P	±10% -30°C to +85°C



VOLTAGE CODE EXAMPLE

Kodlamak	3A	3R
WVDC	1KV	1.5KV



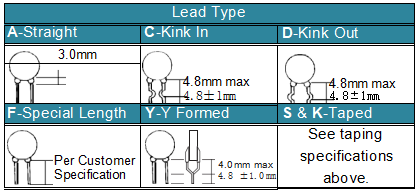

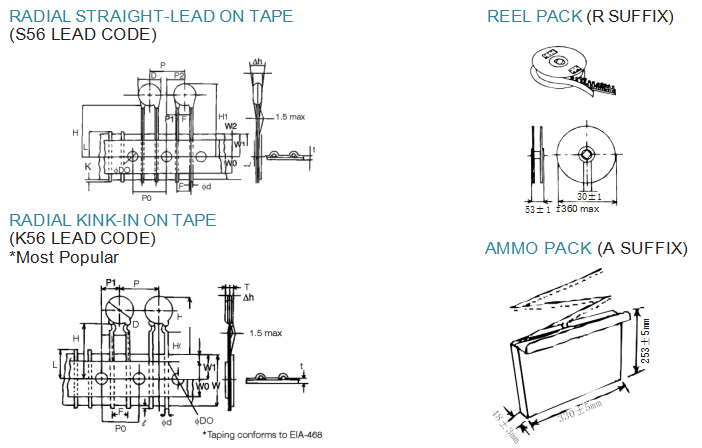

LEAD CODES FOR BULK PACK (CERAMIC DISC ONLY)

Kodlamak	Boyutlar
D	11.0 maksimum
D	0.6 ±0,05
P	12.7 ±1,0
P0	12.7 ±0,3
P1	3.85 ±0,7
P2	6.35 ±1,3
F	5.0 +0.8 -0.2
Dh	0 ±2,0
K	18.0 +1.0 -0.5
W1	9.0 +0.75 -0.5
W2	3.0 maksimum
H	18.0 +3.0 -0
H0	16.0 ±0,5
H1	32.25 maksimum
K	1.0 maksimum
D0	4.0 ±0,2
T	0.7 ±0,2
L	11.0 maksimum

GİRİİŞ
Spark Gap capacitors are designed to
provide a reliable discharge path for stray,
transient overvoltages and static voltage
build-up. The construction of spark gap may
enable the circuit designer to reduce costs by
specifying lower voltage components.
