Umum Porpuse Metallized Polyaster Film Capacitor | CDAB
Siri CDAB dibina dengan dielektrik filem poliester berlogam, plumbum tembaga dan salutan serbuk resin epoksi. Mereka sesuai untuk menyekat, gandingan, penyahgandingan, penapisan, litar pemasaan pintasan dan sesuai untuk digunakan dalam peralatan telekomunikasi, peralatan pemprosesan data, alat perindustrian, sistem kawalan automatik dan peralatan elektronik am yang lain.
Ciri -ciri
◆Julat Suhu: -40~115℃
◆ Julat Kapasitans: 0.01~10uF
◆ Toleransi Kapasitans: 5% 10% 20%
◆ Voltan Ternilai 100VDC ~ 630VDC
Contoh nombor bahagian
TOLERANSI
| Kod | Toleransi |
| J | + 5% |
| K | + 10% |
| M | + 20% |
KOD KAPASITAN
| F | 0.01 | 0.047 | 0.1 | 0.47 | 1.0 | 4.7 | 10 |
| pF | 10000 | 47000 | 100000 | 470000 | – | – | – |
| Kod | 103 | 473 | 104 | 474 | 105 | 475 | 106 |
VOLTAN KADAR
| WV | 100 | 250 | 400 | 630 |
| Kod | 2A | 2E | 2G | 2J |
CONTOH GAYA PIMPIN
PEMBUNGKUSAN
| Meth | od | Pukal | peluru | kekili |
| Kod | B | A | R | |
KOD PITA (Jarak plumbum pada pita, jika dirakam)
| Jarak | 5.0mm | 7.5mm | 10mm | 15mm |
| Pembungkusan | A atau R | A atau R | A | A |
| Kod | RT1 | RT2 | RT3 | RT4 |
JARI PLUMBUM JARI
* Ruang plumbum ialah ruang plumbum asal lurus yang tidak terbentuk
| mm | 5.0 | 7.5 | 10 | 15 | 22.5 | 27.5 |
| Kod | 050 | 075 | 100 | 150 | 225 | 275 |
PANJANG PIMPIN DARI TEMPAT DUDUK
(Pek Pukal dan adalah + 1mm bila < 10mm, sebaliknya adalah nominal)
| mm | 5 | 10 | 15 | 20 | 25 |
| Kod | 050 | 100 | 150 | 200 | 250 |
GAYA PIMPIN
| Kod | Gaya |
| S | Lurus |
| K | Kink-In (Berdiri) |
| F | Borang Keluar** |
| saya | Borang Masuk** |
** Untuk pembungkusan pukal dengan petunjuk terbentuk, tambah tambahan 3 kod jarak plumbum digit di hujung nombor bahagian.
DIMENSI MAKSIMUM (mm)
| W . V. | 1 0 0 V D C ( 2 A ) | 2 5 0 V D C ( 2 E ) | 4 0 0 V D C ( 2 G ) / 4 5 0 V D C ( 2 W ) | 6 3 0 V D C ( 2 J ) | |||||||||||||||||
| m F | C o d e | W | H | T | P | d F | W | H | T | P | d F | W | H | T | P | d F | W | H | T | P | d F |
| 0 .0 1 | 1 0 3 | 13 .0 | 8 .0 | 5.0 | 10 .0 | 0 .6 | |||||||||||||||
| 0 .0 1 2 | 1 2 3 | 13 .0 | 8 .5 | 5.0 | 10 .0 | 0 .6 | |||||||||||||||
| 0 .0 1 5 | 1 5 3 | 10 .5 | 8.0 | 4 .5 | 7.5 | 0 .6 | 13 .0 | 9 .5 | 5.5 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 1 8 | 1 8 3 | 10 .5 | 8.5 | 5 .0 | 7.5 | 0 .6 | 13 .0 | 11 .0 | 5.5 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 2 2 | 2 2 3 | 10 .5 | 8.5 | 5 .0 | 7.5 | 0 .6 | 13 .0 | 11 .5 | 6.0 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 2 7 | 2 7 3 | 10 .5 | 9.0 | 5 .5 | 7.5 | 0 .6 | 13 .0 | 12 .0 | 6.5 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 3 3 | 3 3 3 | 10 .5 | 9.5 | 6 .0 | 7.5 | 0 .6 | 13 .0 | 12 .5 | 7.0 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 3 9 | 3 9 3 | 10 .5 | 8 .0 | 4 .0 | 7 .5 | 0 .6 | 13 .0 | 8.5 | 4 .5 | 10 .0 | 0 .6 | 13 .0 | 14 .0 | 7.0 | 10 .0 | 0 .6 | |||||
| 0 .0 4 7 | 4 7 3 | 10 .5 | 8 .0 | 4 .5 | 7 .5 | 0 .6 | 9.5 | 7.5 | 4 .0 | 7.5 | 0 .6 | 13 .0 | 9 .0 | 5 .5 | 10 .0 | 0 .6 | |||||
| 13 .0 | 9.0 | 5 .0 | 10 .0 | 0 .6 | |||||||||||||||||
| 0 .0 5 6 | 5 6 3 | 10 .5 | 8 .5 | 5 .0 | 7 .5 | 0 .6 | 13 .0 | 9.5 | 5 .5 | 10 .0 | 0 .6 | 18 .5 | 11 .0 | 5.5 | 15 .0 | 0 .8 | |||||
| 0 .0 6 8 | 6 8 3 | 10 .5 | 8 .5 | 5 .0 | 7 .5 | 0 .6 | 13 .0 | 11 .0 | 5 .5 | 10 .0 | 0 .6 | 18 .5 | 11 .5 | 6.0 | 15 .0 | 0 .8 | |||||
| 0 .0 8 2 | 8 2 3 | 10 .5 | 9 .5 | 5 .5 | 7 .5 | 0 .6 | 13 .0 | 11 .5 | 5 .5 | 10 .0 | 0 .6 | 18 .5 | 12 .0 | 6.5 | 15 .0 | 0 .8 | |||||
| 0 .1 | 1 0 4 | 10 .5 | 7 .5 | 4.0 | 7 .5 | 0 .6 | 10 .5 | 10 .0 | 6 .0 | 7 .5 | 0 .6 | 12 .0 | 9.0 | 5 .0 | 10 .0 | 0 .6 | 18 .5 | 12 .0 | 6.0 | 15 .0 | 0 .8 |
| 0 .1 2 | 1 2 4 | 10 .5 | 7 .5 | 4.0 | 7 .5 | 0 .6 | 10 .5 | 10 .5 | 6 .5 | 7 .5 | 0 .6 | 18 .5 | 10 .5 | 5 .0 | 15 .0 | 0 .8 | 18 .5 | 14 .5 | 7.0 | 15 .0 | 0 .8 |
| 0 .1 5 | 1 5 4 | 10 .5 | 8 .0 | 4.5 | 7 .5 | 0 .6 | 10 .5 | 11 .0 | 7 .0 | 7 .5 | 0 .6 | 18 .5 | 11 .5 | 5 .5 | 15 .0 | 0 .8 | 18 .5 | 15 .5 | 8.0 | 15 .0 | 0 .8 |
| 0 .1 8 | 1 8 4 | 10 .5 | 8 .5 | 5.0 | 7 .5 | 0 .6 | 13 .0 | 9 .0 | 4 .5 | 10 .0 | 0 .6 | 18 .5 | 12 .0 | 6 .0 | 15 .0 | 0 .8 | 18 .5 | 16 .0 | 8.5 | 15 .0 | 0 .8 |
| 0 .2 2 | 2 2 4 | 10 .5 | 8 .5 | 5 .0 | 7 .5 | 0 .6 | 10 .3 | 11 .0 | 6 .1 | 7 .5 | 0 .6 | 11 .3 | 4.3 | 7 .0 | 10 .0 | 0 .8 | 11 .3 | 11 .3 | 7.0 | 10 .0 | 0 .6 |
| 13 .0 | 11 .0 | 5 .0 | 10 .0 | 0 .6 | 18 .5 | 13 .5 | 6 .0 | 15 .0 | 0 .8 | 18 .5 | 16 .5 | 9.0 | 15 .0 | 0 .8 | |||||||
| 0 .2 7 | 2 7 4 | 10 .5 | 9 .5 | 5.5 | 7 .5 | 0 .6 | 13 .0 | 11 .5 | 6 .0 | 10 .0 | 0 .6 | 18 .5 | 14 .0 | 7 .0 | 15 .0 | 0 .8 | 26 .5 | 16 .5 | 7.5 | 22 .5 | 0 .8 |
| 0 .3 3 | 3 3 4 | 10 .5 | 10 .0 | 6 .0 | 7 .5 | 0 .6 | 12 .0 | 12 .0 | 6 .5 | 7 .5 | 0 .6 | 12 .0 | 12 .0 | 7 .5 | 10 .0 | 0 .6 | 26 .5 | 17 .0 | 8 .5 | 22 .5 | 0 .8 |
| 13 .0 | 12 .0 | 6 .5 | 10 .0 | 0 .6 | 18 .5 | 15 .0 | 7 .5 | 15 .0 | 0 .8 | ||||||||||||
| 0 .3 9 | 3 9 4 | 10 .5 | 10 .5 | 6.0 | 7 .5 | 0 .6 | 18 .0 | 9 .0 | 5 .0 | 15 .0 | 0 .6 | 18 .5 | 15 .5 | 8 .5 | 15 .0 | 0 .8 | 26 .5 | 17 .0 | 9.0 | 22 .5 | 0 .8 |
| 0 .4 7 | 4 7 4 | 10 .5 | 12 .0 | 6.0 | 7 .5 | 0 .6 | 18 .5 | 13 .0 | 5 .5 | 15 .0 | 0 .8 | 18 .5 | 17 .5 | 8 .5 | 15 .0 | 0 .8 | 26 .5 | 18 .0 | 10 .0 | 22 .5 | 0 .8 |
| 0 .5 6 | 5 6 4 | 13 .0 | 11 .0 | 5.5 | 10 .0 | 0 .6 | 18 .5 | 13 .0 | 6 .0 | 15 .0 | 0 .8 | 26 .0 | 16 .0 | 7 .5 | 22 .5 | 0 .8 | 26 .5 | 18 .0 | 11 .0 | 22 .5 | 0 .8 |
| 0 .6 8 | 6 8 4 | 13 .0 | 11 .5 | 6.0 | 10 .0 | 0 .6 | 18 .5 | 13 .5 | 6 .0 | 15 .0 | 0 .8 | 26 .0 | 17 .0 | 8 .0 | 22 .5 | 0 .8 | 26 .0 | 21 .5 | 12 .5 | 22 .5 | 0 .8 |
| 0 .8 2 | 8 2 4 | 13 .0 | 13 .0 | 6.0 | 10 .0 | 0 .6 | 18 .5 | 14 .0 | 7 .0 | 15 .0 | 0 .8 | 26 .0 | 17 .5 | 9 .0 | 22 .5 | 0 .8 | 31 .0 | 21 .0 | 12 .0 | 27 .5 | 0 .8 |
| 1 | 1 0 5 | 13 .0 | 14 .0 | 6.5 | 10 .0 | 0 .6 | 18 .5 | 15 .0 | 8 .5 | 15 .0 | 0 .8 | 26 .0 | 18 .5 | 1 0 .0 | 22 .5 | 0 .8 | 31 .0 | 22 .0 | 13 .5 | 27 .5 | 0 .8 |
| 1 .2 | 1 2 5 | 18 .5 | 12 .5 | 5.5 | 15 .0 | 0 .8 | 18 .5 | 15 .5 | 8 .5 | 15 .0 | 0 .8 | 26 .0 | 20 .0 | 1 1 .0 | 22 .5 | 0 .8 | 31 .0 | 23 .5 | 15 .0 | 27 .5 | 0 .8 |
| 1 .5 | 1 5 5 | 18 .5 | 13 .5 | 6.0 | 15 .0 | 0 .8 | 18 .5 | 16 .5 | 9 .5 | 15 .0 | 0 .8 | 31 .0 | 19 .5 | 1 1 .0 | 27 .5 | 0 .8 | 31 .0 | 26 .5 | 16 .0 | 27 .5 | 0 .8 |
| 1 .8 | 1 8 5 | 18 .5 | 14 .0 | 6.5 | 15 .0 | 0 .8 | 26 .0 | 16 .0 | 7 .5 | 22 .5 | 0 .8 | 31 .0 | 21 .0 | 1 2 .0 | 27 .5 | 0 .8 | 31 .0 | 28 .0 | 18 .0 | 27 .5 | 0 .8 |
| 2 .2 | 2 2 5 | 18 .5 | 15 .0 | 7.0 | 15 .0 | 0 .8 | 26 .0 | 17 .0 | 8 .5 | 22 .5 | 0 .8 | 31 .0 | 23 .5 | 1 3 .0 | 27 .5 | 0 .8 | 31 .0 | 30 .5 | 20 .0 | 27 .5 | 0 .8 |
| 2 .7 | 2 7 5 | 18 .5 | 16 .0 | 7.5 | 15 .0 | 0 .8 | 26 .0 | 18 .0 | 9 .5 | 22 .5 | 0 .8 | ||||||||||
| 3 .3 | 3 3 5 | 18 .5 | 16 .5 | 8.5 | 15 .0 | 0 .8 | 26 .0 | 19 .0 | 10 .5 | 22 .5 | 0 .8 | ||||||||||
| 3 .9 | 3 9 5 | 26 .0 | 16 .0 | 7.0 | 22 .5 | 0 .8 | 26 .0 | 21 .5 | 10 .5 | 22 .5 | 0 .8 | ||||||||||
| 4 .7 | 4 7 5 | 26 .0 | 17 .0 | 7.5 | 22 .5 | 0 .8 | 26 .0 | 22 .0 | 12 .0 | 22 .5 | 0 .8 | ||||||||||
| 5 .6 | 5 6 5 | 26 .0 | 17 .5 | 8.0 | 22 .5 | 0 .8 | 31 .0 | 22 .0 | 12 .0 | 27 .5 | 0 .8 | ||||||||||
| 6 .8 | 6 8 5 | 26 .0 | 18 .5 | 9.0 | 22 .5 | 0 .8 | 31 .0 | 23 .5 | 13 .0 | 27 .5 | 0 .8 | ||||||||||
| 8 .2 | 8 2 5 | 26 .0 | 20 .0 | 10 .0 | 22 .5 | 0 .8 | 31 .0 | 25 .0 | 14 .5 | 27 .5 | 0 .8 | ||||||||||
| 1 0 | 1 0 6 | 26 .0 | 21 .0 | 11 .5 | 22 .5 | 0 .8 | 31 .0 | 26 .5 | 16 .5 | 27 .5 | 0 .8 | ||||||||||

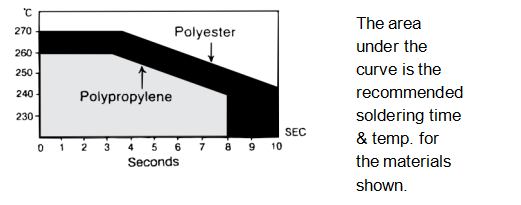

PEMATERIAN
GAMBARAJAH KOD TAPING JARIAN
Spesifikasi
| Penerangan |
surat |
Dimensi (mm) | |||
| RT2 | RT3 | RT4 | Tol. | ||
| Diameter Wayar Plumbum | d | 0.5 / 0.6 | 0.6 | 0.6 / 0.8 | + 0.05 |
| Pitch Pita | P | 12.7 | 12.7 | 25.4 | + 1 |
| Padang Lubang Suapan | PO | 12.7 | 12.7 | 12.7 | + 0.2 |
| Pemusatan Kawat Plumbum | P1 | 2.6 / 3.75 | 7.7 | 5.2 | + 0.7 |
| Pemusatan Badan | P2 | 6.35 | 12.7 | 12.7 | + 1.3 |
| Jarak utama (Pitch) | F | 7.5 | 10 | 15 | + 0.6; -0.1 |
| Penjajaran Komponen | Δh | 0 | 0 | 0 | + 2 |
| Ketinggian Componenet dari Pusat Pita | H | 18.5 | 18.5 | 18.5 | + 0.5 |
| Lebar Pita Pembawa | W | 18 | 18 | 18 | + 1; -0.5 |
| Tahan Lebar Pita | WO | 6 | 9 | 10 | Min |
| Kedudukan Lubang | W1 | 9 | 9 | 9 | + 0.5 |
| Tahan Kedudukan Pita | W2 | 3 | 3 | 3 | Maks |
| Diameter Lubang Suapan | buat | 4 | 4 | 4 | + 0.2 |
| Ketebalan Pita | t | 0.5 | 0.5 | 0.5 | + 0.2 |
| Rajah | ara | 1.2 atau 3 | 4 | 4 | |
Teguran: *Elaun pic terkumpul kurang daripada 1mm pada jumlah 20 padang.
*Komponen kosong berterusan kurang daripada 3 kepingan berturut-turut.
*Jumlah kosong pada satu kekili kurang daripada 1%.
Pengenalan
Siri CDAB dibina dengan dielektrik filem poliester berlogam, plumbum tembaga dan salutan serbuk resin epoksi. Mereka sesuai untuk menyekat, gandingan, penyahgandingan, penapisan, litar pemasaan pintasan dan sesuai untuk digunakan dalam peralatan telekomunikasi, peralatan pemprosesan data, alat perindustrian, sistem kawalan automatik dan peralatan elektronik am yang lain.
