المحوري يقود مكثف فيلم البولي بروبيلين المعدني | بيضاوي مسطح | CDB
‧ Mainly used in instruments and the DC & AC circuit of the household equipment and acoustics system.
سمات
‧ CDEB is constructed with metallized polypropylene film as medium and electrode, ملفوفة ومختومة بالبلاستيك المقاوم للهب وراتنجات الايبوكسي, مع موثوقية عالية, مقاومة درجات الحرارة العالية, حجم صغير, سعة كبيرة وممتلكات جيدة للشفاء الذاتي.
‧ Mainly used in instruments and the DC & AC circuit of the household equipment and the fractional frequency circuit of acoustics system.

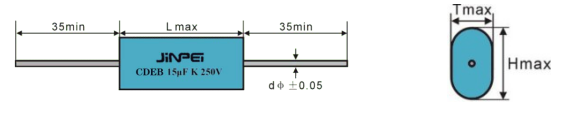

تحديد
| كاب | ل | ت | ح | د | ل | ت | ح | د | ل | ت | ح | د | ل | ت | ح | د | ل | ت | ح | د |
| 223 | 0.022 — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 16.0 | 7.5 | 10.5 | 0.6 |
| 333 | 0.033 — | — | — | — | — | — | — | — | — | — | — | — | 16.0 | 7.0 | 10 | 0.6 | 21.0 | 6.5 | 9.5 | 0.6 |
| 473 | 0.047 — | — | — | — | — | — | — | — | — | — | — | — | 16.0 | 8.5 | 12 | 0.8 | 21.0 | 7.5 | 12 | 0.6 |
| 683 | 0.068 — | — | — | — | — | — | — | — | — | — | — | — | 21.0 | 7.0 | 11.5 | 0.6 | 26 | 7.0 | 13 | 0.6 |
| 104 | 0.1 16.0 | 6.0 | 9.0 | 0.6 | 21.0 | 7.0 | 10.5 | 0.6 | 26.0 | 6.5 | 13 | 0.6 | 26 | 7.0 | 11.5 | 0.6 | 26 | 8.5 | 14.5 | 0.8 |
| 224 | 0.22 21.0 | 5.0 | 9.0 | 0.6 | 16.0 | 6.5 | 10.5 | 0.6 | 16.0 | 12.0 | 16 | 0.8 | 26 | 10.0 | 16 | 0.8 | 32 | 10.5 | 18 | 0.8 |
| 334 | 0.33 16.0 | 7.0 | 10.5 | 0.6 | 16.0 | 9.0 | 13.0 | 0.6 | 21.0 | 10.5 | 15 | 0.8 | 32 | 10.0 | 17.5 | 0.8 | 37.5 | 11.5 | 20 | 0.8 |
| 474 | 0.47 16.0 | 8.5 | 12.5 | 0.8 | 21.0 | 9.0 | 14.0 | 0.6 | 21.0 | 13.0 | 17 | 0.8 | 37.5 | 10.5 | 19.5 | 0.8 | 47.5 | 10.5 | 21 | 0.8 |
| 684 | 0.68 21.0 | 6.8 | 12.0 | 0.6 | 21.0 | 10.0 | 14.0 | 0.8 | 26 | 12.0 | 18 | 0.8 | 47.5 | 10.0 | 20.5 | 0.8 | 57.5 | 11.5 | 23.5 | 0.8 |
| 105 | 1.0 21.0 | 8.5 | 13.5 | 0.8 | 26 | 9.0 | 13.0 | 0.8 | 26 | 15.0 | 20.5 | 1.0 | 57.5 | 10.5 | 23 | 0.8 | 67.5 | 12.5 | 25 | 1.0 |
| 225 | 2.2 31 | 11.0 | 17.5 | 0.8 | 32 | 11.5 | 16.0 | 0.8 | 32 | 18.5 | 26.5 | 1.0 | 67.5 | 15.5 | 27.5 | 1.0 | 67.5 | 20.0 | 32.5 | 1.0 |
| 335 | 3.3 32 | 11.5 | 17.5 | 0.8 | 32 | 13.5 | 19.5 | 0.8 | 32 | 23.0 | 32.5 | 1.0 | 67.5 | 19.5 | 31.5 | 1.0 | 67.5 | 20.0 | 32.5 | 1.0 |
| 475 | 4.7 31 | 16.5 | 22.5 | 1.0 | 37.5 | 15.0 | 22.0 | 1.0 | 37.5 | 24.0 | 35 | 1.0 | 67.5 | 24.0 | 36.5 | 1.0 | — | — | — | — |
| 565 | 5.6 37.5 | 13.0 | 20.5 | 1.0 | 47.5 | 14.5 | 21.0 | 0.8 | 47.5 | 21.0 | 34 | 1.0 | — | — | — | — | — | — | — | — |
| 685 | 6.8 47.5 | 11.0 | 20.5 | 0.8 | 47.5 | 15.0 | 23.0 | 1.0 | 57.5 | 20.5 | 33.5 | 1.0 | — | — | — | — | — | — | — | — |
| 825 | 8.2 47.5 | 12.5 | 22.0 | 1.0 | 57.5 | 14.0 | 22.0 | 1.0 | 57.5 | 23.0 | 35.5 | 1.0 | — | — | — | — | — | — | — | — |
| 106 | 10.0 47.5 | 15.0 | 23.5 | 1.0 | 57.5 | 14.5 | 24.5 | 1.0 | 67.5 | 23.0 | 35.5 | 1.0 | — | — | — | — | — | — | — | — |
| 156 | 15.0 57.5 | 14.5 | 26.0 | 1.0 | 67.5 | 16.0 | 27.0 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — |
| 226 | 22.0 57.5 | 18.5 | 29.5 | 1.0 | 67.5 | 19.0 | 32.5 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — |
| 306 | 30.0 67.5 | 19.0 | 32.0 | 1.0 | 67.5 | 23.5 | 36.0 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — |
| 336 | 33.0 67.5 | 20.0 | 33.5 | 1.0 | 67.5 | 24.5 | 37.5 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — |
| 476 | 47.0 67.5 | 26.0 | 38.0 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
ملحوظة: تخضع المواصفات للتغيير دون إشعار. لمزيد من التفاصيل والتحديث, يرجى زيارة موقعنا على الويب.

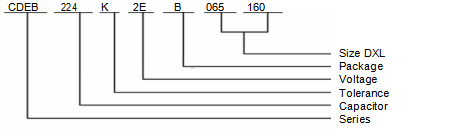

جزء رقم مثال
مقدمة
◆ CDEB is constructed with metallized polypropylene film asmedium and electrode, wrapped andsealed with flame-resistance plastic and epoxy resin, مع موثوقية عالية, مقاومة درجات الحرارة العالية, حجم صغير, large capacityand good self-healing property.
◆ Mainlyused in instruments and the DC &AC circuit of the household equipment and acoustics system.
