Metalizēta poliestera plēves kondensatora mini izmērs | Kompaktdisks
CDAF Series are constructed with metalized polyester film dielectric, vara svina un epoksīdsveķu pulvera pārklājums. Tie ir piemēroti bloķēšanai, sakabe, atsaistīšana, filtrēšana, apvedceļa laika noteikšanas shēma un ideāli piemērota lietošanai telekomunikāciju iekārtās, datu apstrādes iekārtas, rūpnieciskais instruments, automātiskās vadības sistēmas un citas vispārējās elektroniskās iekārtas.
Funkcijas
◆ Darba temp. Diapazons :-40°C ~ +125°C (Derates over 105°C)
◆ Kapacitātes diapazons:0.001~1.2uF
◆ Kapacitātes tolerance: J=5% K=10% M=20%
◆ Nominālais spriegums V R 85°C: 50V, 63V,100Vdc, 250Vdc, 400Vdc, 450Vdc, 630Vdc,1000Vdc
DAĻAS NUMURA PIEMĒRS
TOLERANCES
| Kods | Tolerance |
| Dž | ±5% |
| Kandids | ± 10% |
| M | ± 20% |
VADĪBAS STILA PIEMĒRI
KApacitātes kods
| F | 0.01 | 0.047 | 0.1 | 0.47 | 1.0 |
| pF | 10000 | 47000 | 100000 | 470000 | – |
| Kods | 103 | 473 | 104 | 474 | 105 |
NOMINĒJUMS SPRIEGUMS
| WV | 50 | 63 | 100 | 250 | 400 | 630 |
| Kods | 1H | 1Dž | 2Izšķirt | 2E | 2Gan | 2Dž |
IEPAKOJUMS
| Met | od | Lielapjoma | Munīcija | Spole |
| Kods | B | Izšķirt | R | |
VADĪBAS GARUMS NO SĒDĒJPLAKNES
(Lielapjoma iepakojums)
| mm | 5 | 10 | 15 | 20 | 25 |
| Kods | 050 | 100 | 150 | 200 | 250 |
LENTES KODS (Lentas atstatums no svina)
| Spacin | gan | 5mm |
| Iepakošana | A vai R | |
| Kods | RT1 (See Diagram) | |
SVIŅA STILS
| Kods | Stils |
| S | Taisni |
| Kandids | Kink-In (Stand Off) |
| F | Form Out |
| es | Veidlapa In |
** Lielapjoma iepakojumam ar izveidotiem vadiem, pievienot papildu 3 ciparu svina atstarpes kods daļas numura beigās.
MAKSIMĀLIE IZMĒRI (mm)
| W. V. | 50 / 63VDC (1H/1J) | 100VDC(2Izšķirt) | 250VDC(2E) | 400VDC(2Gan) | 630VDC (2Dž) | ||||||||||||||||||||
| ( μF) | code | W | H | T | P | d | W | H | T | P | d | W | H | T | P | d | W | H | T | P | d | W | H | P | d |
| 0.001 | 102 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 5 | 0.5 |
| 0.0022 | 122 | 6.5 | 6.5 3.5 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 5 | 0.5 | ||
| 0.0033 | 332 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 5 | 0.5 |
| 0.0047 | 472 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 5 | 0.5 |
| 0.0056 | 562 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | ||||
| 0.0068 | 682 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | ||||
| 0.0082 | 822 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | ||||
| 0.010 | 103 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | ||||
| 0.012 | 123 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | |||||||||
| 0.015 | 153 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | |||||||||
| 0.018 | 183 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | |||||||||
| 0.022 | 223 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | |||||||||
| 0.027 | 273 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 3.5 | 5 | 0.5 | |||||||||
| 0.033 | 333 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.039 | 393 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.047 | 473 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.056 | 563 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.068 | 683 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.082 | 823 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.1 | 104 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.12 | 124 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 10 | 5.0 | 5 | 0.5 | |||||||||
| 0.15 | 154 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 10 | 5.0 | 5 | 0.5 | |||||||||
| 0.18 | 184 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 10 | 6.0 | 5 | 0.5 | |||||||||
| 0.22 | 224 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 10 | 6.0 | 5 | 0.5 | |||||||||
| 0.27 | 274 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 10.5 | 7.0 | 5 | 0.5 | |||||||||
| 0.33 | 334 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 11 | 7.0 | 5 | 0.5 | |||||||||
| 0.39 | 394 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 12 | 8.0 | 5 | 0.5 | |||||||||
| 0.47 | 474 | 7.0 | 7.5 | 4.5 | 5 | 0.6 | 7.0 | 7.5 | 4.5 | 5 | 0.6 | 7.5 | 12 | 8.5 | 5 | 0.5 | |||||||||
| 0.56 | 564 | 7.0 | 8.5 | 5.0 | 5 | 0.6 | 7.0 | 8.5 | 5.0 | 5 | 0.6 | ||||||||||||||
| 0.68 | 684 | 7.0 | 8.5 | 5.0 | 5 | 0.6 | 7.0 | 8.5 | 5.0 | 5 | 0.6 | ||||||||||||||
| 1.0 | 824 | 7.0 | 8.5 | 5.0 | 5 | 0.6 | 7.0 | 10 | 6.0 | 5 | 0.6 | ||||||||||||||
| 1.5 | 155 | 7.0 | 10.0 | 6.5 | 5 | 0.5 | 7.0 | 10 | 6.0 | 5 | 0.6 | 17 | 15 | 7.0 | 15 | 0.8 | |||||||||
| 2.2 | 225 | 7.0 | 10.0 | 6.5 | 5 | 0.6 | 7.0 | 10.5 | 7.0 | 5 | 0.6 | 17 | 15.5 | 6.5 | 15 | 0.8 | |||||||||
IZPILDE
| Vienums | Metalized Polyester |
| Capacitance Drift | Cycled through the operating temperature range 2%. |
| Humidity Test | Will withstand the test of R.H. 95% at 40°C for 1000hrs. C < 5% DF < 1.2% UN > 10000MΩ |
| Load Test | Will withstand a testing voltage at 140% of W.V. for 1000hrs at 85°C. C < 5% DF < 1.2% UN > 5000MΩ |
| Lead Pull Test | Will withstand a pull of 1.5Kg applied axialy for 10 sekundes. |
|
Lead Bend Test |
Will sustain two cycles without breaking when attaching a load of 0.5Kg to the end of the lead and then rotating the capacitor 90º from the direction of lead egress. Then 180 in opposite direction, then back to the starting point. |
| Lodējamība | Immersed in molten solder (230 + 0.5 sec.) after testing, the wound lead and gap in the wound lead will be covered and filled by solder. Will be difficult to unwind byfinger. |
| Dielectric Strength | Shall withstand 200% vai 160% of rated voltage at 25°C for 1 minute with current limiting resistance of 1 Ak
/ V. |

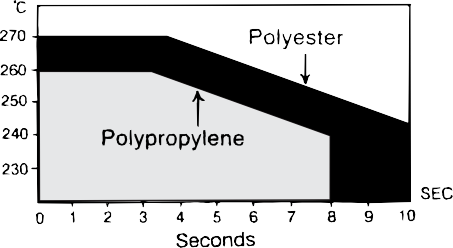

LODĒŠANA
Laukums zem līknes ir ieteicamais lodēšanas laiks & temp. parādītajiem materiāliem
RADIĀLĀ TEIPŠANA
SPECIFIKĀCIJAS
| Apraksts |
Vēstule |
Dimensija (mm) |
| RT1 | ||
| Svina stieples diametrs | d | 0.5 / 0.6 |
| Tapping Pitch | P | 12.7 |
| Padeves cauruma piķis | PO | 12.7 |
| Svina vada centrēšana | P1 | 3.85 |
| Ķermeņa centrēšana | P2 | 6.35 |
| Svina atstarpe (Piķis) | F | 5 |
| Komponentu izlīdzināšana | ∆h | 0 |
| Komponenta augstums no lentes centra | H | 18.5 |
| Nesēja lentes platums | W | 18 |
| Turiet nospiestu lentes platumu | WO | 6 |
| Cauruma pozīcija | W1 | 9 |
| Turiet nospiestu lentes pozīciju | W2 | 3 |
| Padeves cauruma diametrs | Dariet | 4 |
| Lentes biezums | t | 0.7 |
| attēls | att | 1 vai 2 |
Piezīmēt: *Pieļaujamais uzkrātais solis ir mazāks par 1 mm, summā 20 laukumi.
*Nepārtraukta tukša sastāvdaļa mazāka par 3 secīgi gabali.
*Kopā tukšs uz viena ruļļa mazāk nekā 1%.
IEVADS
CDAF Series are constructed with metalized polyester film dielectric, vara svina un epoksīdsveķu pulvera pārklājums. Tie ir piemēroti bloķēšanai, sakabe, atsaistīšana, filtrēšana, apvedceļa laika noteikšanas shēma un ideāli piemērota lietošanai telekomunikāciju iekārtās, datu apstrādes iekārtas, rūpnieciskais instruments, automātiskās vadības sistēmas un citas vispārējās elektroniskās iekārtas.
